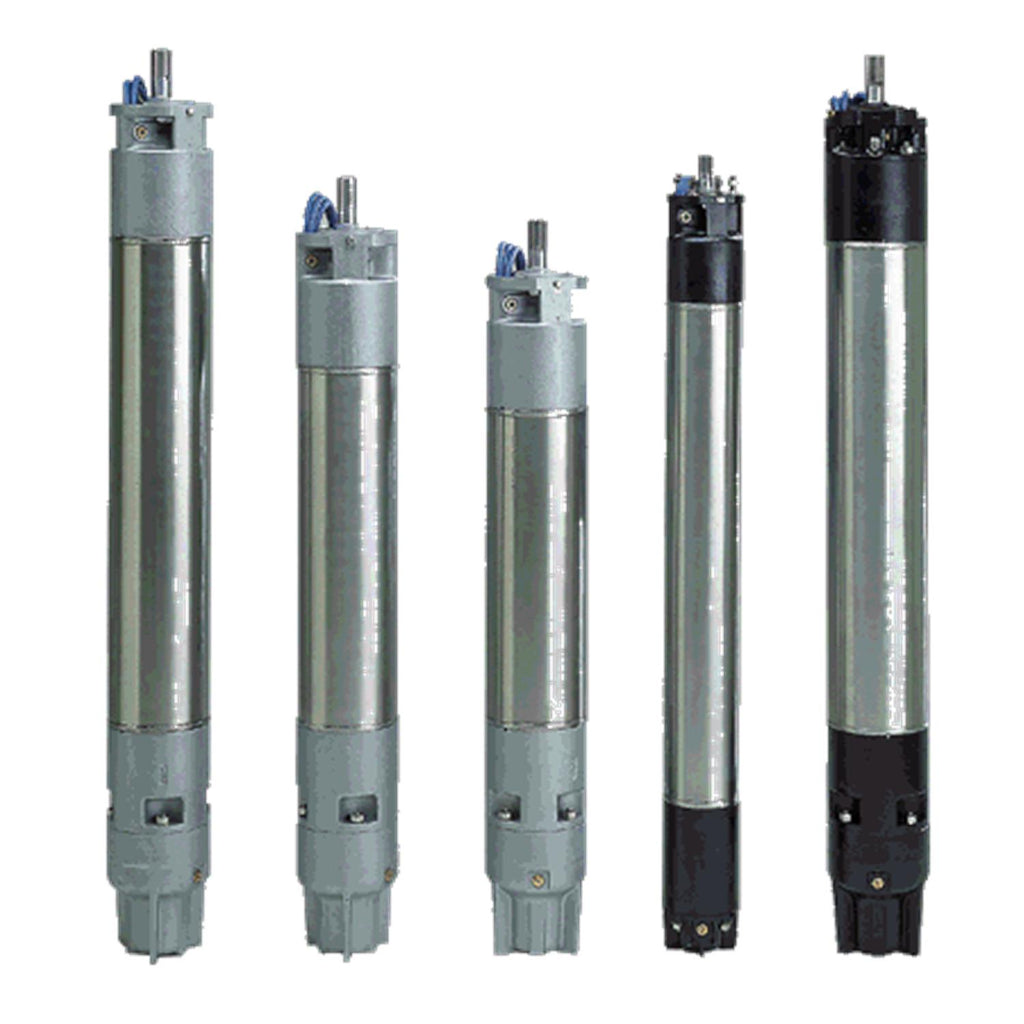

Grundfos 96540301 - MMS 10000 | Submersible Motor | High Efficiency

GRUNDFOSSKU: 96540301

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MMS 10000 · Grundfos Accessory / Spare Part / Control
ACC150HP460V3.0-Phase60 HzIP68

The Grundfos 96540301 (MMS 10000) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 460V, 3.0-Phase, 60 Hz. Applications include Rotor & spray irrigation, Ground water transfer, Livestock & Wildlife Watering and more.

Power
150HP
Voltage
460V
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MMS 10000
Series: ACC
Model Code: MMS 10000
Technical Specifications
Model Number 96540301
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 150HP
Voltage 460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3510rpm
Full Load Current 224A
Motor Type MMS10000
Motor Efficiency 88%
Protection Class (IP) IP68
Applications
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MMS 10000
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700397791035
Applications Motors
Axial load max 5000 kg
Breakdown torque 260-290-320 %
Built-in motor protection NONE
Built-in temp. transmitter no
Diameter 10 inch
Enclosure class (IEC 34-5) IP68
Locked-rotor torque 180-190-210 %
Mains frequency 50 Hz
Material Pricing Group 91
Max liquid t at 0.15 m/sec 104 °F
Max liquid t at 0.5 m/sec 45 °C
Moment of inertia 3.144 lb ft²
Motor Cast iron
Motor diameter 10 inch
Motor efficiency at 1/2 load 85-84 %
Motor efficiency at 3/4 load 0.87
Motor efficiency at full load 1 87-88 %
Motor type MMS10000
Motor version T45
Net weight 849.0 lb
Power factor 1 0.86-0.84-0.81
Product family MMS 10000
Rated current 232-228-228 A
Rated full-load torque 1 254.5 ft lb
Rated power - P2 110 kW
Rated speed 2900-2910-2920 rpm
Rated voltage 3 x 380-400-415 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber NBR
Shaft seal for motor SIC/SIC
Start. method direct-on-line
Starting current 540-570-600 %
Thermal protec external
Type MMS10000
Version T45
Voltage tolerance +6/-10 %
Winding resistance 0.064 ohm
Windings PE2/PA

Motor Curves

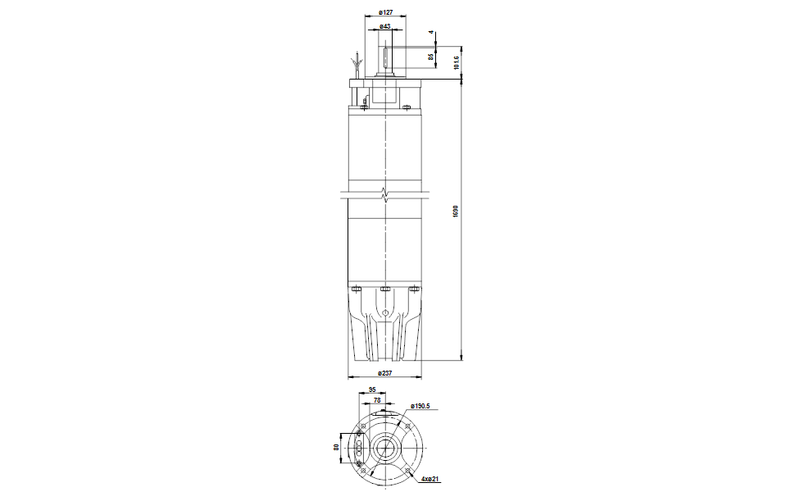

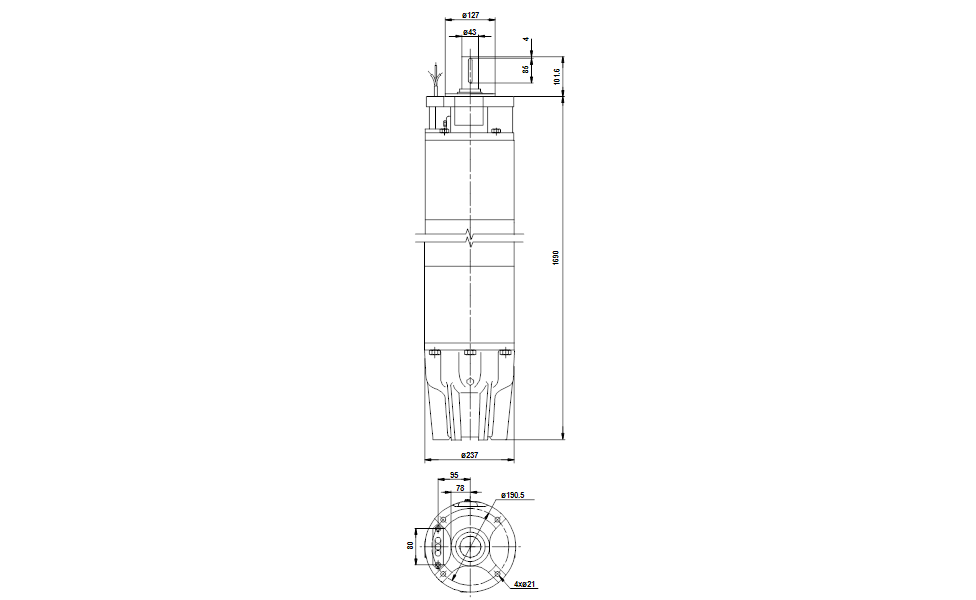

Dimensional Drawing

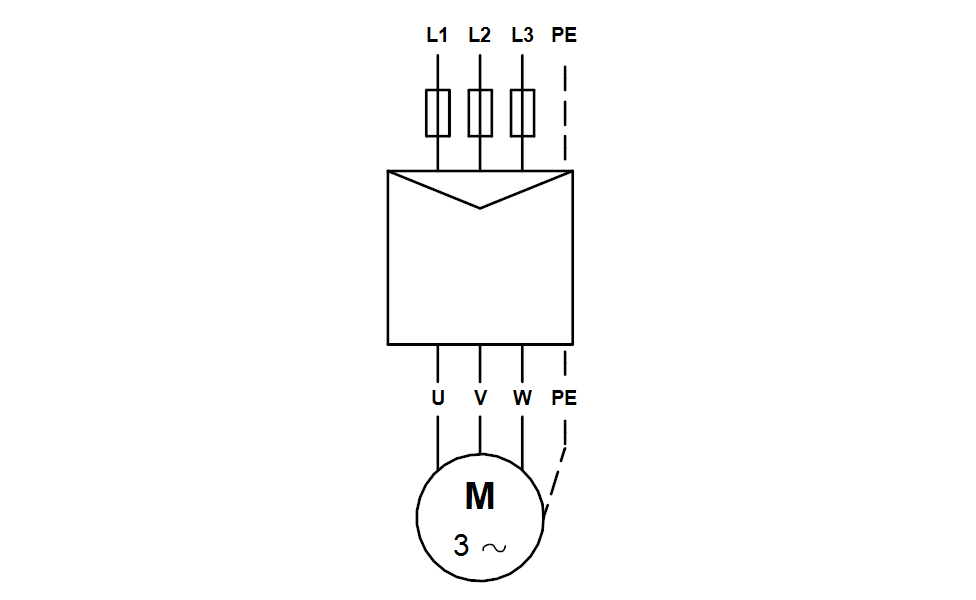

DWiring Diagram
