Grundfos 98431420 - MLE90D | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98431420

Price:
Sale price$5,822.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

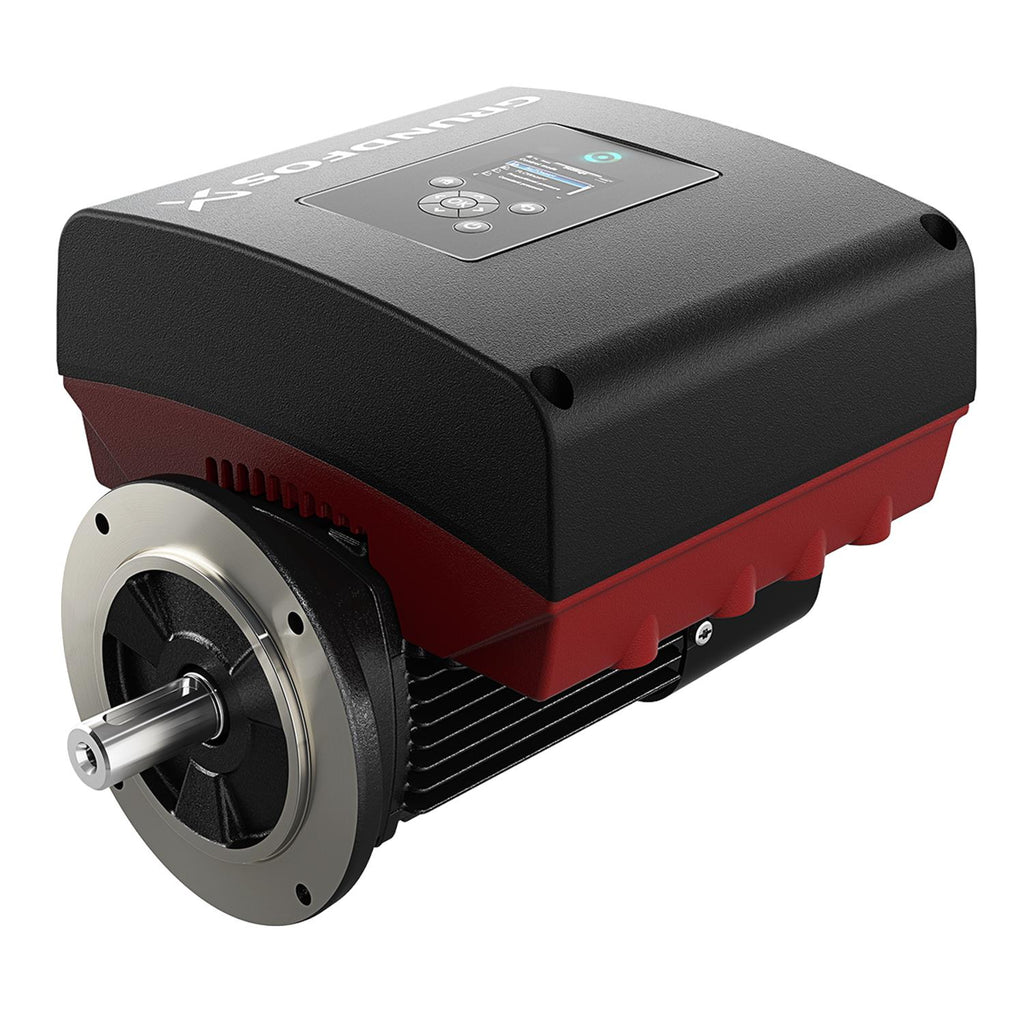

Grundfos 98431420 - MLE90D Integrated Motor

The Grundfos 98431420 - MLE90D is a high-efficiency permanent magnet motor designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this motor is engineered to deliver exceptional performance and reliability, making it an ideal choice for your pumping needs.

As part of the Grundfos Motors & Drives lineup, the MLE90D is specifically tagged under Mge Mle and Shop by Type Pump Motors. Its advanced design ensures optimal energy efficiency, reducing operational costs while maintaining high output.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98431420 - MLE90D. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494897483
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98400903
Control panel HMI300 - Graphical
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model I
Moment of inertia 0.015 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Mount. design. acc. IEC 34-7 NEMA type C / foot
Net weight 44.1 lb
Power factor 1 0.89
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 3.8 A
Rated full-load torque 1 4.499 ft lb
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

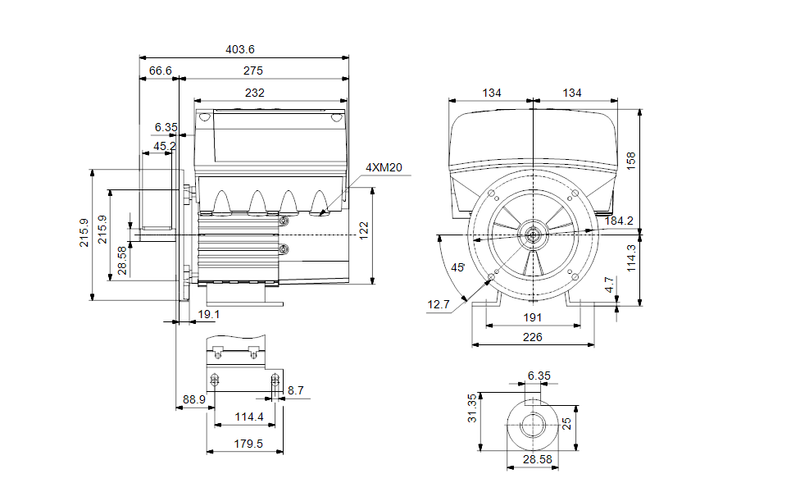

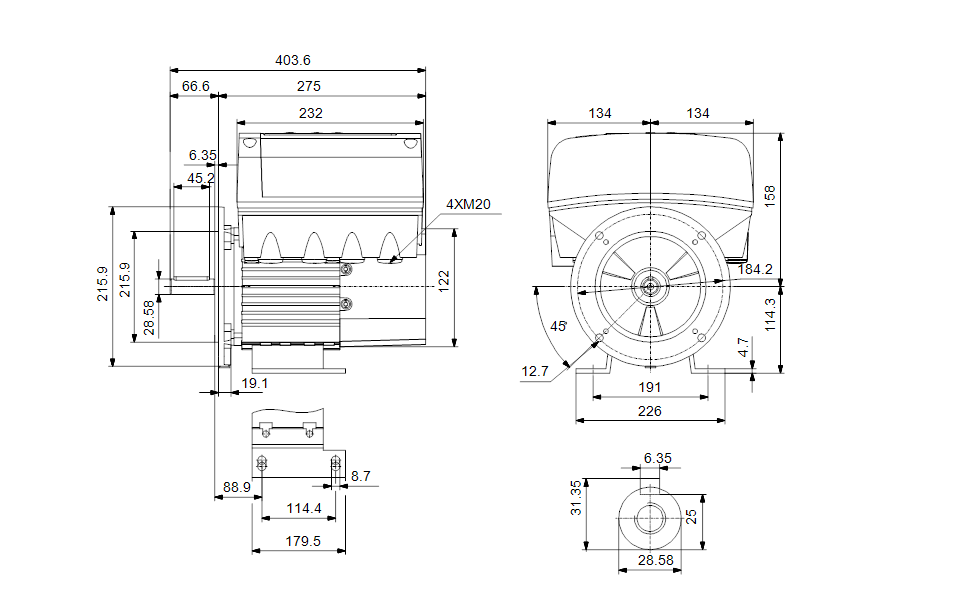

Dimensional Drawing

DWiring Diagram
