Grundfos 98430967 - MLE80C | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98430967

Price:
Sale price$3,477.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

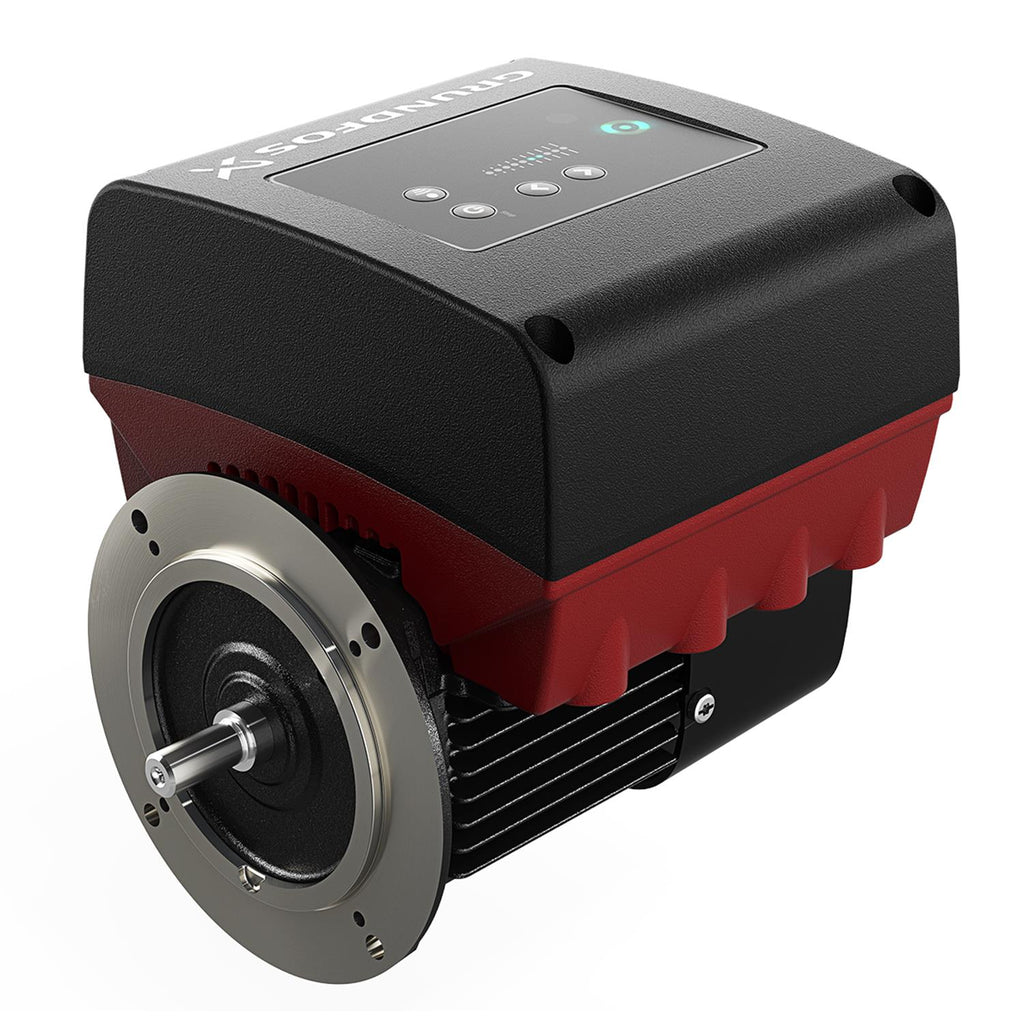

Grundfos 98430967 - MLE80C Integrated Motor

The Grundfos 98430967 - MLE80C is a high-efficiency integrated motor designed for various industrial applications. Manufactured by Grundfos, this permanent magnet motor offers exceptional performance and reliability, making it an ideal choice for your pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call our expert team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our knowledgeable staff is here to help.

Explore our selection of Grundfos motors and drives, including the MGE and MLE series, and experience the quality and efficiency that Grundfos is known for.

EAN 5711494888740
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98400897
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 56C
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model H
Moment of inertia 0.012 lb ft²
Motor 56C
Motor efficiency at full load 1 0.857
Motor standard NEMA
Motor type 80C
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 26.5 lb
Power factor 1 0.99
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 4.70-3.85 A
Rated full-load torque 1 3.688 ft lb
Rated power - P2 0.75 kW
Rated speed 180-2000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

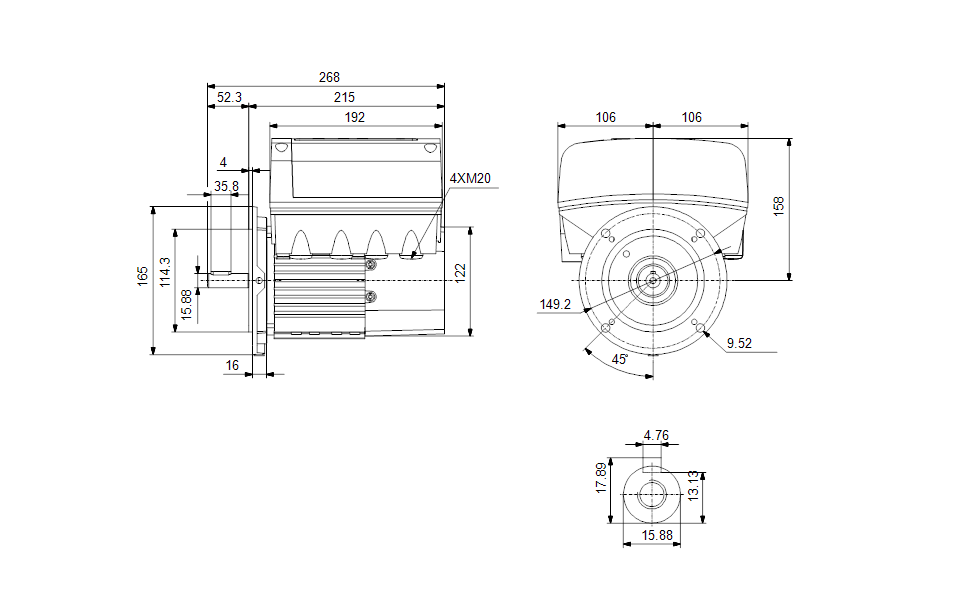

Dimensional Drawing

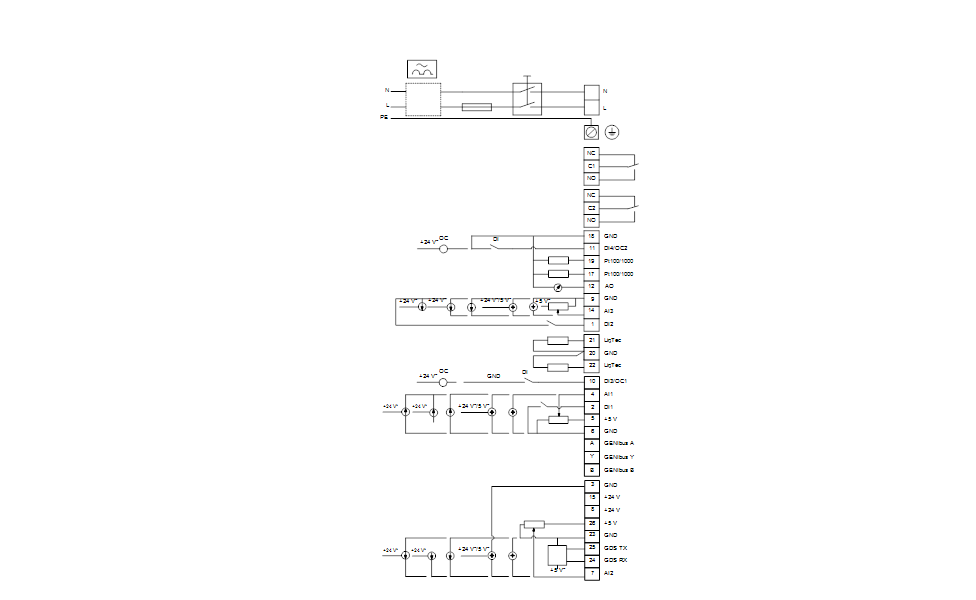

DWiring Diagram
