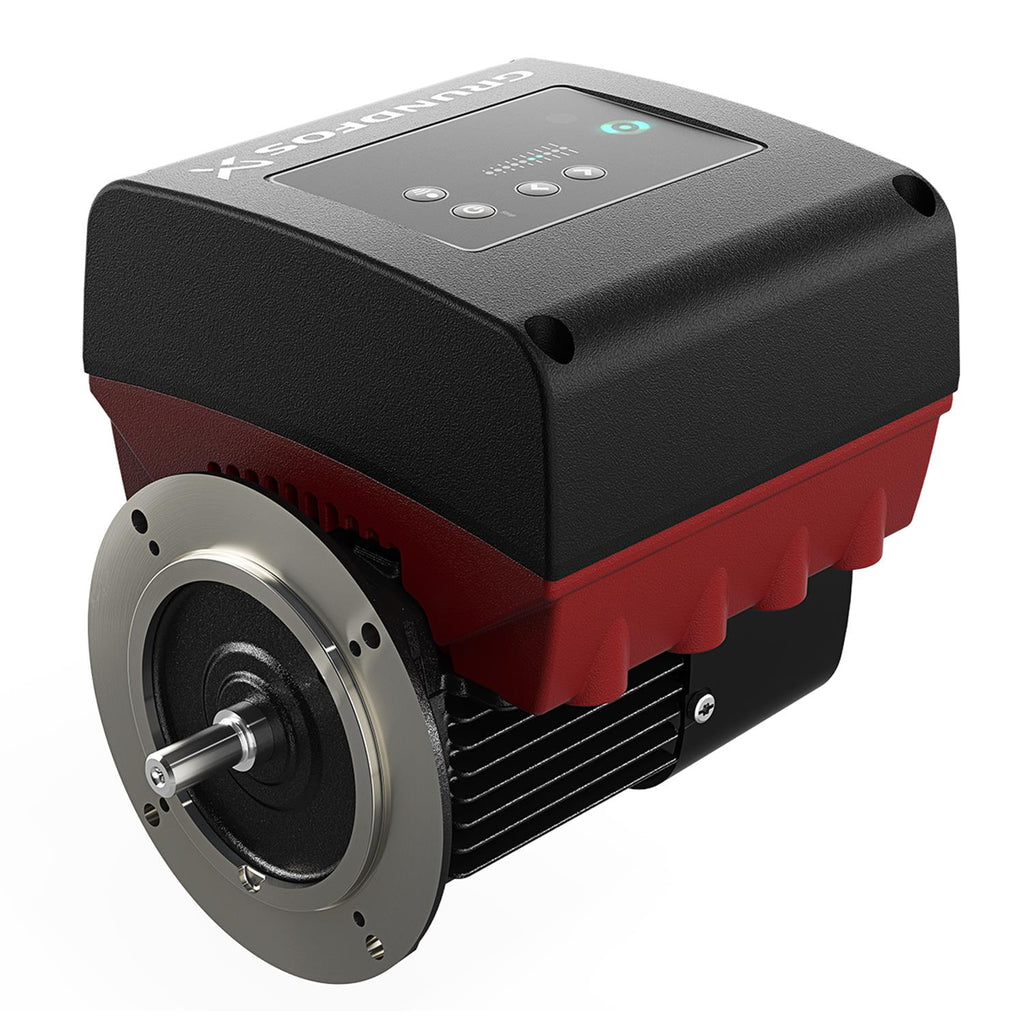

Grundfos 98430966 - MLE80B | Integrated Motor | Permanent Magnet | High Efficiency

GrundfosSKU: 98430966

Price:
Sale price$3,172.22
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MLE80B · Grundfos Accessory / Spare Part / Control
ACC200-240V1-Phase60 HzIE5IP55

The Grundfos 98430966 (MLE80B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 200-240V, 1-Phase, 60 Hz.

Voltage
200-240V
Phase
1-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MLE80B
Series: ACC
Model Code: MLE80B
Technical Specifications
Model Number 98430966
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 200-240V
Phase 1-Phase
Frequency 60 Hz
Motor Type 80B
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 84,3%
Insulation Class F
Protection Class (IP) IP55
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MLE80B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711494888726
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98400896
Control panel HMI200 - Standard
Cooling TEFC
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module 300
IE efficiency 0.843
IE Efficiency class IE5
Insulation class (IEC 85) F
Material Pricing Group 3Y
Model H
Moment of inertia 0.008 lb ft²
Motor 56C
Motor type 80B
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 24.3 lb
Pumped liquid Water
Range of ambient temperature -4 .. 122 °F
Rated power - P2 0.55 kW
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat
