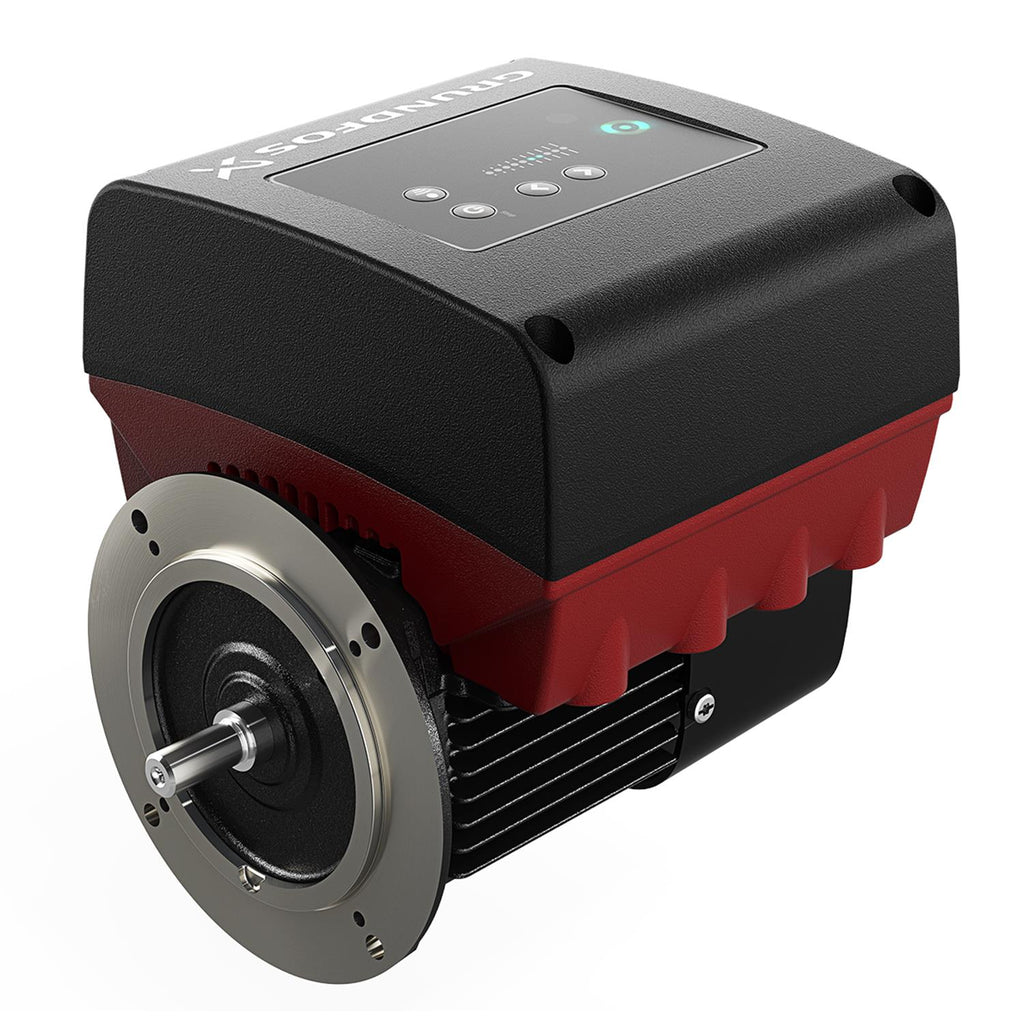

Grundfos 98406282 - MLE80A | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98406282

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
MLE80A · Grundfos Accessory / Spare Part / Control
ACC1HP1-Phase60 HzIP55

The Grundfos 98406282 (MLE80A) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor.

Power
1HP
Phase
1-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — MLE80A
Series: ACC
Model Code: MLE80A
Technical Specifications
Model Number 98406282
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1HP
Phase 1-Phase
Frequency 60 Hz
Motor Speed 500-3600rpm
Full Load Current 4.6A
Motor Type 80A
Motor Protection ELEC
Motor Efficiency 85,0%
Insulation Class F
Protection Class (IP) IP55
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — MLE80A
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711494464548
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98414712
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module FM300 - Advanced
IE efficiency 0.85
Insulation class (IEC 85) F
Material Pricing Group 33
Model H
Moment of inertia 0.006 lb ft²
Motor 56C
Motor efficiency at full load 1 0.85
Motor standard NEMA
Motor type 80A
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 22.0 lb
Power 1 0.88 kW
Power factor 1 0.99
Power input - P1 0.88 kW
Range of ambient temperature -4 .. 122 °F
Rated current 4.6 A
Rated full-load torque 1 1.556 ft lb
Rated power - P2 0.75 kW
Rated speed 500-3600 rpm
Rated voltage ac 1 x 90-240 V
Rated voltage dc 30 - 300 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat
