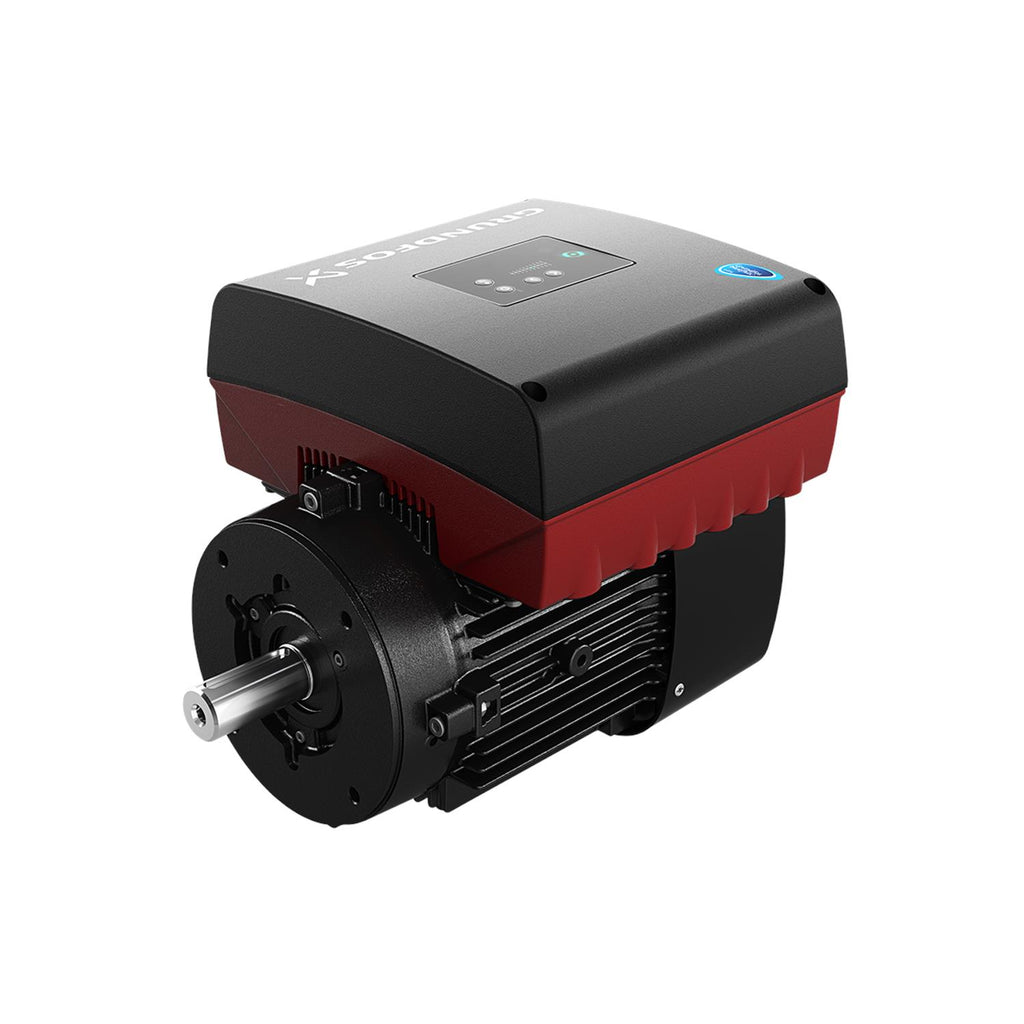

Grundfos 98971061 - MLE132F | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 98971061

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98971061 - MLE132F is an integrated motor assembly featuring a permanent magnet design and high efficiency operation, suited for use in pump motor and drive systems by technicians and maintenance professionals.

Key features

  • Integrated motor format for compact installation and simplified replacement
  • Permanent magnet motor technology for improved efficiency and performance
  • Designed to support motor and drive applications with reduced energy consumption

Applications

Suitable for industrial and commercial pump motor replacements, motor drive systems, and equipment requiring compact, efficient motor modules. Common users include maintenance crews, service technicians, and OEM repair teams.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98971061

EAN 5712604461327
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998438
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 91
Model J
Moment of inertia 0.294 lb ft²
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 92.6 lb
Power factor 1 0.91-0.90
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 12.4-11.5 A
Rated full-load torque 1 15.05 ft lb
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

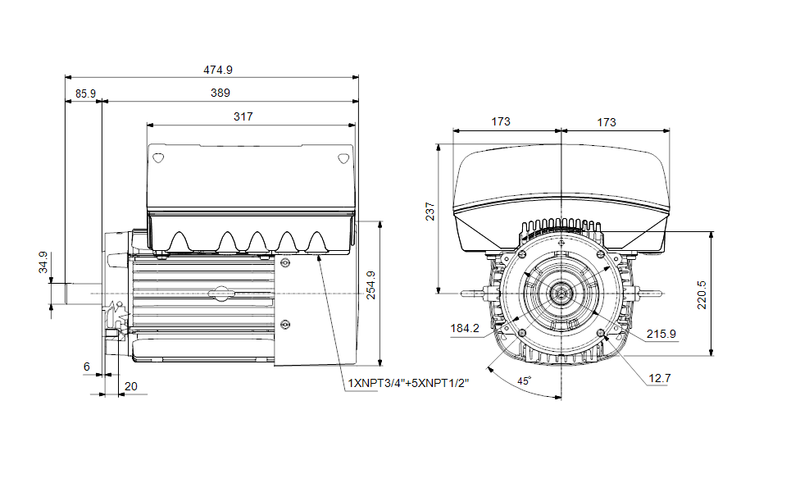

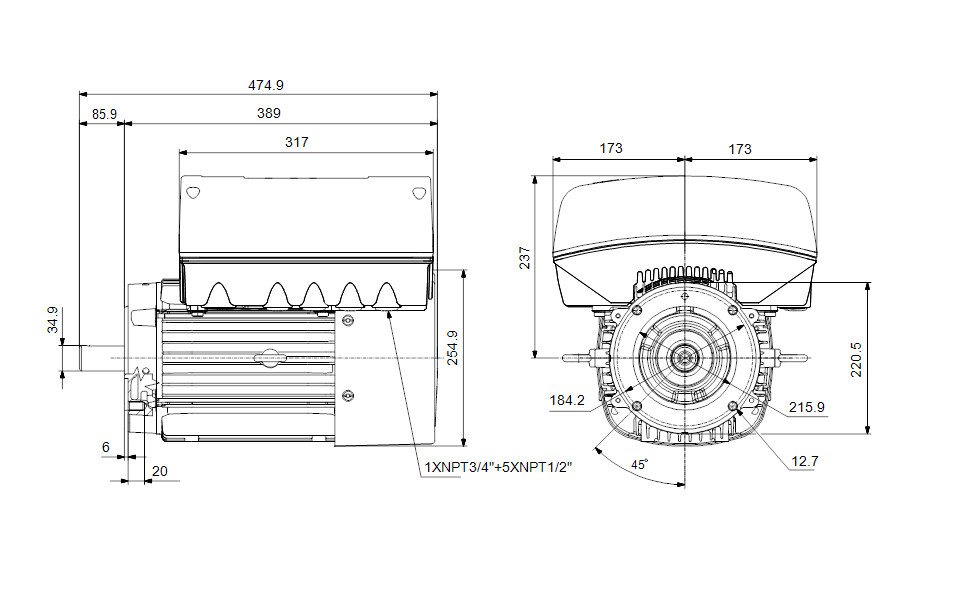

Dimensional Drawing

DWiring Diagram
