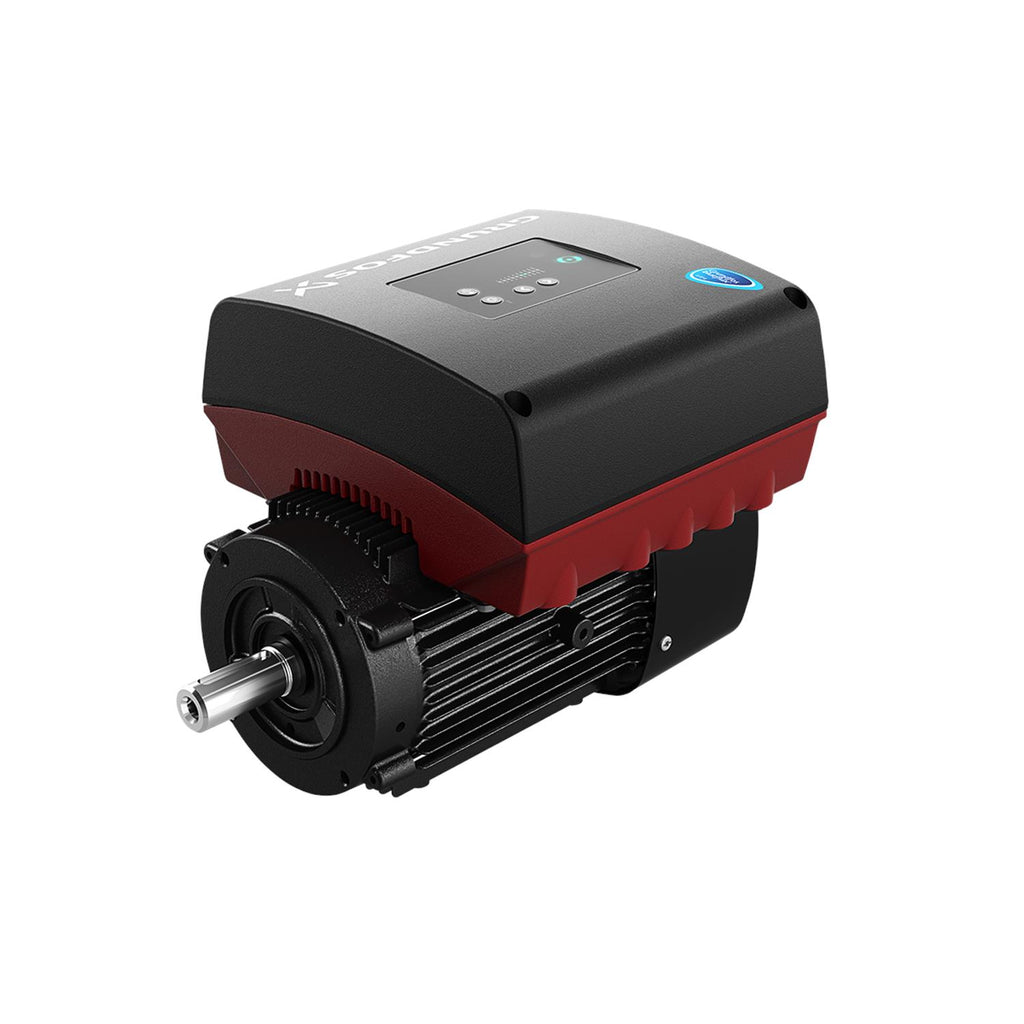

Grundfos 99134093 - MLE112C | Integrated Motor | Permanent Magnet | High Efficiency

GRUNDFOSSKU: 99134093

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99134093 - MLE112C is an integrated motor assembly featuring a permanent magnet design for high-efficiency pump systems, suited for technicians and maintenance professionals replacing motor modules on compatible equipment.

Key features

  • Integrated motor with permanent magnet construction for improved energy efficiency
  • MLE series form factor compatible with Grundfos Motors & Drives applications
  • Compact design that simplifies replacement and reduces downtime

Applications

Commonly used in industrial circulation, HVAC pumping systems, and process equipment where compact, high-efficiency motor modules are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99134093

EAN 5712607375768
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 99251011
Control panel HMI200 - Standard
Cooling TEFC
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.124 lb ft²
Motor 182TC
Motor efficiency at full load 1 0.909
Motor standard NEMA
Motor type 112C
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 52.9 lb
Power factor 1 0.94
Product family MGE, MLE
Range of ambient temperature -4 .. 104 °F
Rated current 13.2-10.9 A
Rated full-load torque 1 7.744 ft lb
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Service factor 1.15
Standard NEMA
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

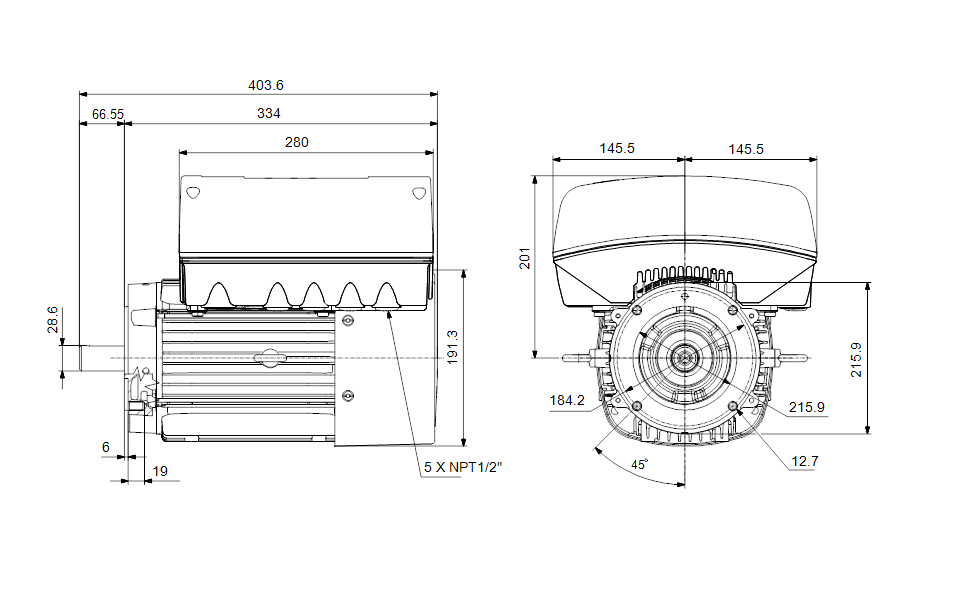

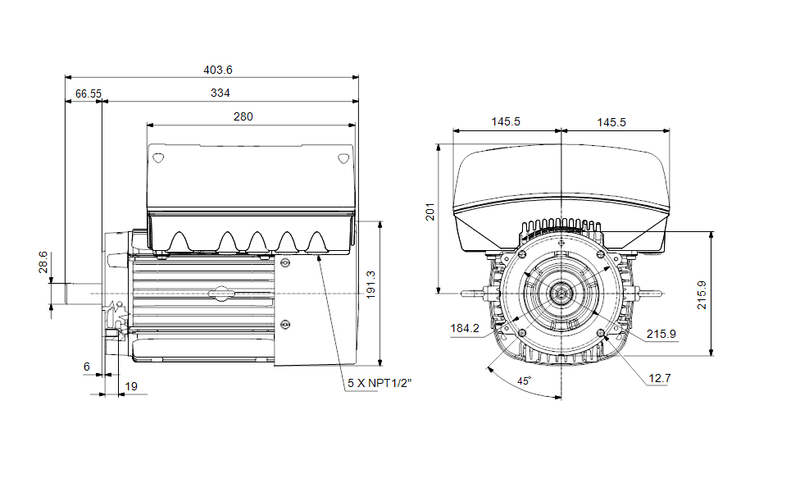

Dimensional Drawing

DWiring Diagram
