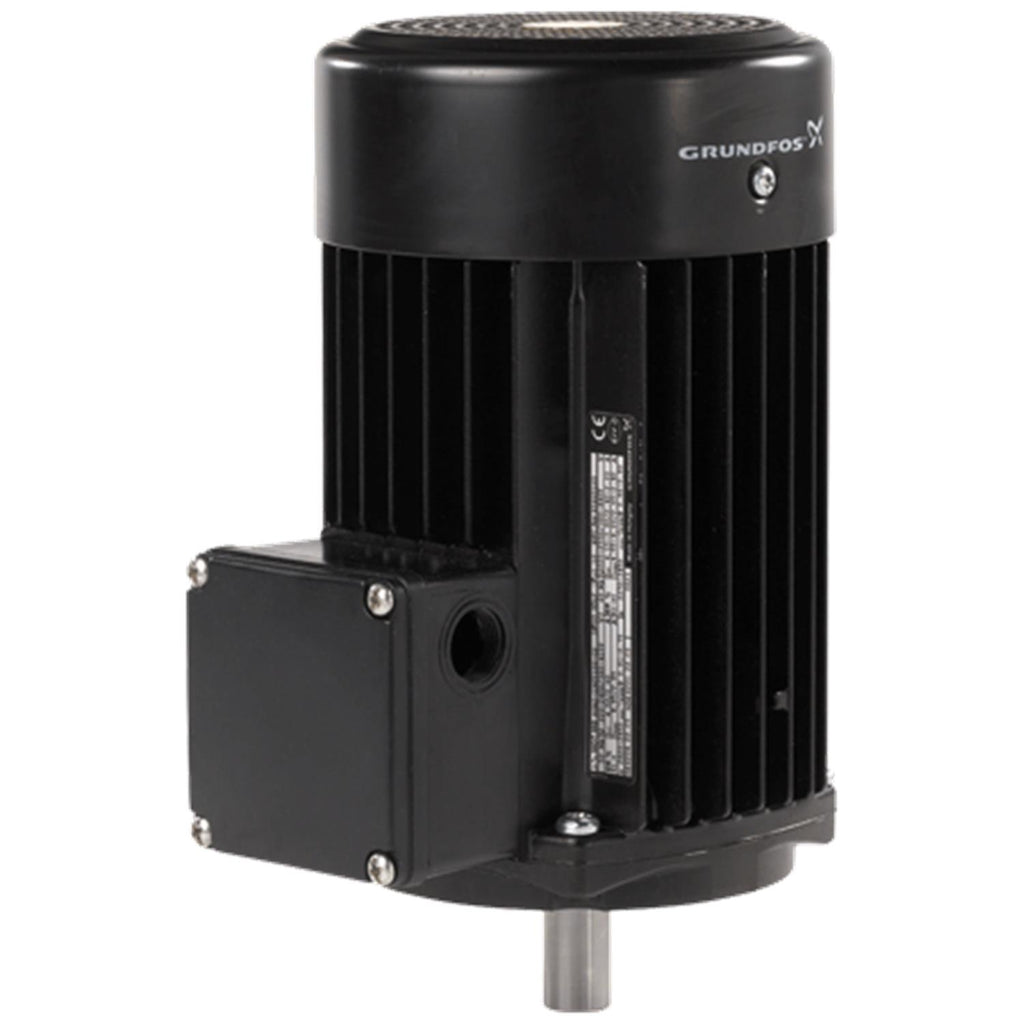

Grundfos 98976607 - ML80CA | Motor | High Efficiency

GrundfosSKU: 98976607

Price:
Sale price$1,375.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
ML80CA · Grundfos Accessory / Spare Part / Control
ACC1.5HP208-230YY/460YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/Jetting

The Grundfos 98976607 (ML80CA) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 208-230YY/460YV, 3.0-Phase, 60 Hz.

Power
1.5HP
Voltage
208-230YY/460YV
Phase
3.0-Phase
Frequency
60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — ML80CA
Series: ACC
Model Code: ML80CA
Technical Specifications
Model Number 98976607
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1.5HP
Voltage 208-230YY/460YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3440-3480rpm
Full Load Current 4,45-4,3/2,16A
Motor Type 80CA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 84.1-83.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Max Ambient Temperature 140°F
Min Ambient Temperature -22°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — ML80CA
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712609139023
Applications Motors
Approvals for motor CE
Bearing insulation type N-end STEEL BEARING
Breakdown torque 3.6
Built-in motor protection NONE
Cable gland entry 2xPG 16 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Cooling TEFC
Diameter 0.63 in
Enclosure class (IEC 34-5) 55 Dust/Jetting
Energy approvals for motor CE
Flange size for motor 56C
IE Efficiency class IE3
Insulation class (IEC 85) F
Length of shaft end 1.89 in
Locked-rotor torque 3
Mains frequency 50 Hz
Material Pricing Group 3X
Model H3
Moment of inertia 0.018 lb ft²
Motor 56C
Motor efficiency at 1/2 load 0.785
Motor efficiency at 3/4 load 0.81
Motor efficiency at full load 1 0.832
Motor standard NEMA
Motor type 80CA
Mount. design. acc. IEC 34-7 NEMA type C
Net weight 17.6 lb
Number of poles 2
Power factor 1 0.8
Product family MG, ML
R1 ohm 2.85 ohm
Range of ambient temperature -22 .. 140 °F
Rated current 2.46 A
Rated full-load torque 1 3.05-3.0 Nm
Rated power - P2 1.1 kW
Rated speed 2860 rpm
Rated voltage 3 x 400Y V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Service factor 1.15
Shaft diameter 0.63 in
Standard NEMA
Starting current 7
Thermal protec external
Tropic protec no
Type NCS 9000 gloss 40+-10 /E-coat
Winding 2 PHASE 2
Winding 3 PHASE 3

Motor Curves

Dimensional Drawing

DWiring Diagram
