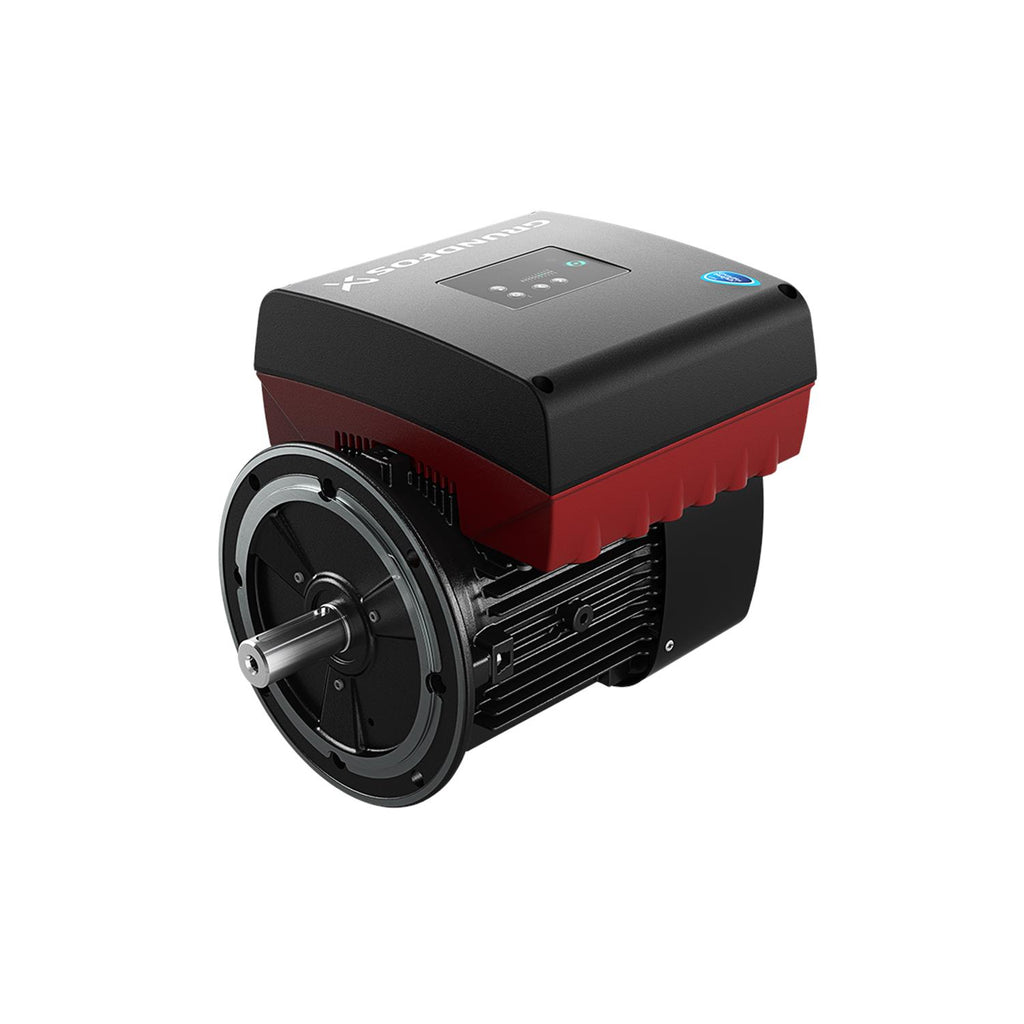

Grundfos 98971052 Three‑Phase Motor | MGE132SF | 7.5 kW | Speed‑Control Motor

GRUNDFOSSKU: 98971052

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98971052 is a three-phase speed-control motor (MGE132SF) rated 7.5 kW designed for industrial pump systems; it fits pump motor applications and is used by technicians and plant maintenance teams.

Key features

  • Three-phase motor construction for reliable, continuous operation
  • Controls & accessories compatibility for system integration
  • Speed-control capability provides efficient flow and energy management

Applications

Suitable for centrifugal and process pumps, industrial water and wastewater systems, HVAC pumping, and other plant-level pump drives where a 7.5 kW, three-phase speed-control motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98971052

EAN 5712604461235
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 5xM20 + M32 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998438
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FF265
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 33
Model J
Moment of inertia 0.294 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.925
Motor standard IEC
Motor type 132SF
Mount. design. acc. IEC 34-7 IM V1/B5
Net weight 90.4 lb
Power factor 1 0.93-0.89
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 14.1-11.2 A
Rated full-load torque 1 18.22 ft lb
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

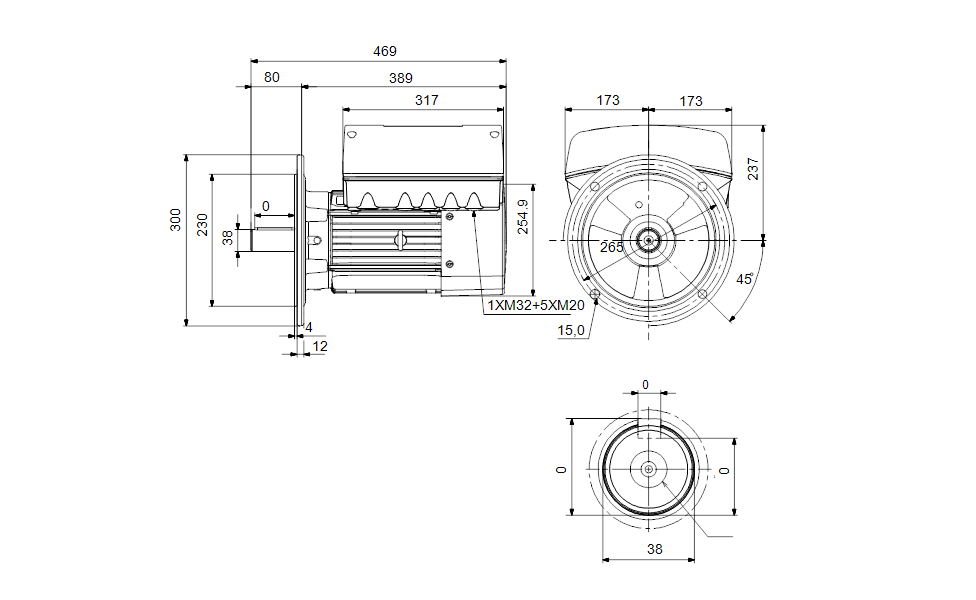

Dimensional Drawing

DWiring Diagram
