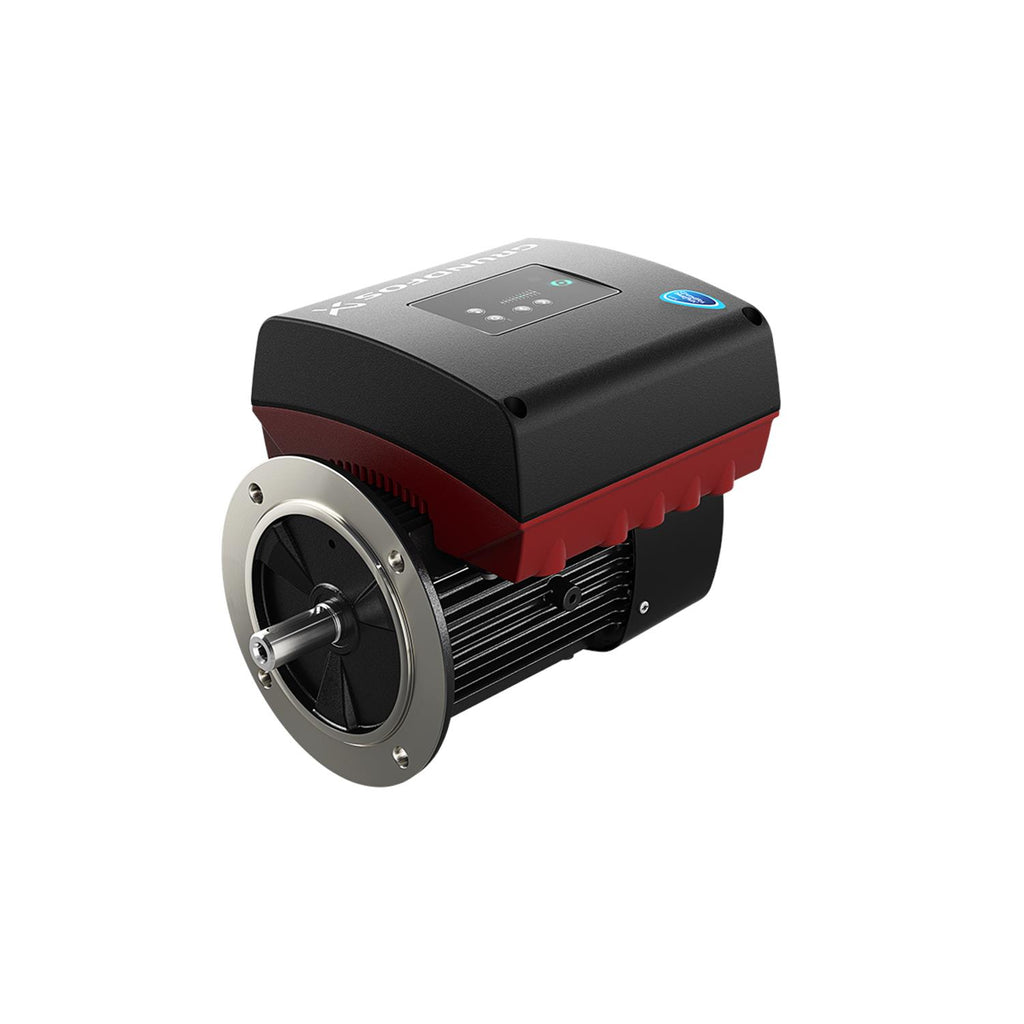

Grundfos 98971051 Three‑Phase Motor | MGE132SE | 5.5 kW | Speed‑Control Motor

GRUNDFOSSKU: 98971051

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98971051 Three‑Phase Motor (MGE132SE) is a speed‑control motor designed by Grundfos for industrial pumping systems and control assemblies, suited for technicians and maintenance teams replacing OEM motors.

Key features

  • Three‑phase speed‑control design suitable for variable speed pump applications
  • Compatible with Grundfos Controls & Accessories and MGE/MLE product families
  • Provides reliable motor control and improved system efficiency for straightforward installation and service

Applications

Replacement motor for industrial pump drives, control cabinets, and retrofit projects requiring a 5.5 kW speed‑control motor; commonly used in commercial HVAC, booster systems, and process water equipment.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98971051

EAN 5712604461228
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 + M25 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998437
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FF265
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.167 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.927
Motor standard IEC
Motor type 132SE
Mount. design. acc. IEC 34-7 IM V1/B5
Net weight 77.2 lb
Power factor 1 0.92-0.88
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 10.3-8.20 A
Rated full-load torque 1 13.35 ft lb
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

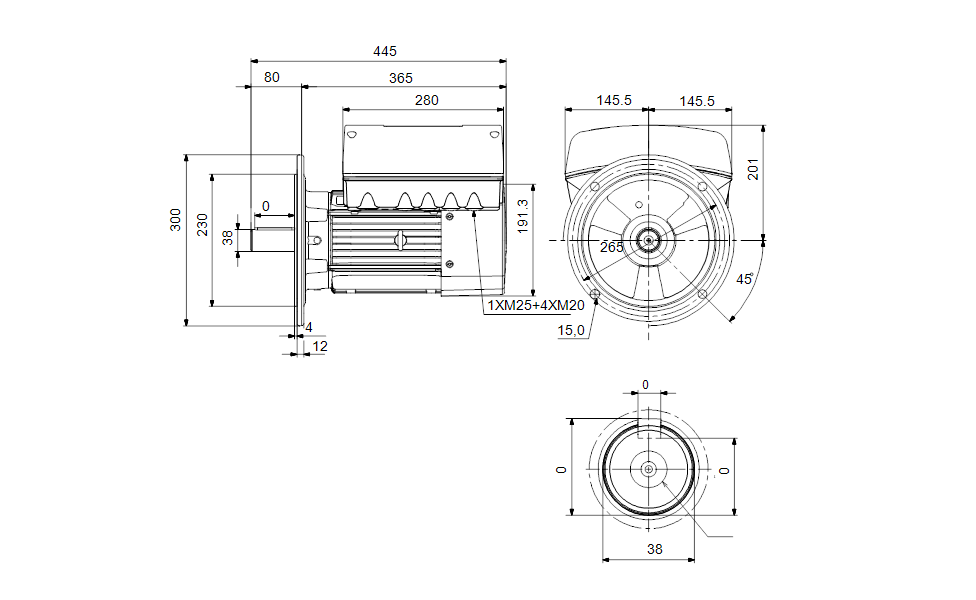

Dimensional Drawing

DWiring Diagram
