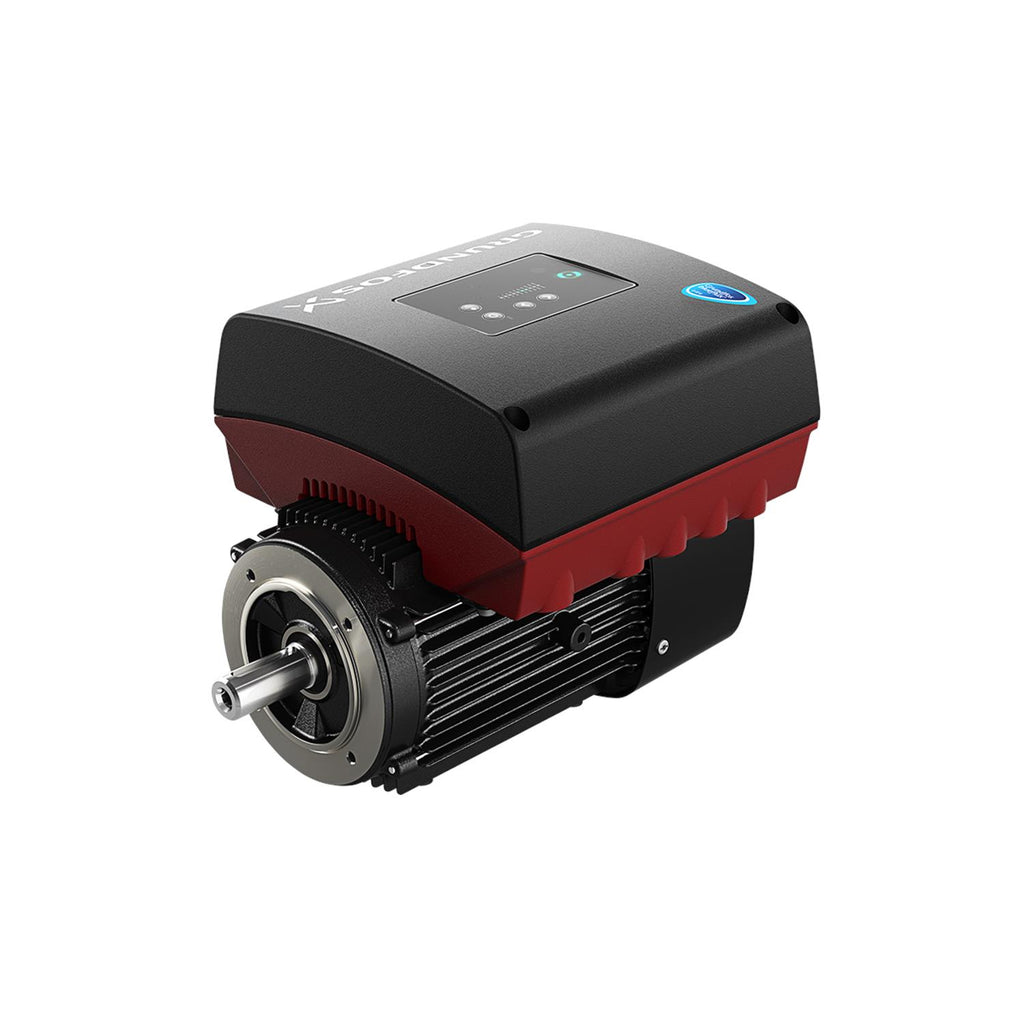

Grundfos 98971050 Three-Phase Motor | MGE112MC | 4 kW (5.5 HP) | Speed-Control | IE5 Efficiency | B14 Mount

GRUNDFOSSKU: 98971050

Price:
Sale price$7,611.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98971050 MGE112MC is a three-phase, speed-control motor designed for industrial pump drive applications where high efficiency and compact B14 mounting are required. Typical users include plant maintenance teams and OEMs replacing pump motors.

Key features

  • Designed for industrial pump drive use and built by Grundfos for reliability
  • Related to Controls & Accessories, Mge Mle, and Shop by Type Pump Motors
  • Speed-control capability and IE5 efficiency deliver precise performance and reduced energy consumption

Applications

Suitable for centrifugal and inline pump drives, process water systems, HVAC pumping, and other industrial fluid-handling installations where a compact B14-mounted motor is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98971050

EAN 5712604461211
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 + M25 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998436
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT130
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 31
Model J
Moment of inertia 0.124 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.922
Motor standard IEC
Motor type 112MC
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 55.1 lb
Power factor 1 0.92-0.87
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 7.60-6.20 A
Rated full-load torque 1 9.736 ft lb
Rated power - P2 4 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

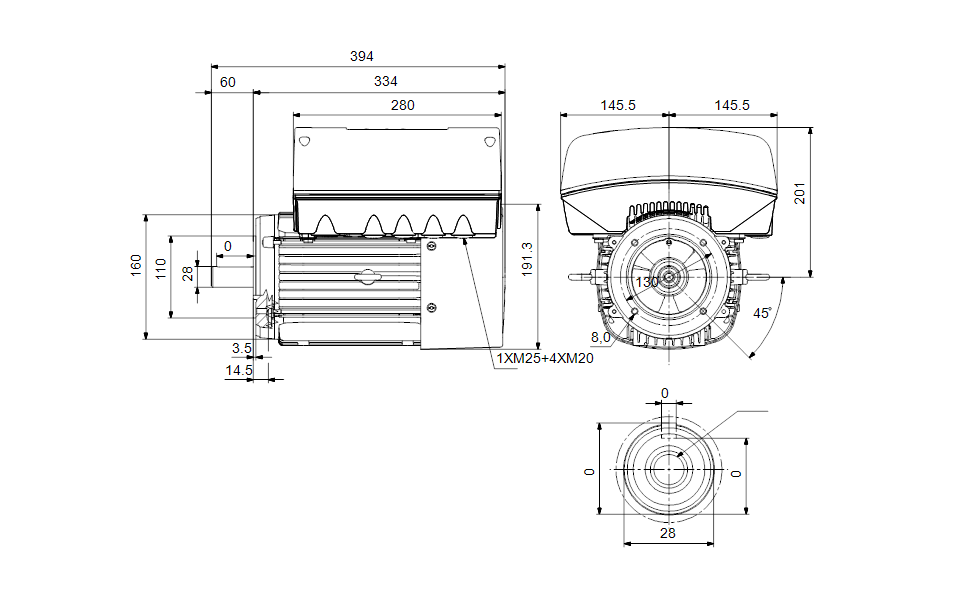

Dimensional Drawing

DWiring Diagram
