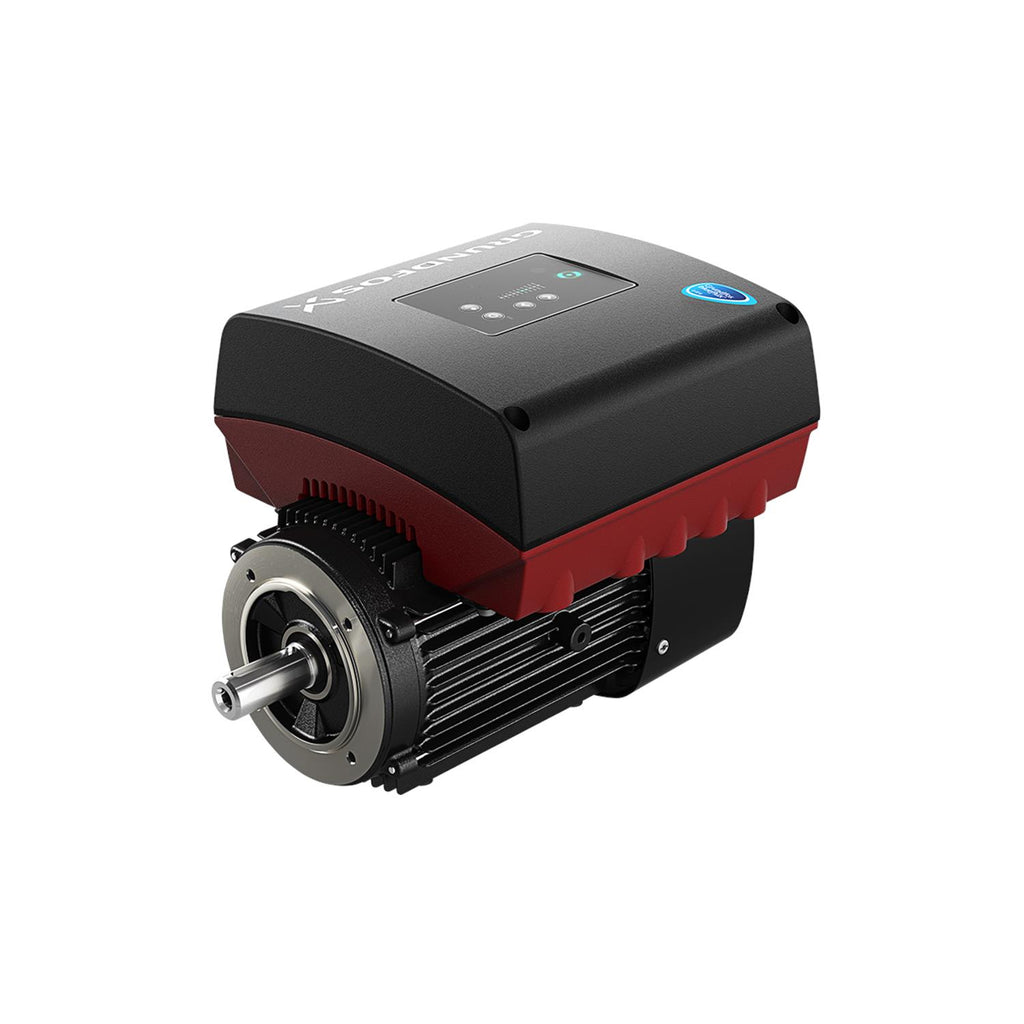

Grundfos 98971049 Three‑Phase Motor | MGE100LA | 3 kW | Speed‑Control Motor

GRUNDFOSSKU: 98971049

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98971049 · Grundfos Accessory / Spare Part / Control
ACC4HP380-500V3-Phase50, 60 HzIE5IP55

The Grundfos 98971049 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 380-500V, 3-Phase, 50, 60 Hz.

Power
4HP
Voltage
380-500V
Phase
3-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98971049
Series: ACC
Technical Specifications
Model Number 98971049
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 4HP
Voltage 380-500V
Phase 3-Phase
Frequency 50, 60 Hz
Motor Speed 360-4000rpm
Full Load Current 5,80-4,80A
Motor Type 100LA
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 90.7%
Insulation Class F
Protection Class (IP) IP55
Max Ambient Temperature 122°F
Min Ambient Temperature -4°F
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 98971049
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712604461006
Applications Motors
Approvals for motor WEEE
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Cable gland entry 4xM20 + M25 blind plug
Colour/Type NCS 9000 gloss 40+-10 /E-coat
Com. module NONE
Config. file no 98998435
Control panel HMI200 - Standard
Cooling IC 411
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Environmental approvals for motor WEEE
Flange size for motor FT130
Function Module FM300 - Advanced
IE Efficiency class IE5
Insulation class (IEC 85) F
Mains frequency 50 Hz
Material Pricing Group 3Y
Model J
Moment of inertia 0.095 lb ft²
Motor WEEE
Motor efficiency at full load 1 0.907
Motor standard IEC
Motor type 100LA
Mount. design. acc. IEC 34-7 IM B14/V18
Net weight 48.5 lb
Power factor 1 0.91-0.86
Product family MGE, MLE
Range of ambient temperature -4 .. 122 °F
Rated current 5.80-4.80 A
Rated full-load torque 1 7.302 ft lb
Rated power - P2 3 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Standard IEC
Thermal protec ELEC
Type NCS 9000 gloss 40+-10 /E-coat

Motor Curves

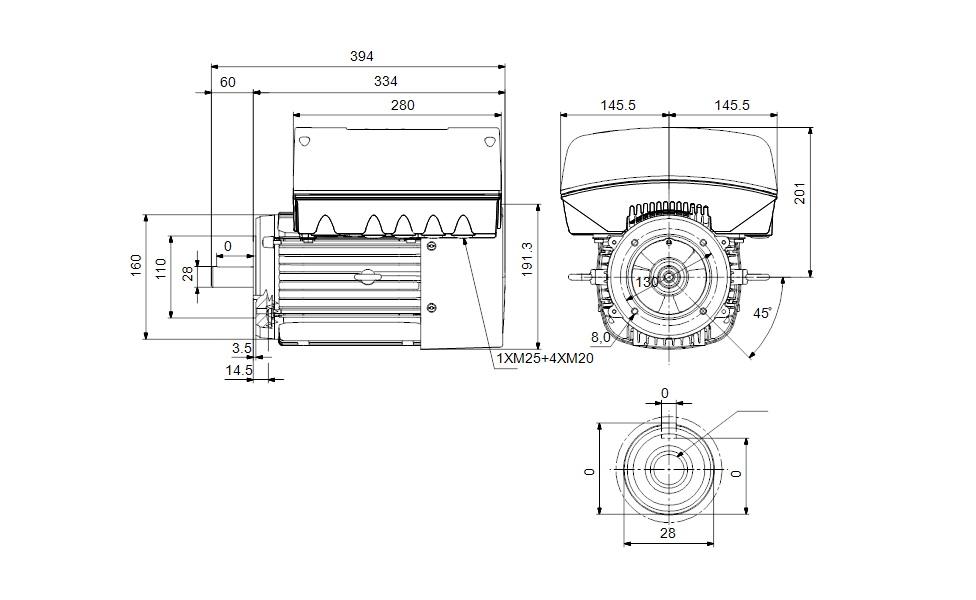

Dimensional Drawing

DWiring Diagram
