Description

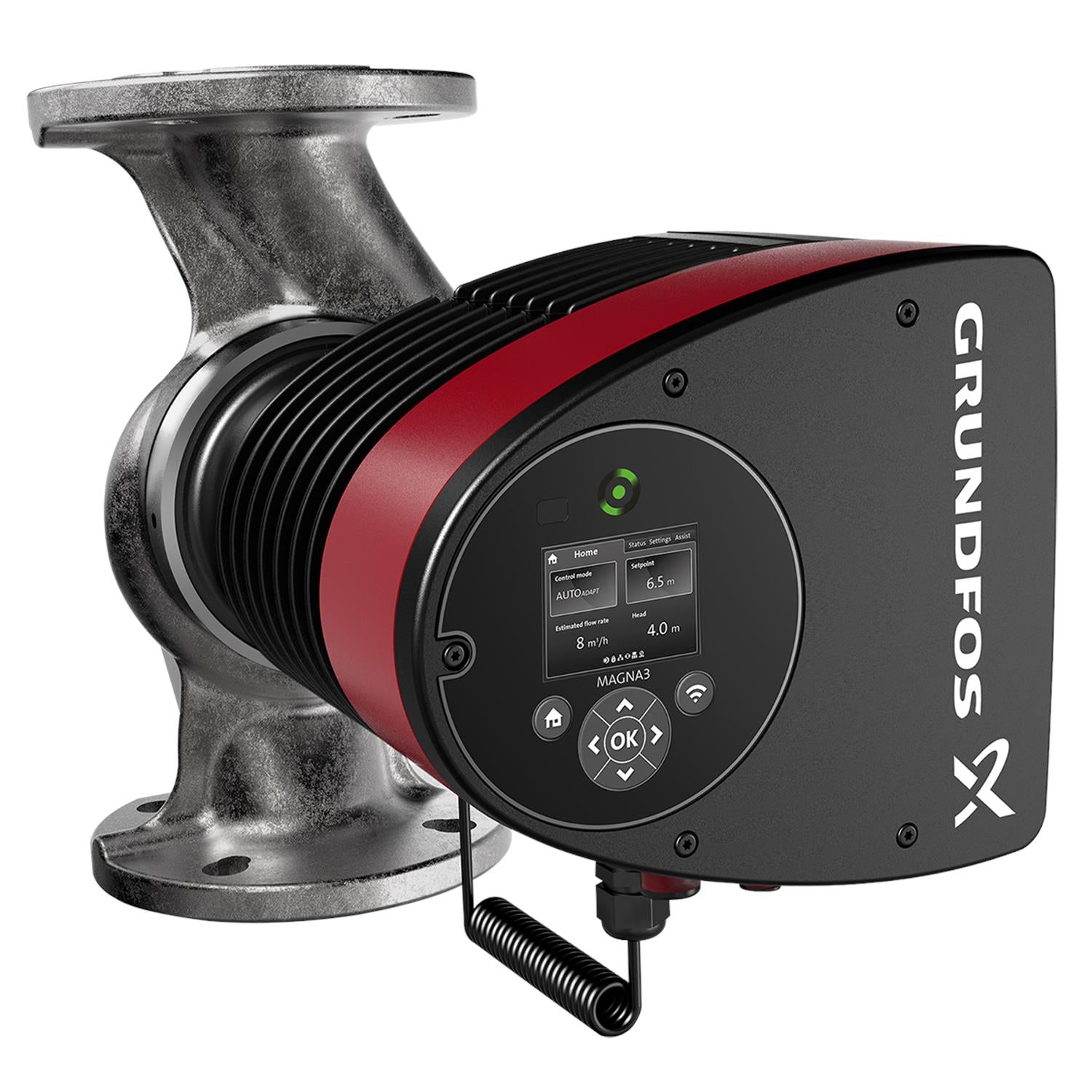

The Grundfos 97924360 (MAGNA3 50-180 F N) is a Circulator Pump — ECM Variable Speed. MAGNA3 series high-efficiency ECM circulator with AUTOADAPT and FLOWADAPT functions. Nominal performance: 96.3US gpm at 28.65ft. Rated 230V, 1-Phase, 50, 60 Hz. Applications include Plumbing: Hot Water Recirculation, Residential hot water recirculation.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 97924360 |
| Product Series | MAGNA3 |
| Series Description | Circulator Pump — ECM Variable Speed |
| Voltage | 230V |
| Phase | 1-Phase |
| Frequency | 50, 60 Hz |
| Insulation Class | F |
| Protection Class (IP) | IPX4D |
| Nominal Flow | 96.3US gpm |
| Nominal Head | 28.65ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 230°F |
| Max Ambient Temperature | 104°F |
| Nominal Pipe Bore | DN 50 |
| Pipe Pressure Rating | PN 6/10 |
| Pipe Standard | DIN |
| Impeller Material | Composite |
| Housing Material | Stainless steel |
| Approvals / Certifications | CE, VDE, EAC, MOROCCO, UKCA, TSE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 230V, 1-Phase, 50, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 230°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. MAGNA3 pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5710626494361
- Approvals
- CN ROHS
- Approvals and markings
- 180 dm
- Approvals for drinking water
- WRAS
- Battery back-up
- 180 dm
- Colour
- 180 dm
- Connection
- DN 50
- Density
- 61.35 lb/ft³
- Enclosure class (IEC 34-5)
- X4D
- Energy (EEI)
- 0.18
- Environmental approvals
- CN ROHS
- Flange standard
- DIN
- Flow range
- 180 dm
- Gross weight
- 47.8 lb
- Head max
- 180 dm
- Housing
- Stainless steel
- Impeller
- PES 30%GF
- Insulation class (IEC 85)
- F
- Length
- 280 mm
- Liquid temperature range
- 14 .. 230 °F
- Mains frequency
- 50 / 60 Hz
- Material Pricing Group
- 56
- Maximum current consumption
- 0.24 .. 3.45 A
- Maximum operating pressure
- 10 bar
- Model
- E
- Motor
- 180 dm
- Net weight
- 43.6 lb
- Number of leads
- 180 dm
- Pipe connection
- DN 50
- Pipework connection
- 180 dm
- Power 1
- 23 .. 764 W
- Power input - P1
- 23 .. 764 W
- Pressure rating
- PN 6/10
- Pressure retention valve
- 180 dm
- Pump housing
- Stainless steel
- Pumped liquid
- Water
- Range of ambient temperature
- 32 .. 104 °F
- Rated flow
- 96.3 US gpm
- Rated head
- 28.65 ft
- Rated voltage
- 1 x 230 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 140 °F
- Sens.interface
- 180 dm
- Standard
- DIN
- TF class
- 110
- Valve type
- 180 dm
