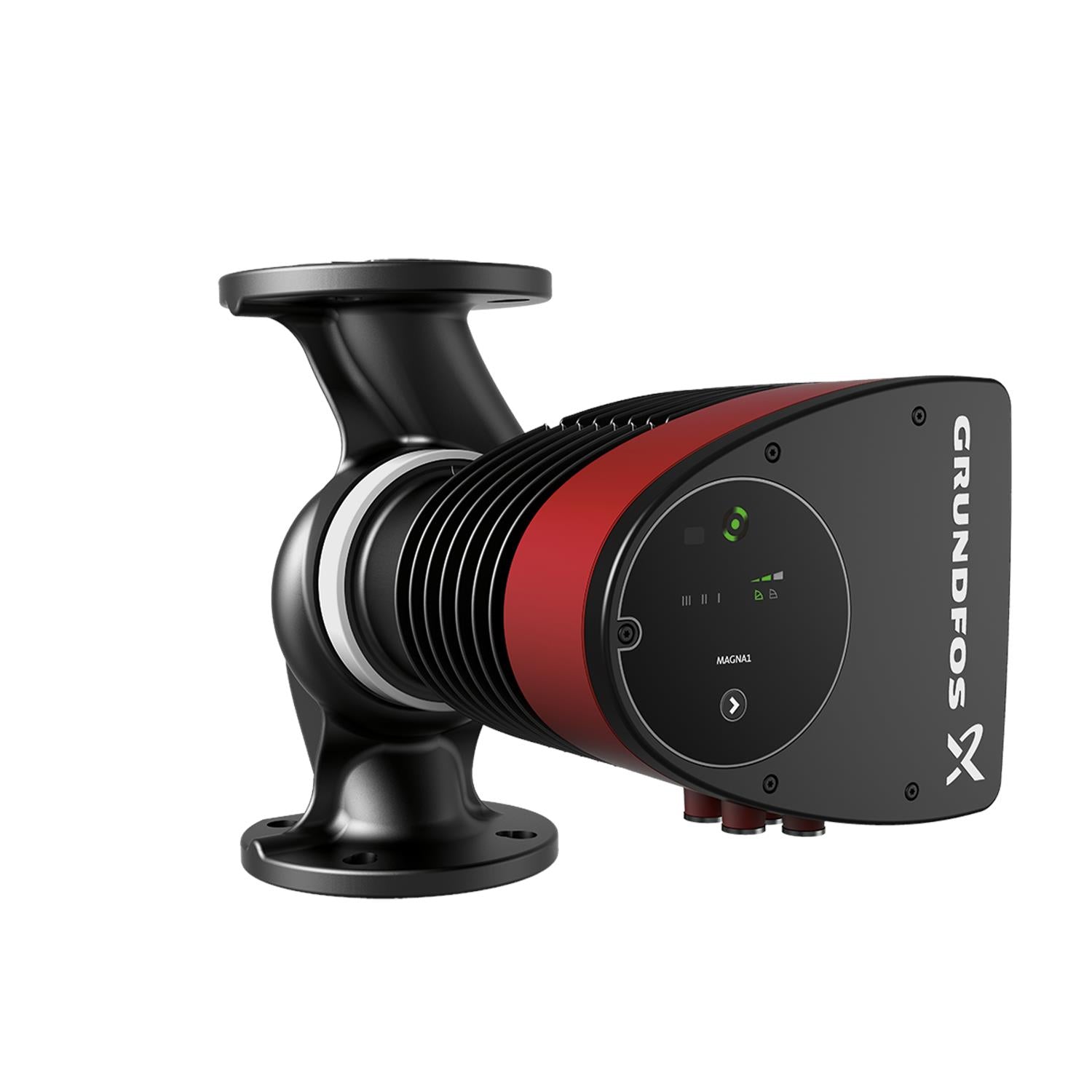

Grundfos 98126855 - MAGNA1 80-100 F
Grundfos 98126855 - MAGNA1 80-100 F
Grundfos 98126855 - MAGNA1 80-100 F
Grundfos 98126855 - MAGNA1 80-100 F
Grundfos 98126855 - MAGNA1 80-100 F
Grundfos 98126855 - MAGNA1 80-100 F

Grundfos 98126855 - MAGNA1 80-100 F

Save $2,098.00
GRUNDFOSSKU: 98126855
Price:
$4,896.00 $6,994.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98126855 - MAGNA1 80-100 F This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Density 61.35 lb/ft³
Maximum operating pressure 174.05 psi
Selected liquid temperature 140 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Power input - P1 31 .. 1014 W
Maximum current consumption 4.45 A
Liquid temperature range 14 .. 230 °F
Insulation class (IEC 85) F
Energy (EEI) 0.19
Net weight 66.6 lb
Gross weight 71.8 lb
Enclosure class (IEC 34-5) X4D
Pressure rating for connection PN 12
Pipe connection GF80
Range of ambient temperature 32 .. 104 °F
Minimum current consumption 0.31 A
Approvals cETLus, Proposition 65
Flange standard GF
Model B
Length 14 3/16 in
Maximum head 32.81 ft
Housing Cast iron
TF class 110
Connection PN 12
Impeller Composite
Pump housing Cast iron
Standard GF

Motor Curves

Dimensional Drawing

DWiring Diagram
