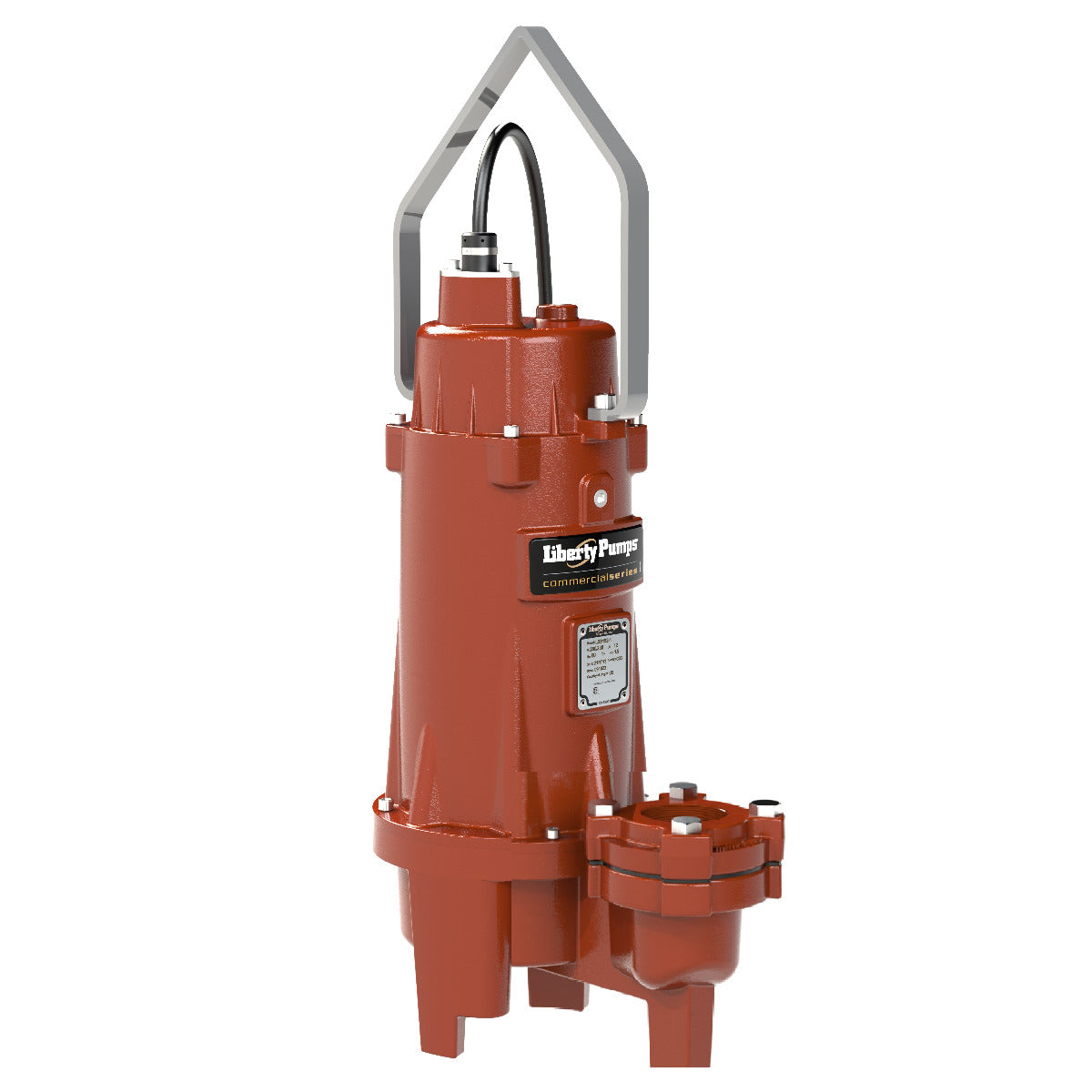

Liberty LSV304V-3, LSV300 Series, Manual Submersible Sewage Pump, 3 HP, 460 Volts, 3 Phase, 6 Amps, 4" NPT Vertical Flanged Discharge, Vortex Impeller, 375 GPM Max, 32 ft Max Head, 35 ft Cord

This item ships free!
LibertySKU: LSV304V-3

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

FEATURES Liberty Pump LSV300 Series Sewage pump The LSV300 pump is to be used for handling septic tank effluent, sewage, and drain (storm) water. Features 3" solids handling Vortex impeller 4" NPT vertical discharge Cast iron construction with epoxy powder coating Stainless steel hardware Silicon Carbide/Silicon Carbide seal Single seal Buna-N O-ring seals 35 ft quick-connect power cord. Also available in 50 ft. and 100 ft. lengths upon request Cast iron impeller 104°F (40°C) Continuous duty maximum fluid temperature Control Panel Options Below are Liberty control panels that can be used with this pump. SX34=3-191 AE34=3-191 AE34=4-191 Warranty Disclaimer: Liberty Pumps, Inc. warrants that pump of its commercial sales are free from all factory defects in material and workmanship for a period of 18 months from date of installation, or 24 months from the date of manufacture, whichever occurs first, and provided that such products are used in compliance with their intended applications as set forth in the commercial sales technical specifications and manuals. The date of installation shall be determined by a completed pump start-up report and warranty registration form. A pump start-up report, filled out by a qualified installer, is required for the warranty to take effect. The report must be submitted within 30 days from the installation date and submitted through the Liberty Pumps website. Note: The start-up report is under the Manual's tab.

Motor Curves
