Description

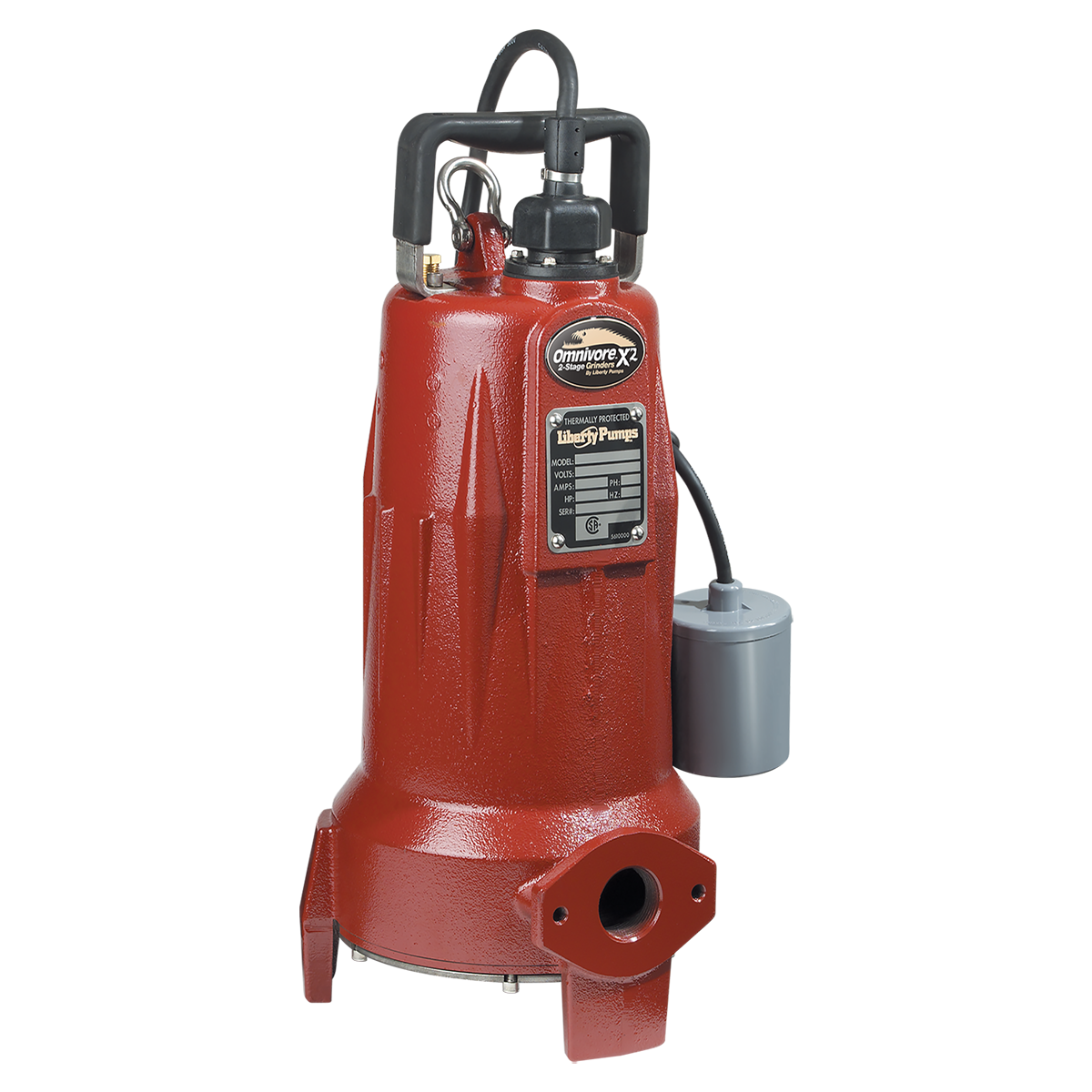

FEATURES Liberty Pump LSGX202A is a 2 HP 208-230v, 2-Stage high-head Automatic Submersible Grinder Pump with 25ft quick-disconnect power cord and piggyback wide-angle adjustable float switch. With proven V-Slice cutter technology, the Omnivore Grinder Pump LSGX202A decomposes sanitary waste into a fine slurry allowing it to be pumped through a small diameter pipe, eliminating costly gravity systems with larger pipes and deep trenching. The LSGX Series curve provides superior flows over a wide range of typical pressures necessary for multi-unit developments and "large-area" low pressure sewer systems. They are designed for continuous underwater operation. The motor and pump form a close coupled, watertight unit. The induction motor is insulated against heat and moisture in accordance with Class B 265F regulations. Features: 2 HP, heavy-duty motor - oil filled, thermally protected Omnivore LSGX Series 2-stage Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58 One-piece cast iron body Entire cutting system made of 440 stainless steel hardened to 58 Rc V-pattern provides up to 108 alternated cuts per revolution Horizontal 1-1/4" FNPT Discharge Superior pump design allows for efficient pumping over a wide range of head applications, even negative head Internal capacitor Upper and lower ball bearings One-piece uni-body cast iron housing 300 Series SS Rotor Shaft 316 Stainless steel impeller Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal) Motor windings insulated to Class B (265°F) New Patented V-Slice cutter technology Back vanes on impeller and spiraled bottom plate for superior solids clearing All stainless steel fasteners Clog-free volute design Designed for maximum heat dissipation and cool motor operating temperatures Solid state starting circuit - no mechanical relay coil
Motor Curves
