Description

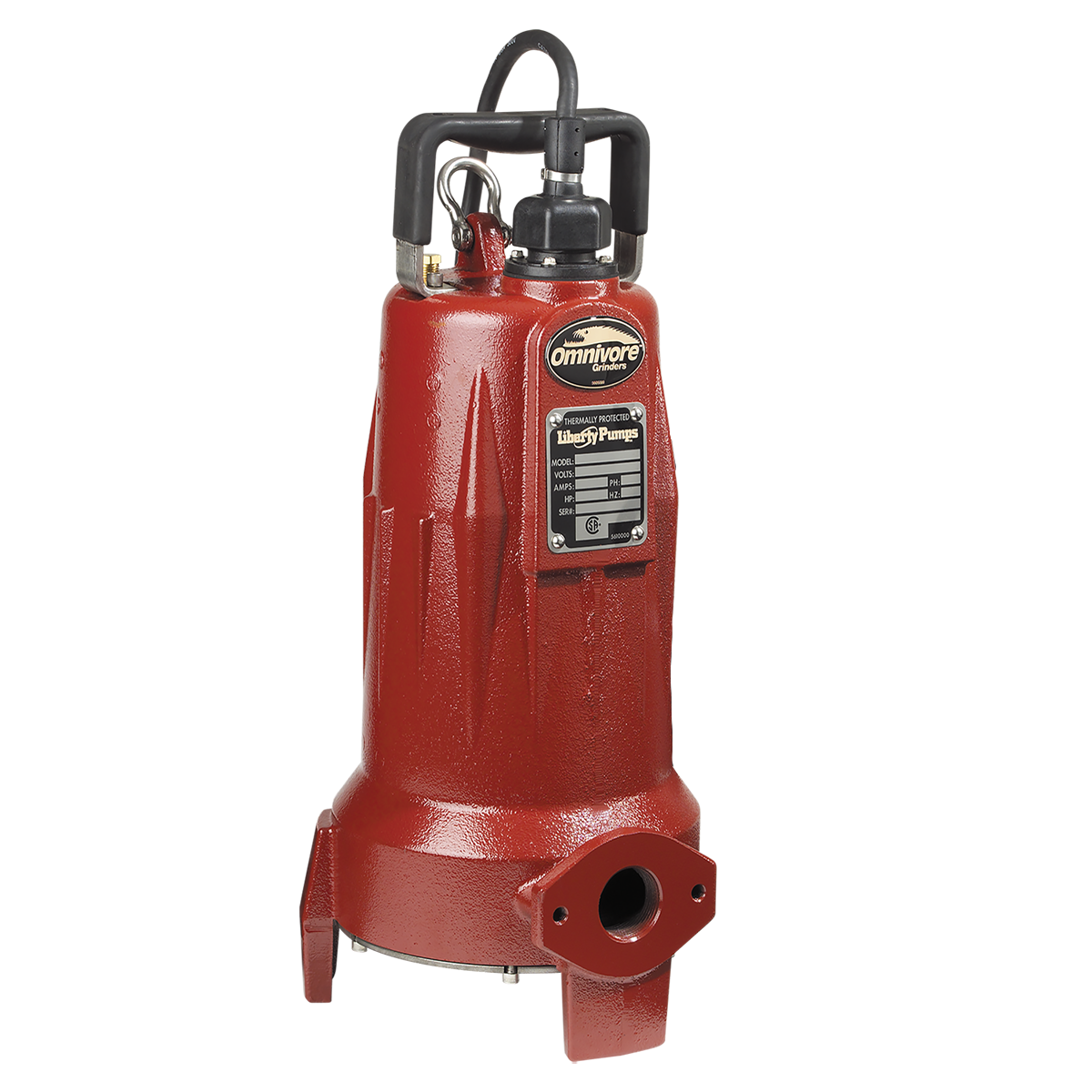

FEATURES Liberty Pump LSG203M is a 2 HP, 208-230v Manual Submersible Grinder Pump (3 Phase) with 25ft quick-disconnect power cord. Liberty's LSG200 Series Omnivore grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. Superior cutting system of the Liberty Grinder Pumps LSG203M provides improved shredding performance over radial cutters. V-pattern provides up to 108 alternated cuts per revolution. In addition, Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. The Liberty LSG203M Grinder Pump features internal capacitors and does not require a separate control panel for operation. Features: 2HP, heavy-duty motor - oil filled Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58 Internal capacitor Upper and lower ball bearings One-piece uni-body cast iron housing 300 Series SS Rotor Shaft 316 Stainless steel impeller Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal) Motor windings insulated to Class B (265°F) New Patented V-Slice cutter technology Horizontal 1-1/4" FNPT Discharge Back vanes on impeller and spiraled bottom plate for superior solids clearing All stainless steel fasteners Clog-free volute design Designed for maximum heat dissipation and cool motor operating temperatures Solid state starting circuit - no mechanical relay coil 25 feet power cord with Quick-Disconnect Control Panel Options Below are Liberty control panels that can be used with this pump. SX34=3-511 AE34=3-511 AE34=4-511 IPS-34-511 IPD-34-511
Motor Curves
