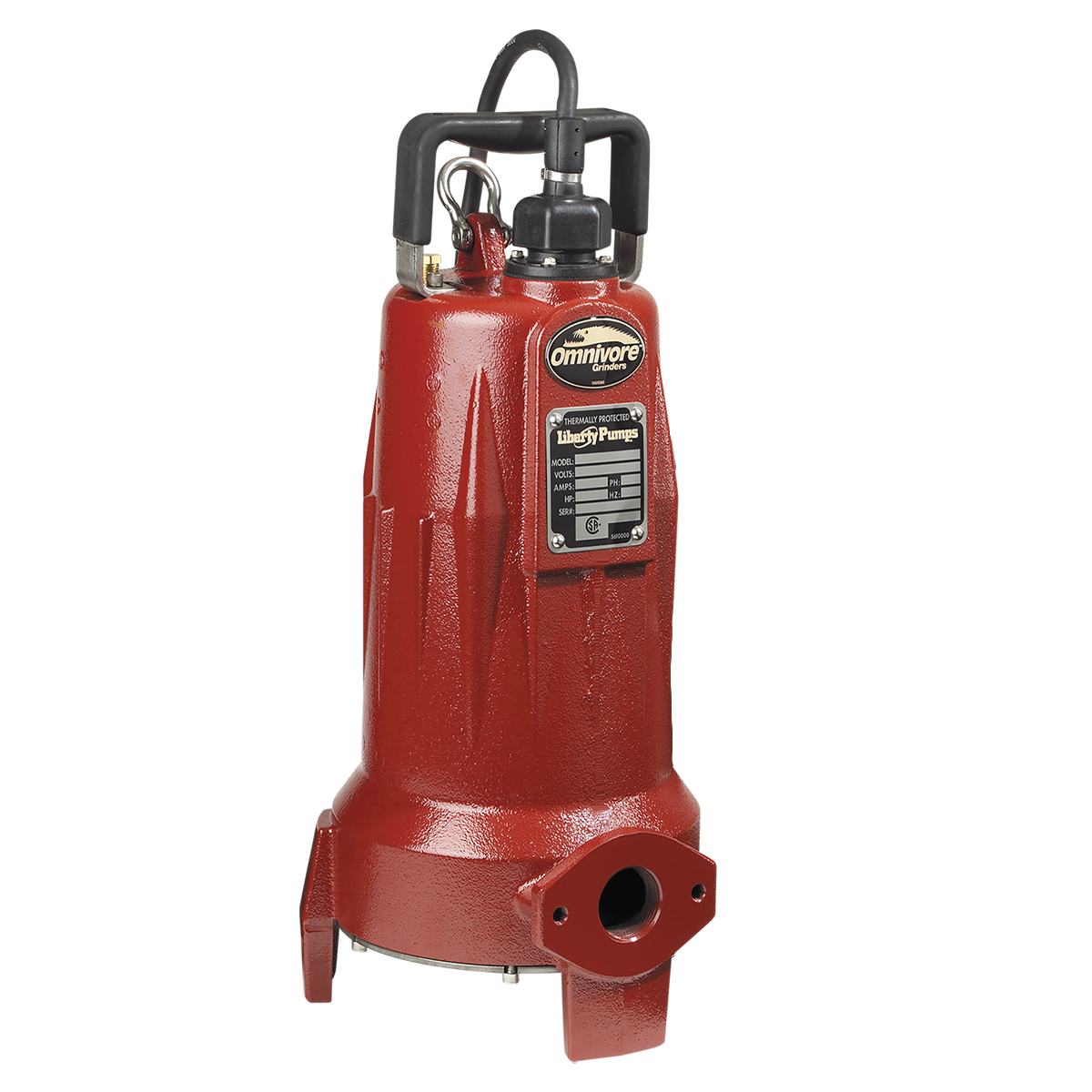

Liberty LSG202M-C, Omnivore Grinder Pump, LSG200 Series, 2 HP, 208-230 Volts, 1 Phase, 1-1/4" Horizontal Discharge, 50 GPM Max, 108 ft Max Head, 35 ft Cord, Manual

This item ships free!
LibertySKU: LSG202M-C

Price:
Sale price$1,930.00
or Call for most up to date lead times. (781) 281-8905

Description

FEATURES The Liberty Pump LSG202M-C is a 2 HP 208-230v Manual Submersible Grinder Pump with 35ft quick-disconnect power cord. The LSG202M-C model is designed in a way that the capacitors and start relay are mounted in a control panel external from the pump. Superior cutting system of the Liberty Grinder Pumps LSG202M-C provides improved shredding performance over radial cutters. V-pattern provides up to 108 alternated cuts per revolution. Liberty's LSG200-Series Omnivore grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. Note: This pump requires a control panel with external capacitor appropriately sized. You can either buy a control panel with external capacitor listed below or you can buy a capacitor P/N K001316 for retrofit in existing panel. Features 2HP, heavy-duty motor - oil filled, thermally protected Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58 External capacitor Upper and lower ball bearings One-piece uni-body cast iron housing 300 Series SS Rotor Shaft 316 Stainless steel impeller Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal) New Patented V-Slice cutter technology Horizontal 1-1/4" FNPT Discharge Back vanes on impeller and spiraled bottom plate for superior solids clearing All stainless steel fasteners Clog-free volute design Designed for maximum heat dissipation and cool motor operating temperatures Solid state starting circuit - no mechanical relay coil Control Panel Options Below are Liberty control panels that can be used with this pump. SXHC24=3-3 AE24HC=3-3 IPS-24HC IPD-24HC

Motor Curves
