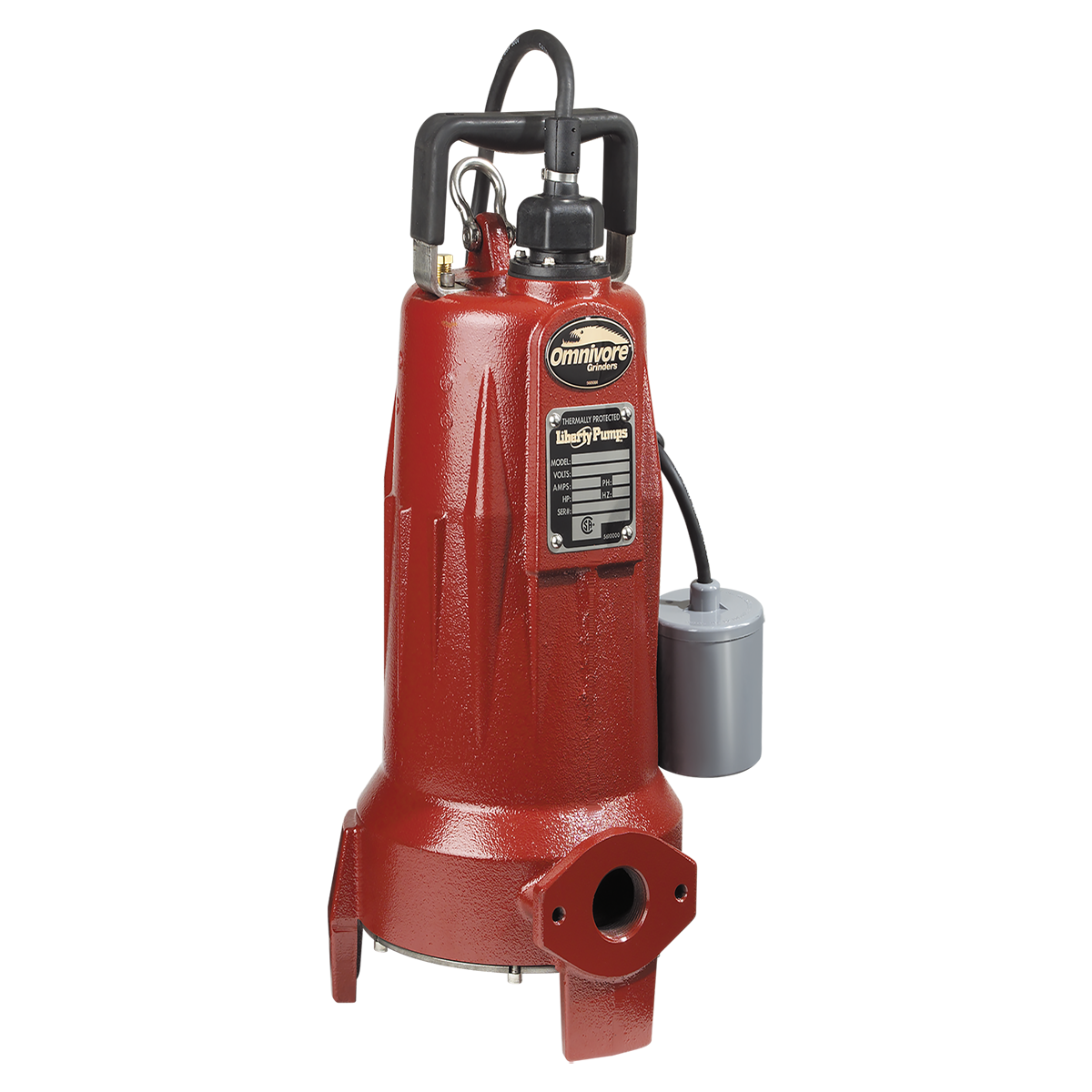

Liberty LSG202A, Omnivore Grinder Pump with Wide Angle Piggyback Float Switch, LSG200 Series, 2 HP, 208-230 Volts, 1 Phase, 1-1/4" Horizontal Discharge, 50 GPM Max, 108 ft Max Head, 25 ft Cord, Automatic

This item ships free!
LibertySKU: LSG202A

Price:
Sale price$1,999.23
or Call for most up to date lead times. (781) 281-8905

Description

FEATURES Liberty Pump LSG202A is a 2 HP, 208-230v Automatic Submersible Grinder Pump with 25ft quick-disconnect power cord and piggyback wide-angle float switch which is adjustable. With a superior cutting system, LSG202A provides improved shredding performance over radial cutters. Liberty's Omnivore grinder LSG200-Series pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. In addition, Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. Features: 2 HP, heavy-duty motor - oil filled, thermally protected Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C 58 Internal capacitor Upper and lower ball bearings One-piece uni-body cast iron housing 300 Series SS Rotor Shaft 316 Stainless steel impeller Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal) Motor windings insulated to Class B (265°F) New Patented V-Slice cutter technology Horizontal 1-1/4" FNPT Discharge Back vanes on impeller and spiraled bottom plate for superior solids clearing All stainless steel fasteners Clog-free volute design Designed for maximum heat dissipation and cool motor operating temperatures Solid state starting circuit - no mechanical relay coil 25' power cord with Quick-Disconnect Piggyback plug with wide angle float eliminates need for expensive panel

Motor Curves
