Louis Allis Ieee 45 Motor, 20 HP, 1800 RPM, 230/460V, 256TC Frame, C-Face, Round Body 460V 60HZ Three Phase 20 HP Cast Iron

This item ships free!
WorldWide ElectricSKU: LAM20-18-256TCRD

Price:
Sale price$1,601.96
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

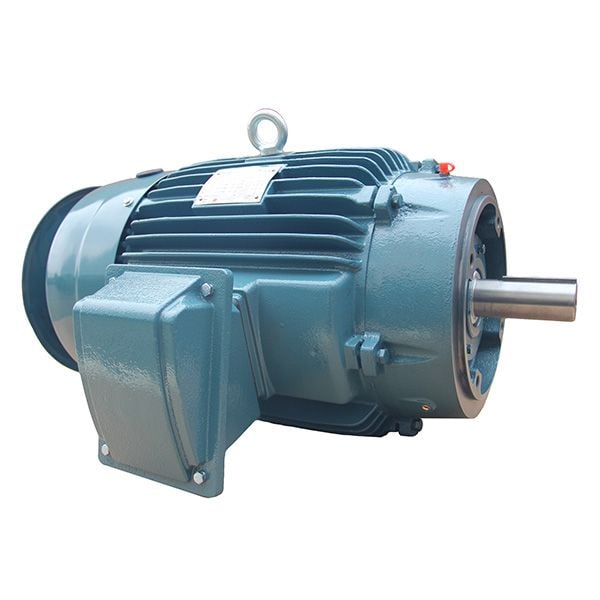

WorldWide Electric Marine Duty Motor - 20 HP

Introducing the WorldWide Electric LAM IEEE 45 Marine Duty Motor, a robust and reliable solution for your marine applications. This 20 HP motor operates at 1800 RPM and is designed for three-phase power with a voltage rating of 230/460V. Built with a 256TC frame and featuring a totally enclosed fan-cooled (TEFC) design, this motor ensures durability and efficiency in demanding environments.

Key features include:

  • Premium Efficiency: Designed to meet high-performance standards.
  • Cast Iron Construction: Provides strength and longevity.
  • C-Face Round Body: Footless mounting for versatile installation options.
  • Marine Severe Duty Rating: Ideal for harsh marine conditions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SKU: LAM20-18-256TCRD. If you encounter any difficulties, our team is here to help you find the perfect solution.

Category Electric Motors
Degree of Protection IP55
Enclosure Type TEFC
Frame Size 256TCRD
Horsepower 20
Insulation Class Class F
Mounting Type C-Face Round Body (Footless)
NEMA Design B
RPM 1800
Service Factor 1.25
Voltage 230/460
