Louis Allis Ieee 45 Motor, 100 HP, 1200 RPM, 230/460V, 444T Frame, Rigid Base 460V 60HZ Three Phase 100 HP Cast Iron

This item ships free!
WorldWide ElectricSKU: LAM100-12-444T

Price:
Sale price$8,515.03
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Marine Duty Motor - 100 HP

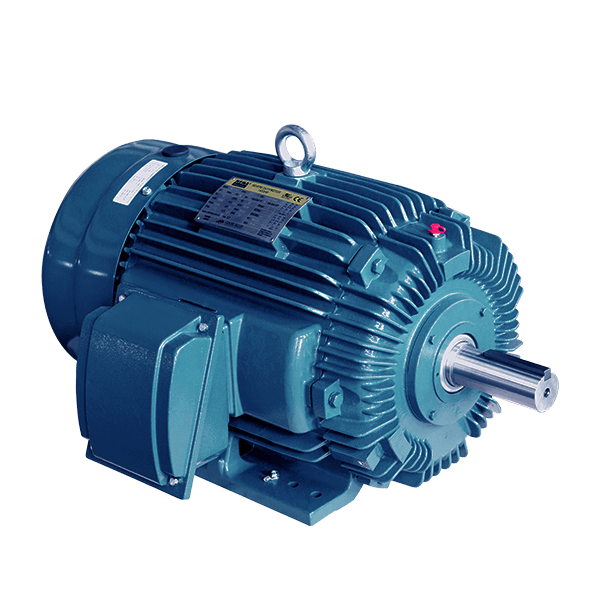

Introducing the WorldWide Electric LAM IEEE 45 Marine Duty Motor, a robust and reliable solution for your marine applications. This 100 HP motor operates at 1200 RPM and is designed for three-phase power with a voltage rating of 230/460V. Built with a 444T frame and constructed from durable cast iron, this motor ensures longevity and premium efficiency.

Key features include:

  • Type: Marine Duty
  • Service Factor: 1.25 SF
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Frequency: 60 Hz
  • Mounting: Rigid Base

This motor is ideal for severe duty applications, providing the reliability and performance you need in challenging environments. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

Supplier Part Number 8501.52.8040
Degree of Protection IP55
Enclosure Type TEFC
Frame Size 444T
Horsepower 100
Insulation Class Class F
Mounting Type Rigid Base
NEMA Design B
RPM 1200
Service Factor 1.25
Voltage 230/460

Motor Curves
