Grundfos 96556429 - LiqTec, 1/2"

Save $327.00 This item ships free!
GRUNDFOSSKU: 96556429

Price:
Sale price$1,308.00 Regular price$1,635.00
or Call for most up to date lead times. (781) 281-8905

Description

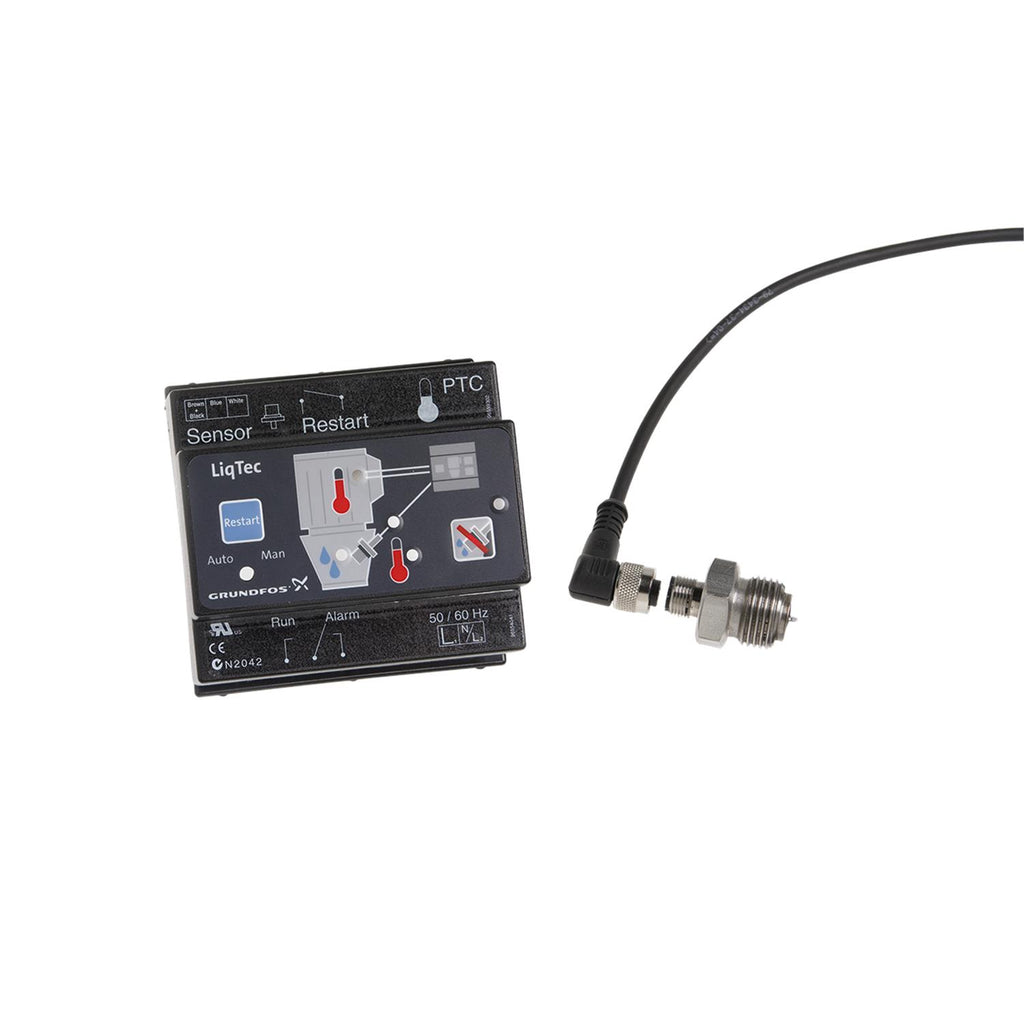

LiqTec, 1/2" The LiqTec protects the pump against dry-running.
protects the pump against too high liquid temperature (130°C ±5°C).
can monitor the motor temperature if the PTC sensor in the motor has been connected.
has a fail-safe design. If the sensor, sensor cable, electronic unit or power supply fails, the pump stops immediately. The LiqTec can be fitted to a DIN rail to be incorporated in a control cabinet.

EAN 5700398997023
Approvals CU
Enclosure class (IEC 34-5) IP X0
Length of cable 5 m
Mains frequency 50 Hz
Material Pricing Group 38
Maximum ambient temperature 131 °F
Maximum liquid temperature 248 °F
Maximum operating pressure 40 bar
Product family LiqTec
Rated voltage x 200-240 V
Real Time 1 Available on 10/13/2023 Plant: Fresno  Update with real time availability and Net price
Danish VVS No. 385769800
Swedish RSK No. 5824758

Motor Curves

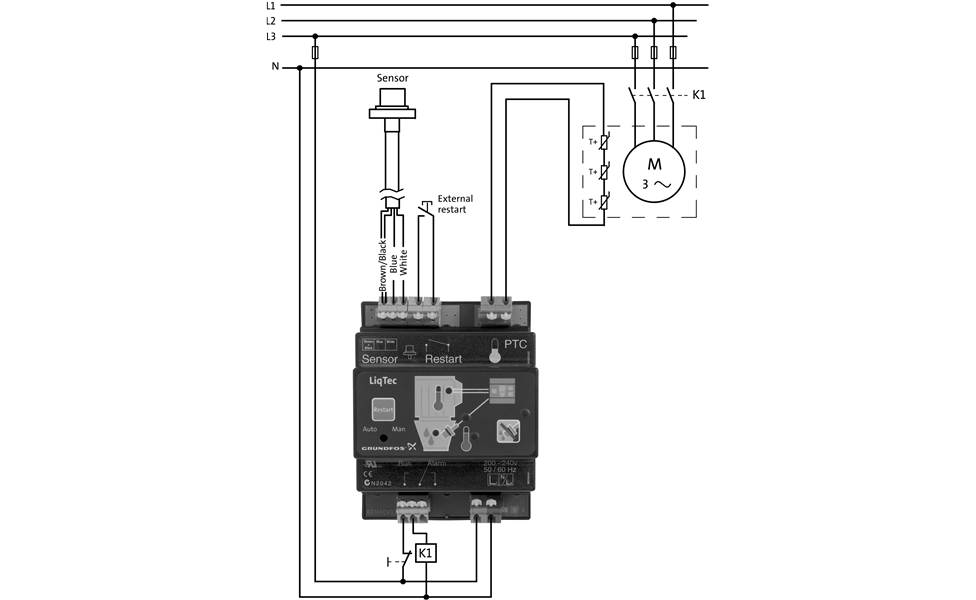

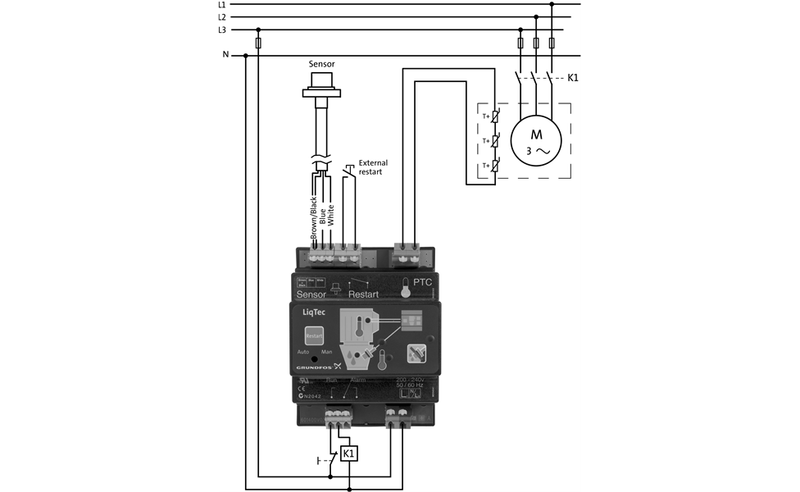

DWiring Diagram
