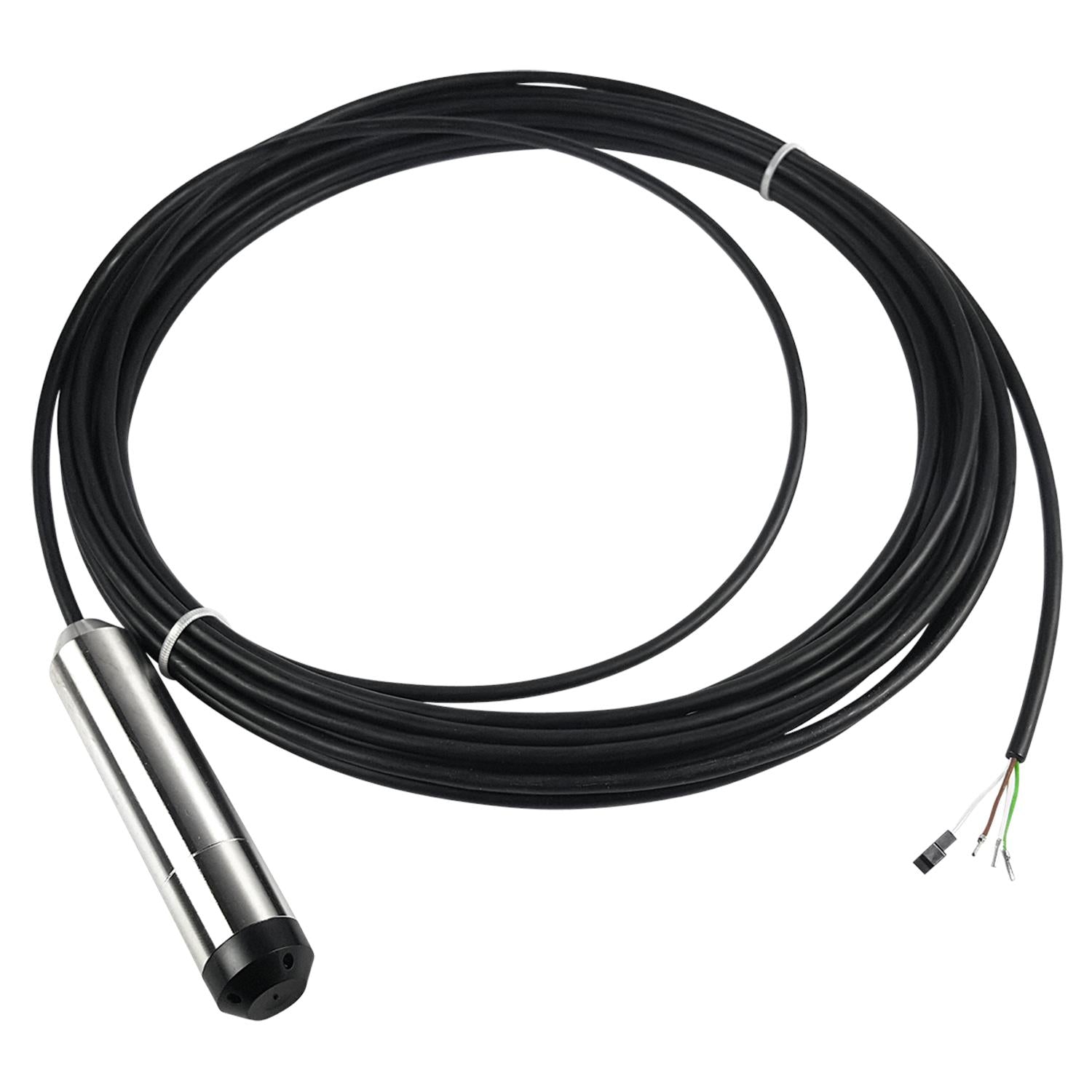

Grundfos 98991652 - Level transmitter SITRANS LH100 0-10m c25m STD

GRUNDFOSSKU: 98991652

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98991652 is a SITRANS LH100 level transmitter for 0–10 m measurements, suited for industrial fluid level monitoring and control. Operators and maintenance technicians use this transmitter for tank and sump level sensing.

Key features

  • Compact SITRANS LH100 design for reliable continuous level measurement up to 10 m
  • Fits Level Sensors and Sensor Transmitter and Switches applications from the Grundfos controls category
  • Provides stable analog output for easy integration with control systems and PLCs

Applications

General tank, reservoir, pump station, and process level monitoring where continuous level feedback is required; suitable for industrial and municipal systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98991652

EAN 5712604818831
Approvals on nameplate CE
Cable included (Yes/No) Y
Cable surface PE-HD
Enclosure Stainless steel
Enclosure class (IEC 34-5) IP68
Gasket FPM
Gross weight 2.49 lb
Length of cable 25 m
Liquid temperature range 14 .. 176 °F
Material Pricing Group 91
Measuring range 0-10 m
Net weight 1.83 lb
Pressure relative functionality (Yes/No) Y
Range of ambient temperature 14 .. 176 °F
Rated voltage dc 33.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Signal output 4-20mA 2 wires
Water level measuring range 0-10 m
