Description

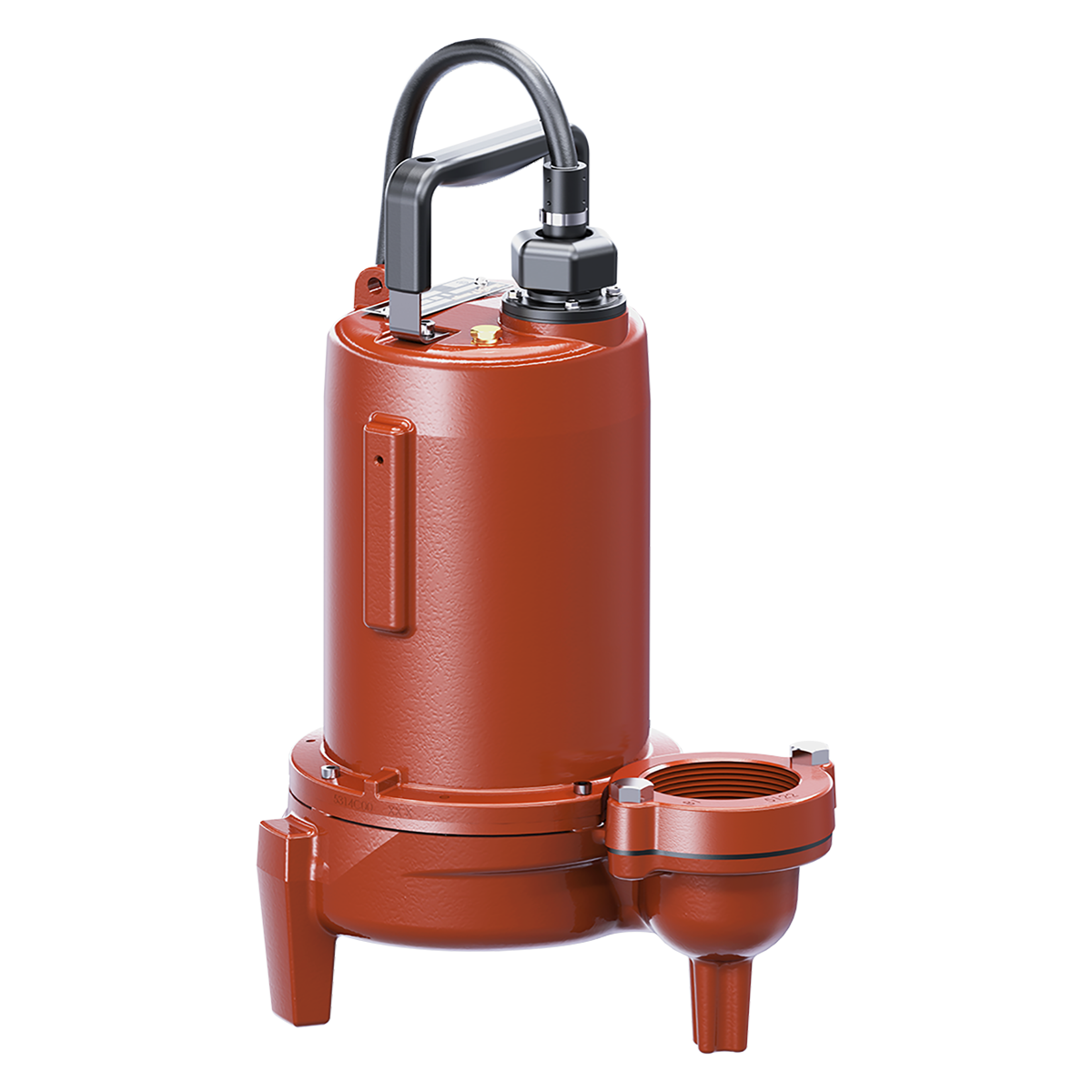

FEATURES Liberty LEH100 Sewage Pump This is a high head sewage pump that can reach up to 53 feet. It is designed to handle residential sewage containing up to 2-inch solids. Note : This pump requires a minimum application of 15 feet head. For applications with lower heads, use a smaller pump. Features: Maximum flow of 197 GPM @ 15 feet of total dynamic head Rugged 2 vane, semi-open cast iron impeller Cast iron housing and volute with all stainless and brass fasteners 416 stainless steel rotor shaft Oil-filled, hermetically sealed motor Built-in thermal protection Permanently lubricated upper and lower ball bearings Unitized shaft seals Adjustable pumping range Quick-disconnect power cord allows replacement of cord in seconds without breaking seals to motor Control Panel Options Below are Liberty control panels that can be used with this pump. SXL21=3 SXL24=3 AE21L=3 AE21L=4 AE24L=3 AE24L=4 IPS-24L IPD-24L
Motor Curves
