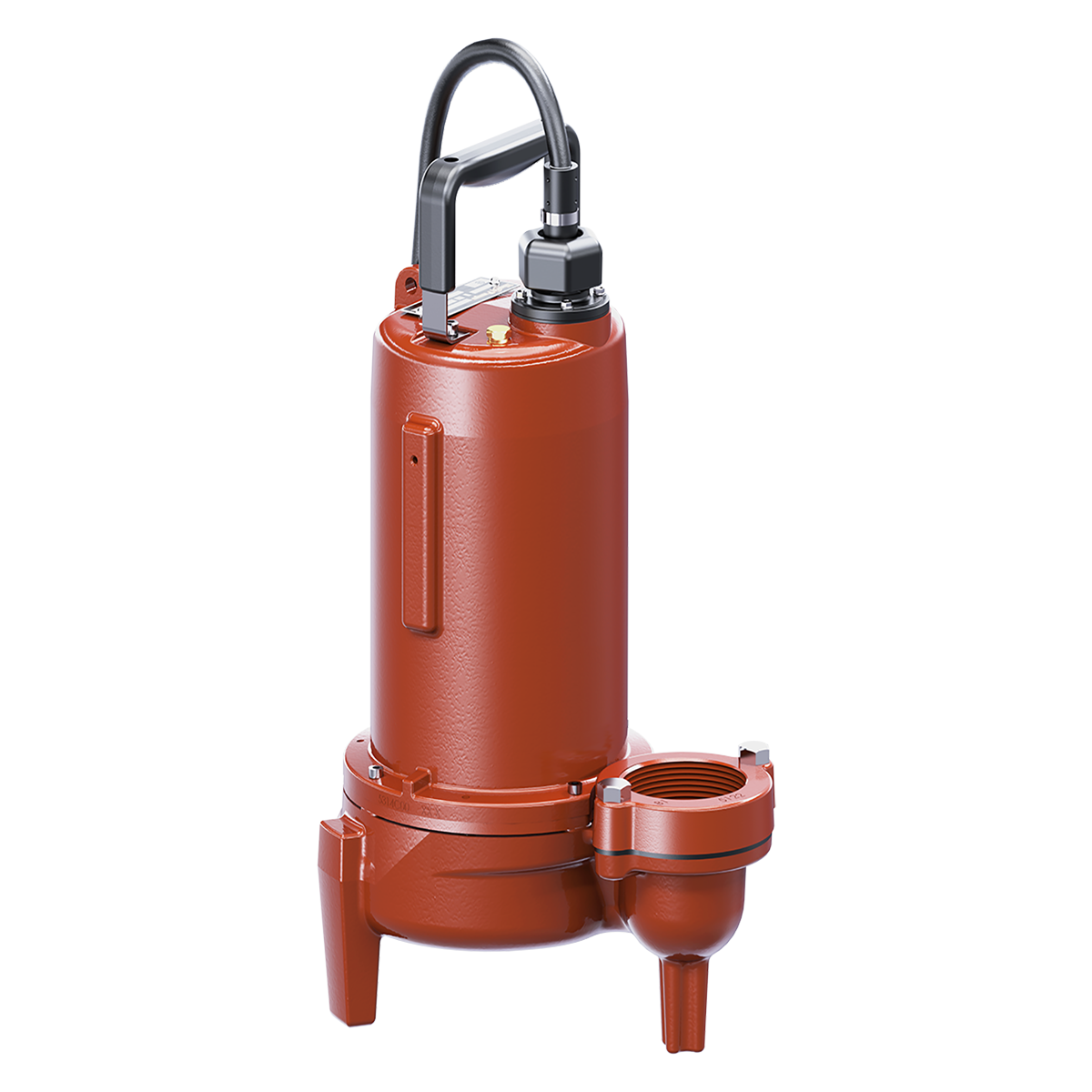

Liberty LE73M3-2, LE70 Series, Manual Submersible Sewage Pump, 3/4 HP, 208-230 Volts, 3 Phase, 3" Flanged Discharge, 158 GPM Max, 29 ft Max Head, 25 ft Cord

This item ships free!
LibertySKU: LE73M3-2

Price:
Sale price$1,201.54
or Call for most up to date lead times. (781) 281-8905

Description

FEATURES The Liberty Pump LE73M3-2 is a 3-phase, 3/4 HP, 230v manual submersible sewage pump with a 25' quick-disconnect power cord. A separate approved pump control device or panel is required for automatic operation. Featuring rugged 2-vane, semi-open impellers, this allows for handling of 2" solids. Liberty Pumps 3-Phase models require panel for automatic operation. Check three phase pumps for proper rotation prior to installing pumps in basin. To change rotation, reverse any two of the three power leads to the pump. Features: Rugged 2 vane, semi-open cast iron impellers Cast iron housings and volute with all stainless and brass fasteners 416 stainless steel rotor shaft Oil-filled, hermetically sealed motors Built-in thermal protection on single phase models Permanently lubricated upper and lower ball bearings Unitized shaft seals Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models Adjustable pumping range Control Panel Options Below are Liberty control panels that can be used with this pump. SX34=3-171 AE34=3-171 AE34=4-171 IPS-34-171 IPD-34-171

Motor Curves
