Description

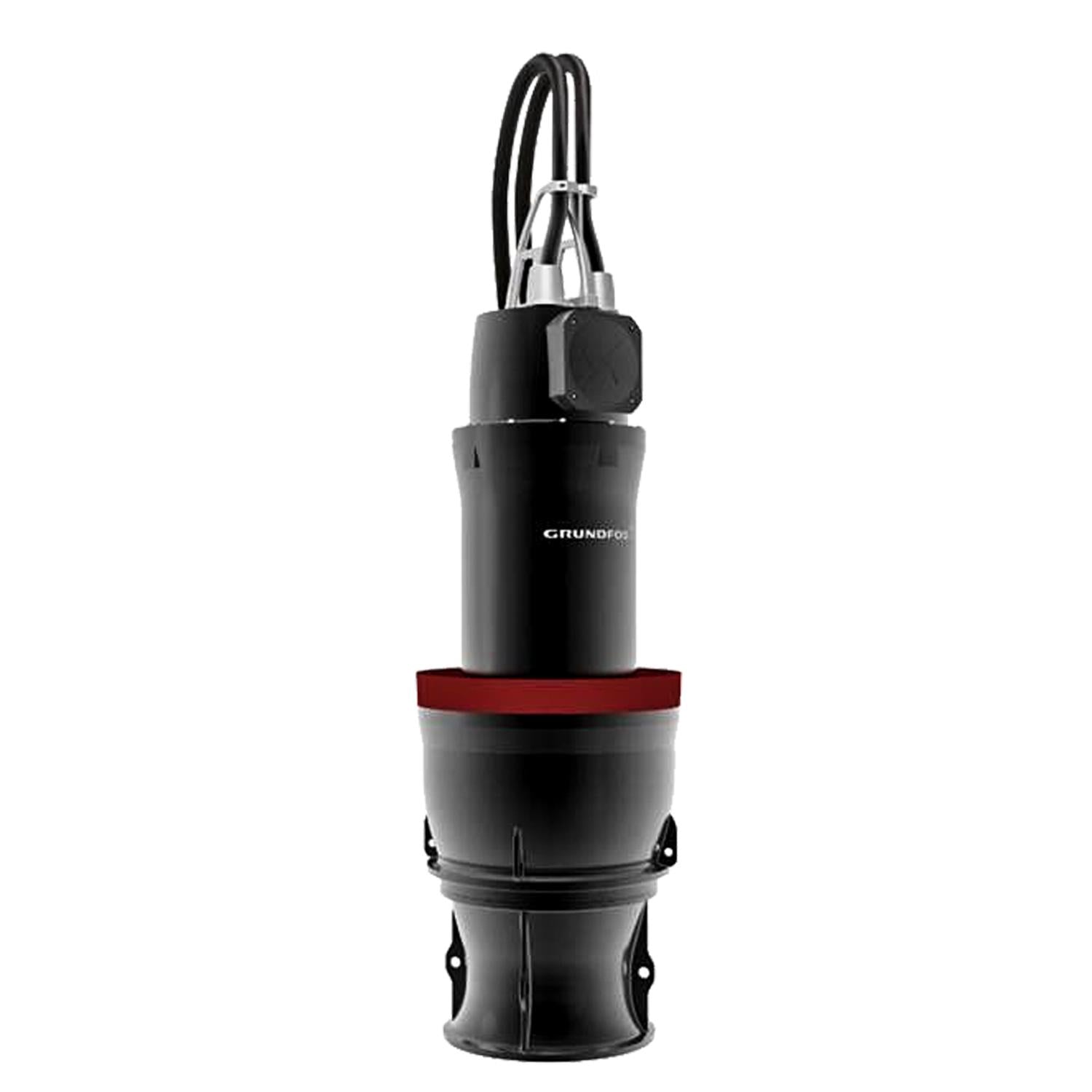

Grundfos 99553354 - KWM.64.730.18.T.60.1125.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830935149
Applications
Wastewater
Motor efficiency at full load 1
0.92
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
597.9 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
11880 lb ft²
Length of sensor cable
10 m
Maximum current consumption
1020 A
Starting current
5620 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
31200 Nm
Motor efficiency at 1/2 load
0.919
Built-in motor protection
PTO/PT100
Net weight
24100.0 lb
Number of poles
18
Rated speed
390 rpm
Gross weight
26100.0 lb
Rated power - P2
550 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.92
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
3
Max starts per hour
10
Cos phi 1/1
73.5
Approvals
CE
Rated flow
61700 US gpm
Maximum flow
4980 l/s
Minimum flow
2660 l/s
Diameter
44.3 in
Power 1
597.9 kW
Maximum head
42.98 ft
Housing
Cast iron
Cos phi 1/2
60.7
Rated head
37.08 ft
Actual impeller diameter
44.3 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
70.2
Max. Particle
150 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
Motor Curves
