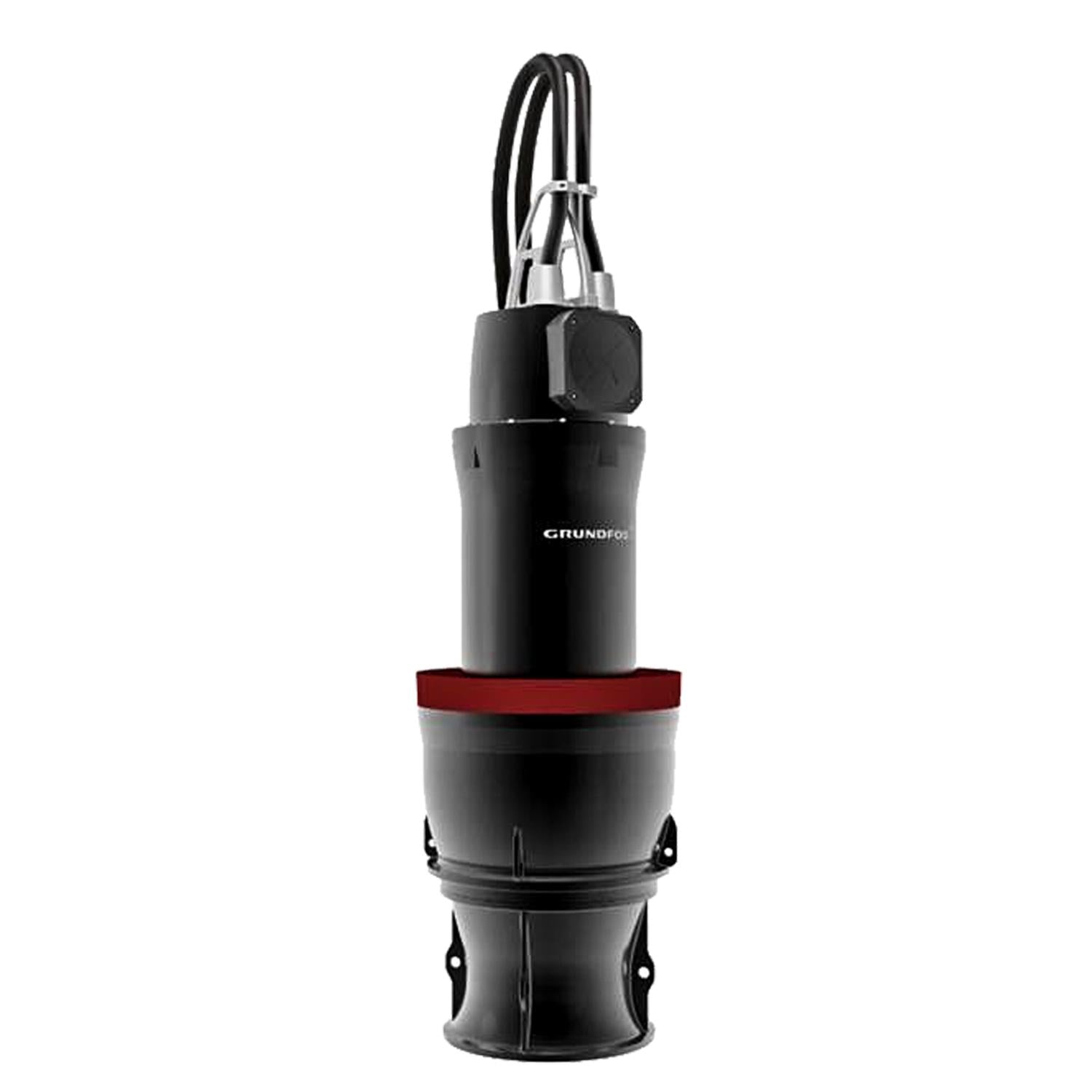

![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
![Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46]()
Description
Grundfos 99553327 - KWM.56.800.12.T.60.895.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934869
Applications
Wastewater
Motor efficiency at full load 1
0.929
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
645.9 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
11890 lb ft²
Length of sensor cable
10 m
Maximum current consumption
992 A
Starting current
4960 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
21800 Nm
Motor efficiency at 1/2 load
0.928
Built-in motor protection
PTO/PT100
Net weight
16200.0 lb
Number of poles
12
Rated speed
585 rpm
Gross weight
17800.0 lb
Rated power - P2
600 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.929
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
3
Max starts per hour
10
Cos phi 1/1
81.7
Approvals
CE
Rated flow
50400 US gpm
Maximum flow
3710 l/s
Minimum flow
1870 l/s
Diameter
35.2 in
Power 1
645.9 kW
Maximum head
61.68 ft
Housing
Cast iron
Cos phi 1/2
66.7
Rated head
46.92 ft
Actual impeller diameter
35.2 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
76.9
Max. Particle
115 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
Motor Curves
