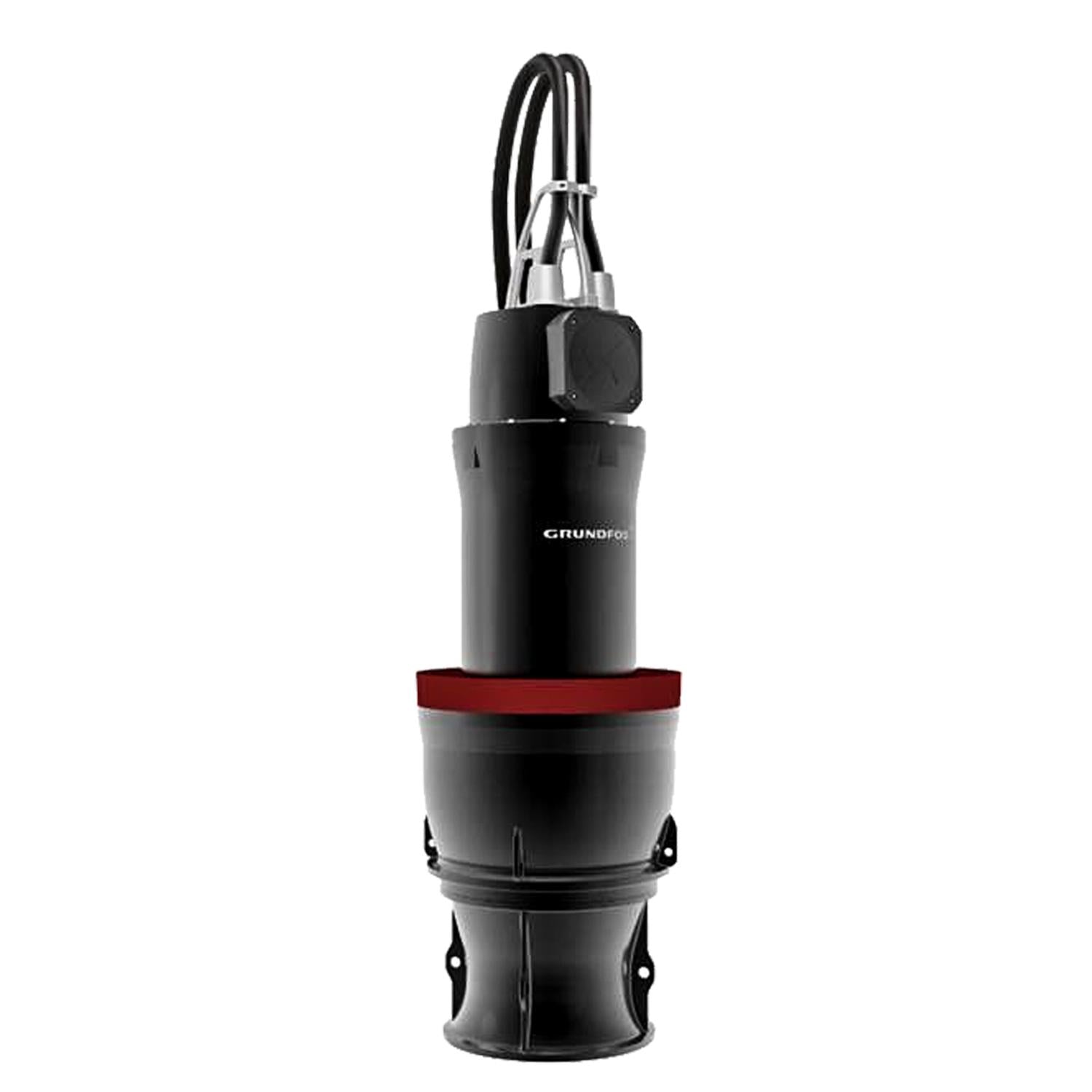

Image shown may not be actual product
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
![Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46]()
Description
Grundfos 99553326 - KWM.56.730.12.T.60.895.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934852
Applications
Wastewater
Motor efficiency at full load 1
0.929
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
592.1 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
11120 lb ft²
Length of sensor cable
10 m
Maximum current consumption
915 A
Starting current
4580 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
20600 Nm
Motor efficiency at 1/2 load
0.928
Built-in motor protection
PTO/PT100
Net weight
15600.0 lb
Number of poles
12
Rated speed
585 rpm
Gross weight
17200.0 lb
Rated power - P2
550 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.929
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
3
Max starts per hour
10
Cos phi 1/1
81.2
Approvals
CE
Rated flow
50400 US gpm
Maximum flow
3710 l/s
Minimum flow
2870 l/s
Diameter
35.2 in
Power 1
592.1 kW
Maximum head
54.14 ft
Housing
Cast iron
Cos phi 1/2
65.2
Rated head
46.92 ft
Actual impeller diameter
35.2 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
75.8
Max. Particle
115 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
Motor Curves
