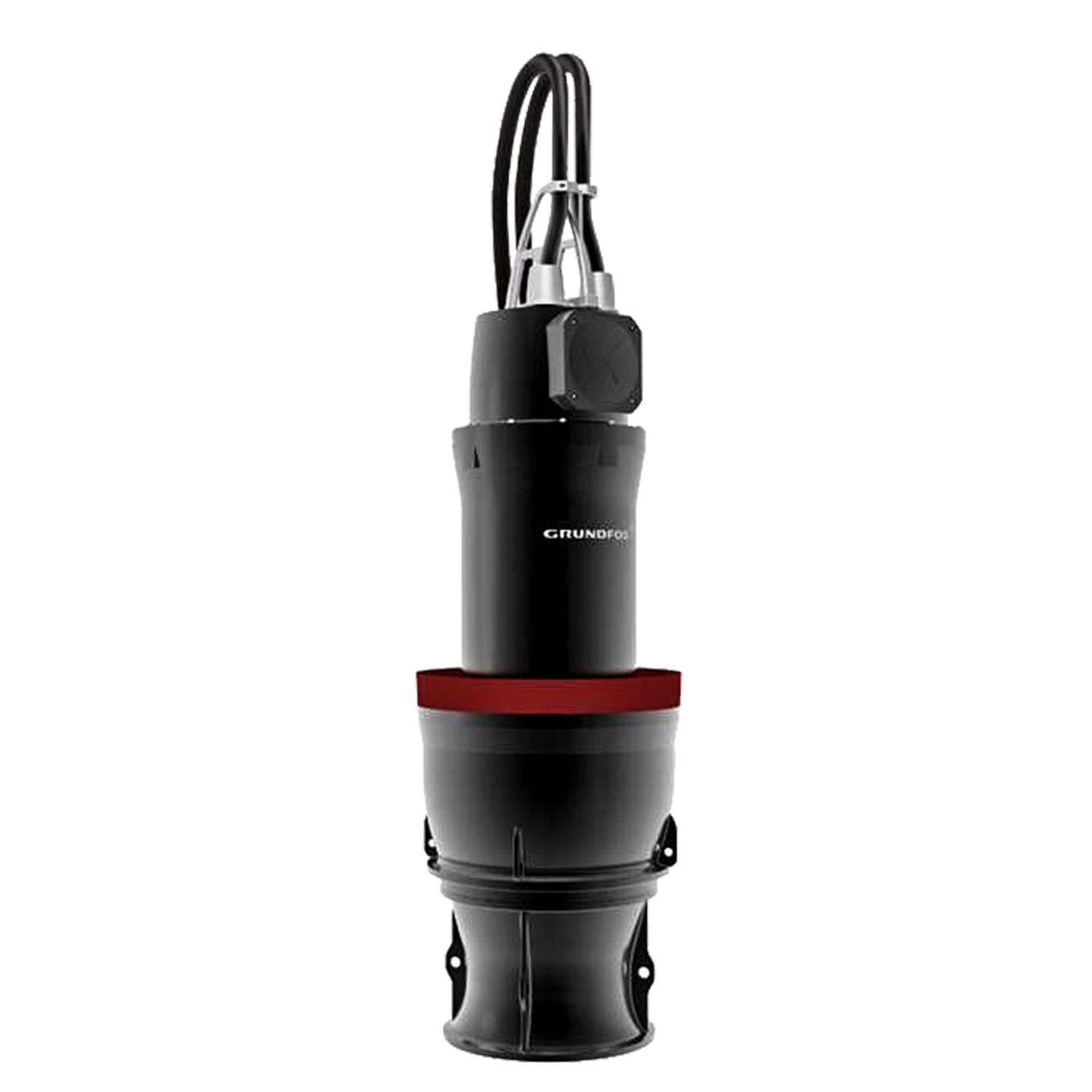

![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
![Grundfos 99553325 - KWM.56.730.12.T.60.880.M.46]()
Description
The KPL (submersible axialflow propeller pumps) and KWM (submersible mixedflow pumps), are a pump range specifically designed for column installation from 20" to 72". | The KPL and KWM pumps are designed for applications such as:
EAN
5713830934845
Applications
Wastewater
Motor efficiency at full load 1
0.929
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
592.1 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
11120 lb ft²
Length of sensor cable
10 m
Maximum current consumption
915 A
Starting current
4580 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
20600 Nm
Motor efficiency at 1/2 load
0.928
Built-in motor protection
PTO/PT100
Net weight
15600.0 lb
Number of poles
12
Rated speed
585 rpm
Gross weight
17200.0 lb
Rated power - P2
550 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.929
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
3
Max starts per hour
10
Cos phi 1/1
81.2
Approvals
CE
Rated flow
47200 US gpm
Maximum flow
3520 l/s
Minimum flow
1820 l/s
Diameter
34.6 in
Power 1
592.1 kW
Maximum head
57.75 ft
Housing
Cast iron
Cos phi 1/2
65.2
Rated head
43.31 ft
Actual impeller diameter
34.6 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
75.8
Max. Particle
115 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
