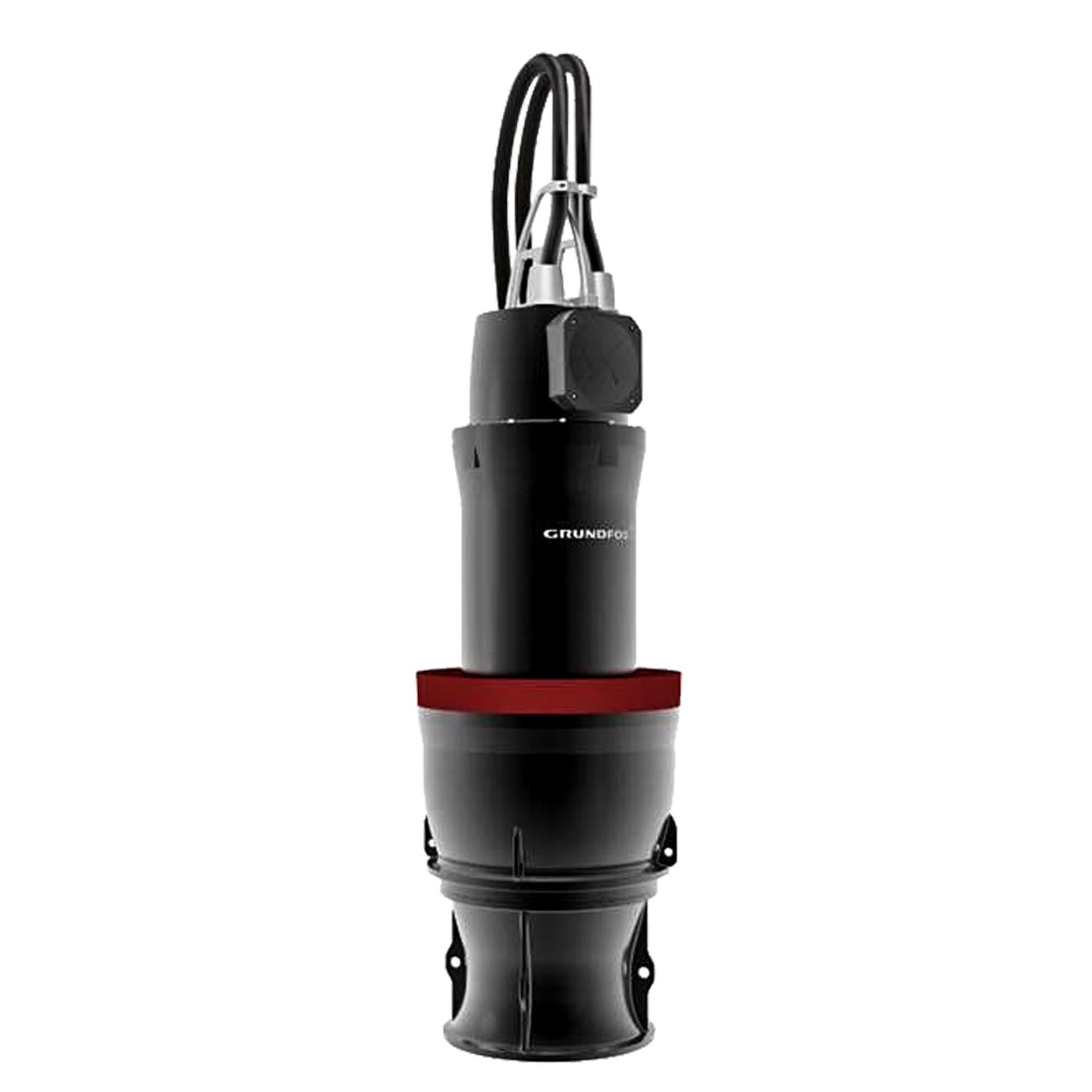

![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
![Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46]()
Description
Grundfos 99553329 - KWM.56.400.14.T.60.865.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934883
Applications
Wastewater
Motor efficiency at full load 1
0.922
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
325.4 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
5596 lb ft²
Length of sensor cable
10 m
Maximum current consumption
531 A
Starting current
2660 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
14800 Nm
Motor efficiency at 1/2 load
0.92
Built-in motor protection
PTO/PT100
Net weight
14600.0 lb
Number of poles
14
Rated speed
500 rpm
Gross weight
16100.0 lb
Rated power - P2
300 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.921
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
2
Max starts per hour
10
Cos phi 1/1
76.9
Approvals
CE
Rated flow
36500 US gpm
Maximum flow
2840 l/s
Minimum flow
1810 l/s
Diameter
34.1 in
Power 1
325.4 kW
Maximum head
39.37 ft
Housing
Cast iron
Cos phi 1/2
59.4
Rated head
32.81 ft
Actual impeller diameter
34.1 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
70.6
Max. Particle
115 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
