Image shown may not be actual product
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
![Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46]()
Description

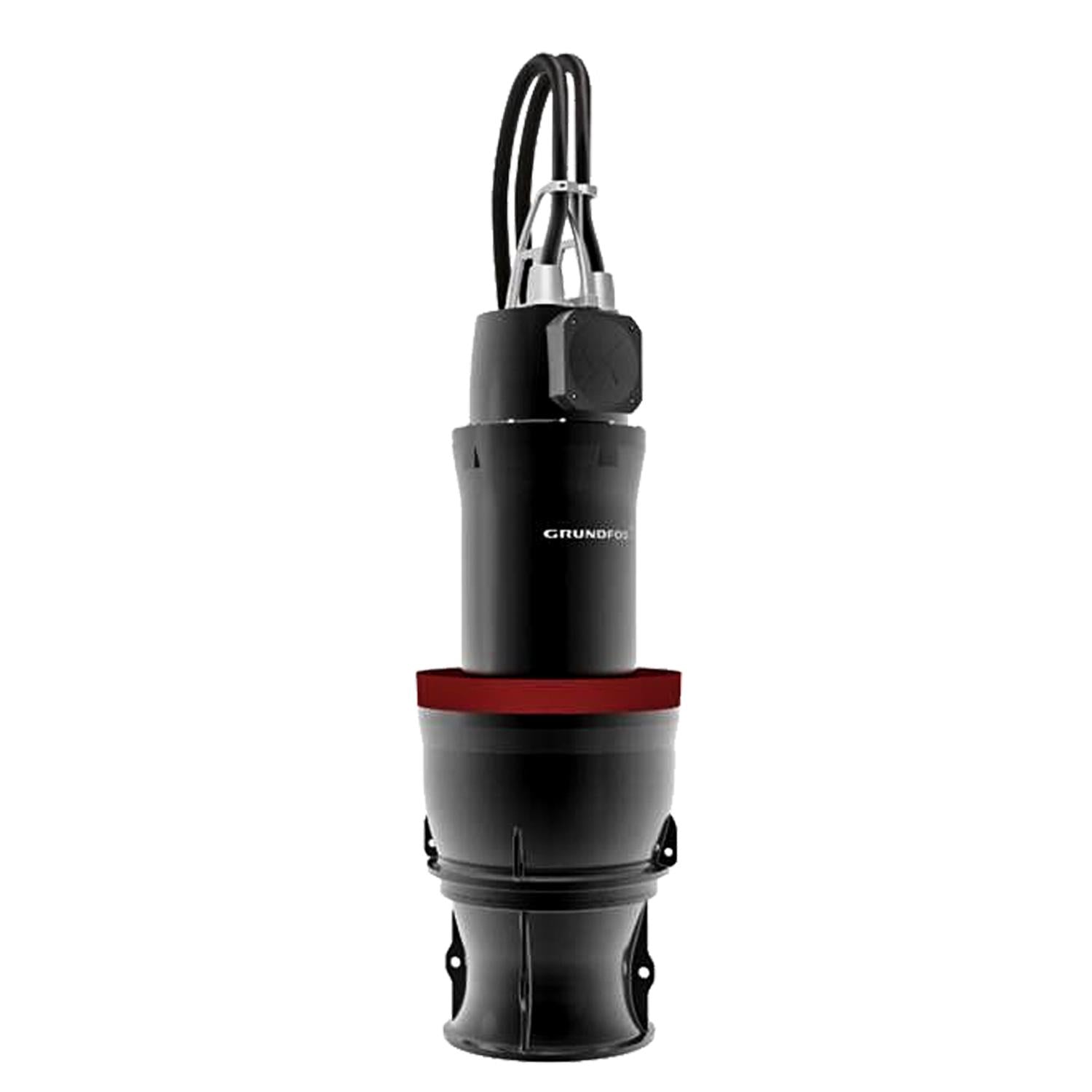

Grundfos 99553312 - KWM.48.470.10.T.60.740.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934715
Applications
Wastewater
Motor efficiency at full load 1
0.929
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
376.8 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
3363 lb ft²
Length of sensor cable
10 m
Maximum current consumption
563 A
Starting current
2820 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
11200 Nm
Motor efficiency at 1/2 load
0.921
Built-in motor protection
PTO/PT100
Net weight
10700.0 lb
Number of poles
10
Rated speed
700 rpm
Gross weight
11800.0 lb
Rated power - P2
350 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.928
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
2
Max starts per hour
10
Cos phi 1/1
84
Approvals
CE
Rated flow
31000 US gpm
Maximum flow
2510 l/s
Minimum flow
1210 l/s
Diameter
29.1 in
Power 1
376.8 kW
Maximum head
52.17 ft
Housing
Cast iron
Cos phi 1/2
71.2
Rated head
44.29 ft
Actual impeller diameter
29.1 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
80.2
Max. Particle
125 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
Motor Curves
