Description

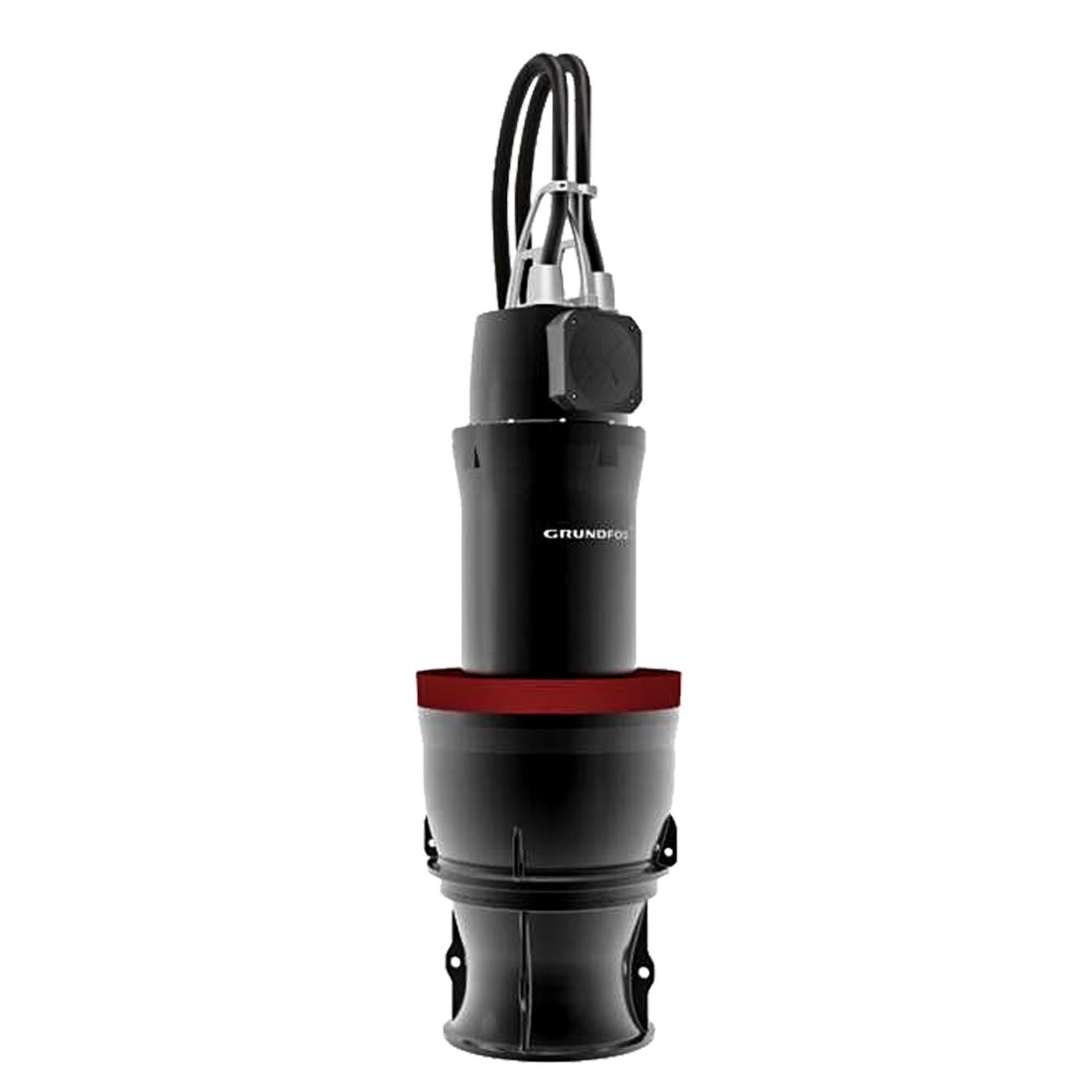

Grundfos 99553310 - KWM.40.335.10.T.60.670.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934692
Applications
Wastewater
Motor efficiency at full load 1
0.926
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
270 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
1815 lb ft²
Length of sensor cable
10 m
Maximum current consumption
418 A
Starting current
2090 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
8170 Nm
Motor efficiency at 1/2 load
0.912
Built-in motor protection
PTO/PT100
Net weight
8580.0 lb
Number of poles
10
Rated speed
700 rpm
Gross weight
9520.0 lb
Rated power - P2
250 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.924
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
2
Max starts per hour
10
Cos phi 1/1
81
Approvals
CE
Rated flow
23500 US gpm
Maximum flow
1890 l/s
Minimum flow
1080 l/s
Diameter
26.4 in
Power 1
270 kW
Maximum head
45.28 ft
Housing
Cast iron
Cos phi 1/2
66.4
Rated head
39.04 ft
Actual impeller diameter
26.4 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
76.4
Max. Particle
100 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
Motor Curves
