Description

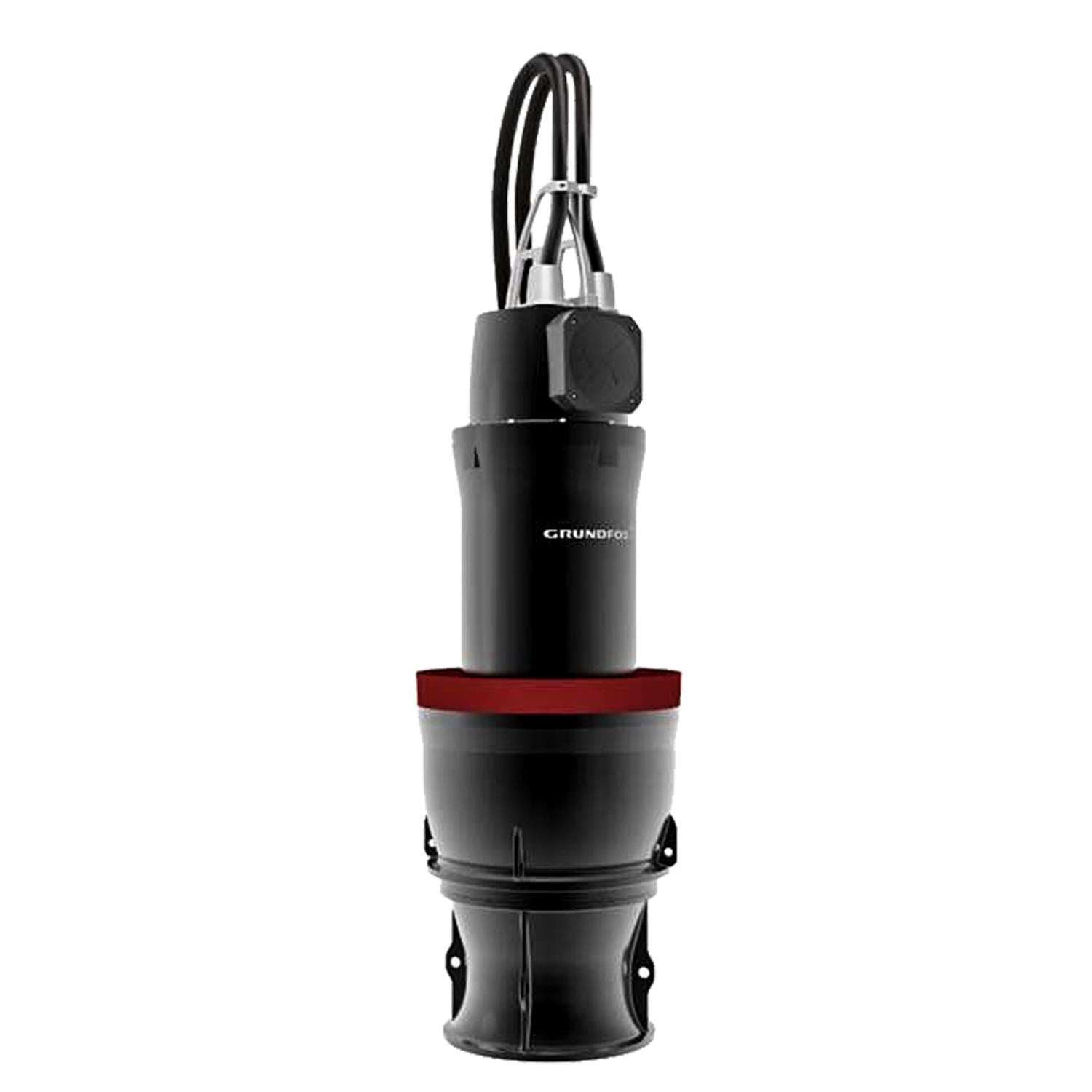

Grundfos 99553305 - KWM.36.300.8.T.60.560.M.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830934647
Applications
Wastewater
Motor efficiency at full load 1
0.921
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
238.9 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
1322 lb ft²
Length of sensor cable
10 m
Maximum current consumption
360 A
Starting current
1980 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
6110 Nm
Motor efficiency at 1/2 load
0.903
Built-in motor protection
PTO/PT100
Net weight
6280.0 lb
Number of poles
8
Rated speed
875 rpm
Gross weight
6890.0 lb
Rated power - P2
220 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.92
Cable type
PNCTR-S
Service factor
1.15
Power cable type
PNCTR-S
Length of power cable
10 m
Number of power cables
2
Max starts per hour
10
Cos phi 1/1
83.3
Approvals
CE
Rated flow
18200 US gpm
Maximum flow
1430 l/s
Minimum flow
755 l/s
Diameter
22 in
Power 1
238.9 kW
Maximum head
54.14 ft
Housing
Cast iron
Cos phi 1/2
68.5
Rated head
45.93 ft
Actual impeller diameter
22 in
Type of impeller
Open impeller
Type
PNCTR-S
Cos phi 3/4
78.6
Max. Particle
70 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
3
