Description

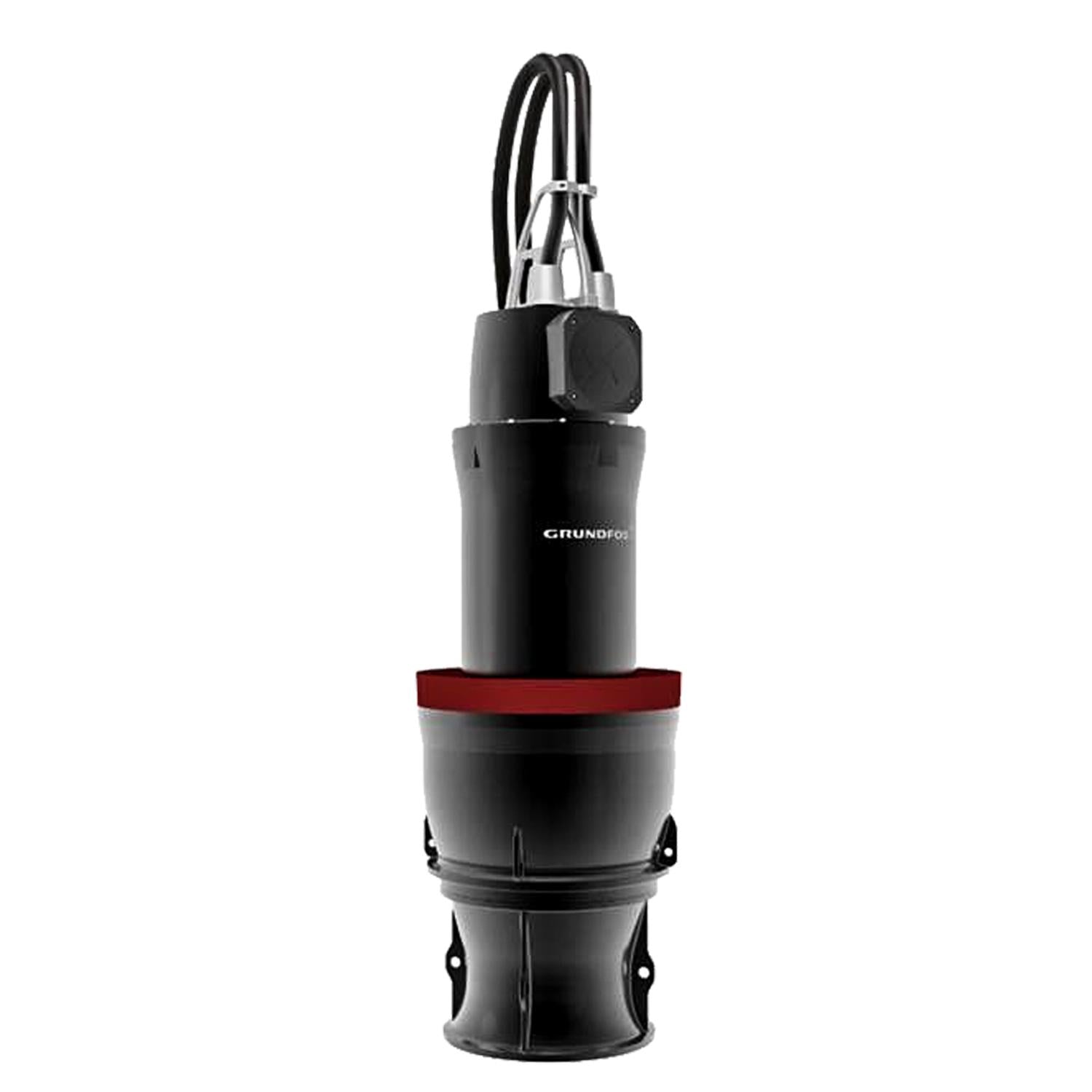

Grundfos 99553362 - KWM.28.60.6.T.60.375.H.46 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713830935224
Applications
Wastewater
Motor efficiency at full load 1
0.895
Maximum ambient temperature
104 °F
Density
62.29 lb/ft³
Maximum operating pressure
10 bar
Power input P1
50.3 kW
Moisture switch
Y
Rated voltage
3 x 460 V
Moment of inertia
168.5 lb ft²
Length of sensor cable
10 m
Maximum current consumption
77 A
Starting current
431 A
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Breakdown torque
898 Nm
Motor efficiency at 1/2 load
0.87
Built-in motor protection
PTO/PT100
Net weight
2070.0 lb
Number of poles
6
Rated speed
1165 rpm
Gross weight
2430.0 lb
Rated power - P2
45 kW
Enclosure class (IEC 34-5)
IP68
Motor efficiency at 3/4 load
0.89
Cable type
PNCT-S
Service factor
1.15
Power cable type
PNCT-S
Length of power cable
10 m
Number of power cables
1
Max starts per hour
15
Cos phi 1/1
82
Approvals
CE
Rated flow
5550 US gpm
Maximum flow
446 l/s
Minimum flow
228 l/s
Diameter
14.8 in
Power 1
50.3 kW
Maximum head
41.67 ft
Housing
Cast iron
Cos phi 1/2
64.5
Rated head
33.14 ft
Actual impeller diameter
14.8 in
Type of impeller
Closed impeller
Type
PNCT-S
Cos phi 3/4
76
Max. Particle
50 mm
Impeller
DUCTILE IRON
Pump housing
Cast iron
Switch
Y
No. of blades
4
Motor Curves
