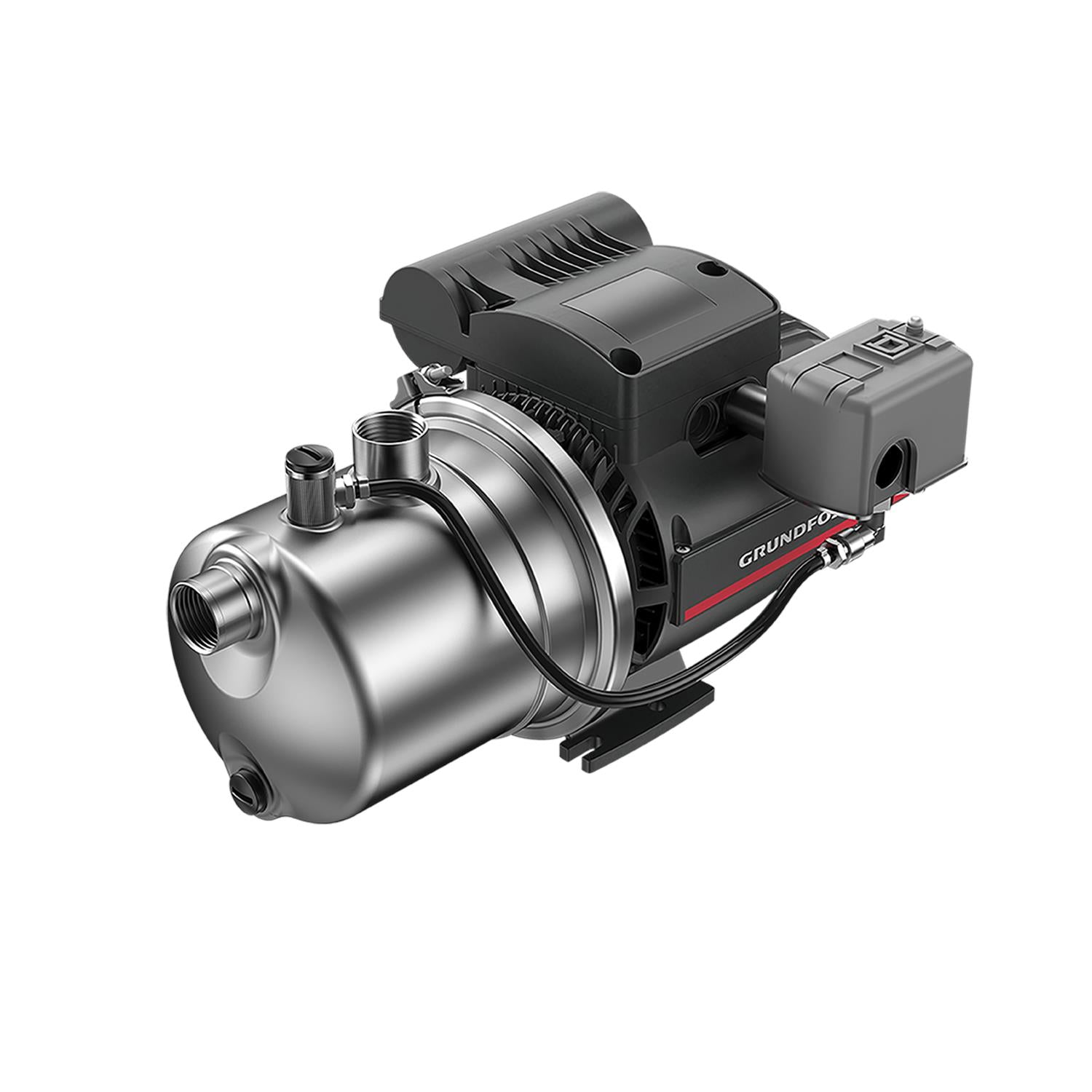

Grundfos 99463941 - JP PS 16 10 187
Roll over image to zoom in Click on image to zoom
Grundfos 99463941 - JP PS 16 10 187
Grundfos Pumps & Systems

Grundfos 99463941 - JP PS 16 10 187

GRUNDFOSSKU: 99463941
Price:
$900.48

Typically In Stock – standard inventory item, typically available in 1 business days

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
JP PS 16 10 187 · Grundfos Accessory / Spare Part / Control
ACC1HP115/230V1-Phase60 HzIP44Composite

The Grundfos 99463941 (JP PS 16 10 187) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 22US gpm at 180.5ft. Rated 115/230V, 1-Phase, 60 Hz. Applications include Residential groundwater intake, Residential rainwater harvesting, Residential water pressure boosting.

Power
1HP
Voltage
115/230V
Phase
1-Phase
Max Flow
22US gpm
Max Head
180.5ft
Max Pressure
PN 6bar
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — JP PS 16 10 187
Series: ACC
Model Code: JP PS 16 10 187
Impeller Material: Composite
Housing Material: Stainless steel
Shaft Seal: BBVP
Flange Rating: PN 6
Technical Specifications
Model Number 99463941
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 1HP
Voltage 115/230V
Phase 1-Phase
Frequency 60 Hz
Full Load Current 13,8 / 7,1A
Insulation Class F
Protection Class (IP) IP44
Nominal Flow 22US gpm
Nominal Head 180.5ft
Max Operating Pressure PN 6bar
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Inlet Connection 1inch
Outlet Connection 1inch
Pipe Pressure Rating PN 6
Pipe Standard ANSI B1.20.1
Impeller Material Composite
Housing Material Stainless steel
Shaft Seal BBVP
Approvals / Certifications CSA, cULus
Applications
Residential groundwater intake
Residential rainwater harvesting
Residential water pressure boosting
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 115/230V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — JP PS 16 10 187
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 99463941 · JP PS 16 10 187Authorized Grundfos Distributor · pump-stop.com
Approvals
CSA,cULus
Capacitor size - run
80 µF/250 V
Code for shaft seal
BBVP
Connection
PN 6
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP44
Frequency
60 Hz
Gross weight
76.3 lb
Housing
Stainless steel
Impeller
Composite
Insulation
F
Insulation class (IEC 85)
F
IP Class
IP44
Length of cable
4.92 ft
Liquid max temp
104°F
Liquid temperature range
32 .. 104 °F
Material code
A
Maximum head
190.3 ft
Maximum operating pressure
PN 6 bar
n rpm
F
Net weight
68.6 lb
P2 kW
0.992 HP
Phase
1
Pipe connection
Product name:JP PS 16 10 187
Pipe connection standard
ANSI B1.20.1
Power input P1
1480 W
Power plug
NONE
Pressure rating for connection
PN 6
Pump housing
Stainless steel
Pump version
A
Pumped liquid
Water
Range of ambient temperature
32 .. 104 °F
Rated current
13.8 / 7.1 A
Rated flow
22 US gpm
Rated head
180.5 ft
Rated power - P2
0.992 HP
Rated voltage
1 x 115/230 V
Selected liquid temperature
68 °F
Shaft
Product name:JP PS 16 10 187
Shaft seal
BBVP
Standard
ANSI B1.20.1
Type of inlet connection
NPT(F)
Type of outlet connection
NPT(F)
Version
A
