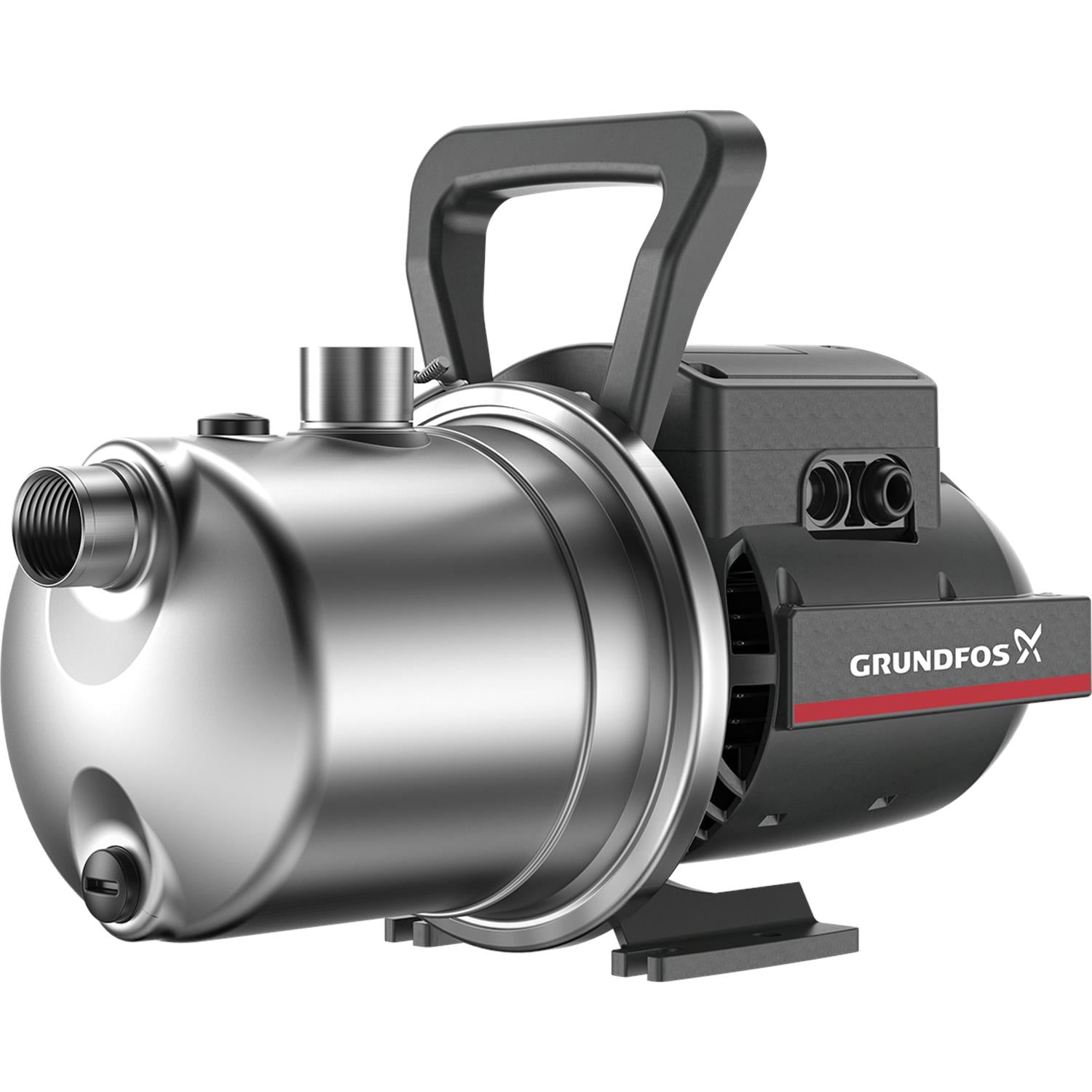

Grundfos 99458824 - JP 4-47
Roll over image to zoom in Click on image to zoom
Grundfos 99458824 - JP 4-47
Grundfos Pumps & Systems

Grundfos 99458824 - JP 4-47

GRUNDFOSSKU: 99458824

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
JP 4-47 · Grundfos Accessory / Spare Part / Control
ACC0.75HP220-240V1-Phase50 HzIP44Composite

The Grundfos 99458824 (JP 4-47) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 17.6US gpm at 134.5ft. Rated 220-240V, 1-Phase, 50 Hz. Applications include Residential groundwater intake.

Power
0.75HP
Voltage
220-240V
Phase
1-Phase
Max Flow
17.6US gpm
Max Head
134.5ft
Max Pressure
87.02psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — JP 4-47
Series: ACC
Model Code: JP 4-47
Impeller Material: Composite
Housing Material: Stainless steel
Shaft Seal: BBVP
Flange Rating: PN 6
Technical Specifications
Model Number 99458824
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Power 0.75HP
Voltage 220-240V
Phase 1-Phase
Frequency 50 Hz
Motor Speed 2800rpm
Full Load Current 3.9A
Insulation Class F
Protection Class (IP) IP44
Nominal Flow 17.6US gpm
Nominal Head 134.5ft
Max Operating Pressure 87.02psi
Max Fluid Temperature 104°F
Max Ambient Temperature 104°F
Inlet Connection G1
Outlet Connection G1
Pipe Pressure Rating PN 6
Pipe Standard ISO 228-1
Impeller Material Composite
Housing Material Stainless steel
Shaft Seal BBVP
Approvals / Certifications CE
Applications
Residential groundwater intake
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-240V, 1-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — JP 4-47
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 99458824 · JP 4-47Authorized Grundfos Distributor · pump-stop.com
EAN
5713829460676
Approvals
WEEE
Capacitor size - run
14 µF/450 V
Code for shaft seal
BBVP
Connection
PN 6
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP44
Environmental approvals
WEEE
Gross weight
24.3 lb
Housing
Stainless steel
Impeller
Composite
Insulation class (IEC 85)
F
Liquid temperature range
32 .. 104 °F
Mains frequency
50 Hz
Material code
S
Material Pricing Group
6
Maximum head
142.4 ft
Maximum operating pressure
6 bar
Maximum permissible inlet pressure
1 bar
Model
A
Net weight
19.8 lb
Pipe connection standard
ISO 228-1
Power 1
840 W
Power input P1
840 W
Power plug
NONE
Pressure rating for connection
PN 6
Pump housing
Stainless steel
Pump inlet
G1
Pump outlet
G1
Pumped liquid
Water
Range of ambient temperature
32 .. 104 °F
Rated current
3.9 A
Rated flow
17.6 US gpm
Rated head
54.96 ft
Rated power - P2
0.55 kW
Rated speed
2800 rpm
Rated voltage
1 x 220-240 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
68 °F
Standard
ISO 228-1
Starting current
13.2 A
Switch
on/off switch not included
