Grundfos 99369842 | IO 242 Module | I/O Extension for CU 241/CU 242 | Analog & Digital Inputs | DIN‑Rail Mount | Control Panel Accessory

GRUNDFOSSKU: 99369842

Price:
Sale price$656.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

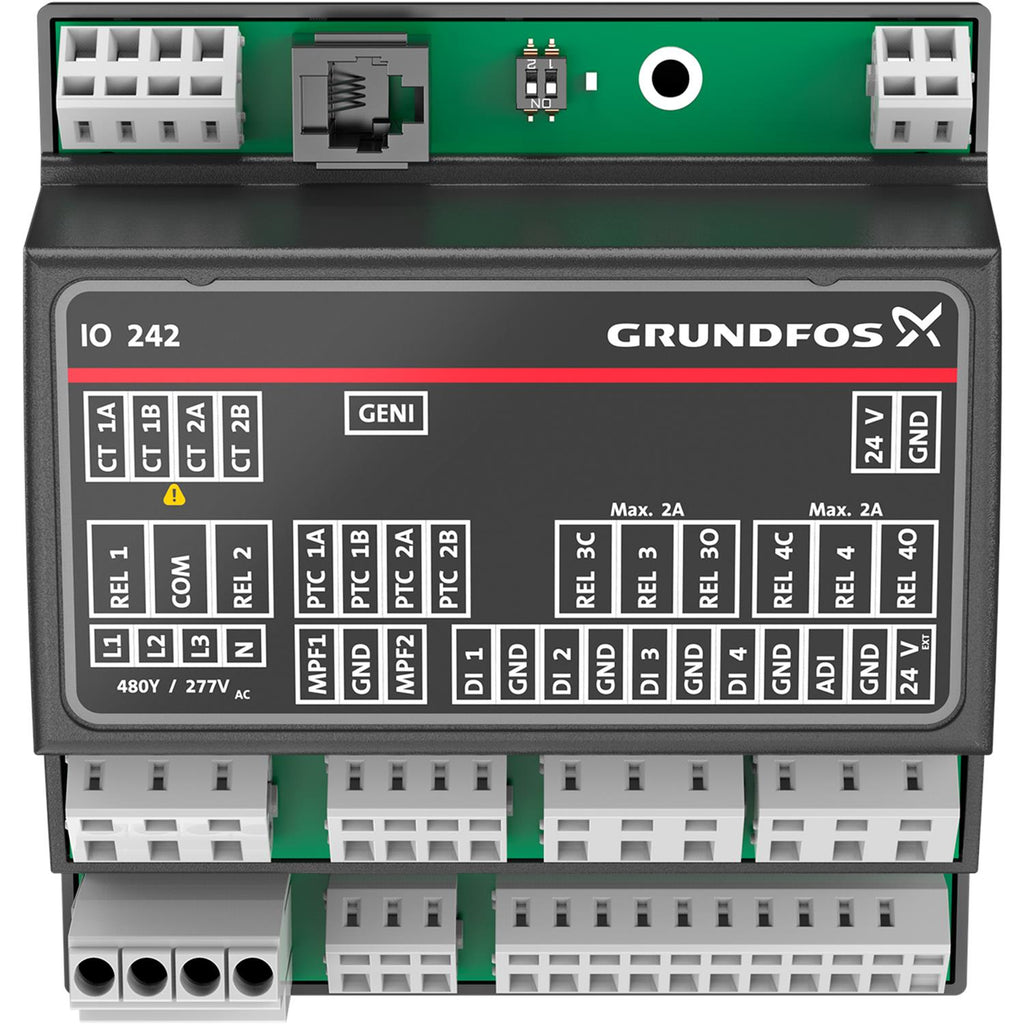

Grundfos 99369842 IO 242 module is an I/O extension designed for integration with CU 241/CU 242 control panels, providing additional analog and digital inputs for commercial and light industrial pump control systems used by technicians and service personnel.

Key features

  • DIN‑rail mountable I/O extension for streamlined panel installation
  • Supports analog and digital inputs as indicated by Io and Io 242 accessory tags
  • Expands control capacity to simplify system monitoring and maintenance

Applications

Suitable for panel-mounted pump controllers, system upgrades, OEM control cabinets, and field service retrofit projects where additional sensor or signal inputs are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99369842

EAN 5713827990007
Enclosure class (IEC 34-5) IP20
Gross weight 1.04 lb
Material Pricing Group 94
Net weight 0.49 lb
Power 1 10 W
Power input P1 10 W
Range of ambient temperature -22 .. 158 °F
Rated voltage dc 24 V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Relative humidity 5- 95 %
Danish VVS No. 391371452

Motor Curves

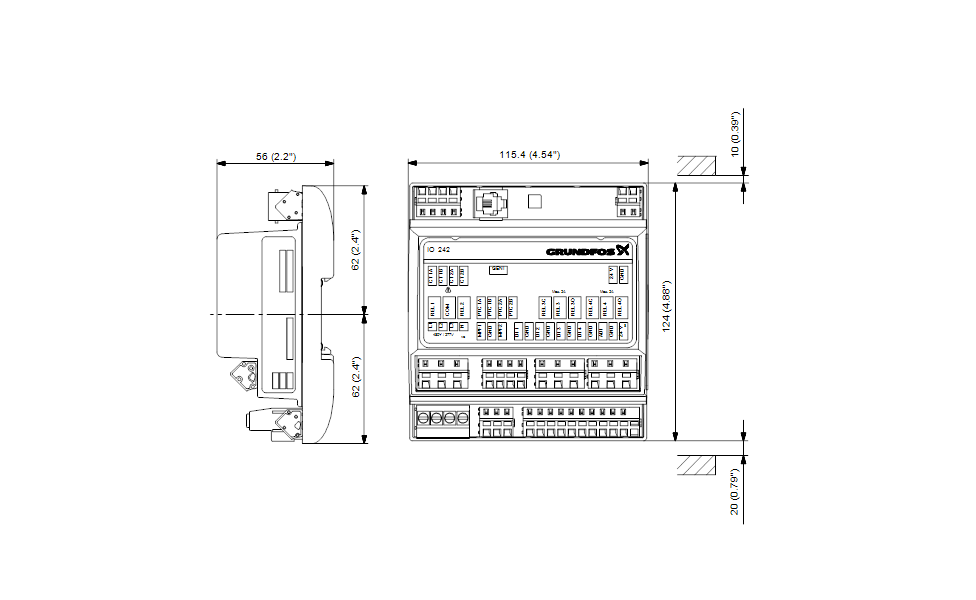

Dimensional Drawing
