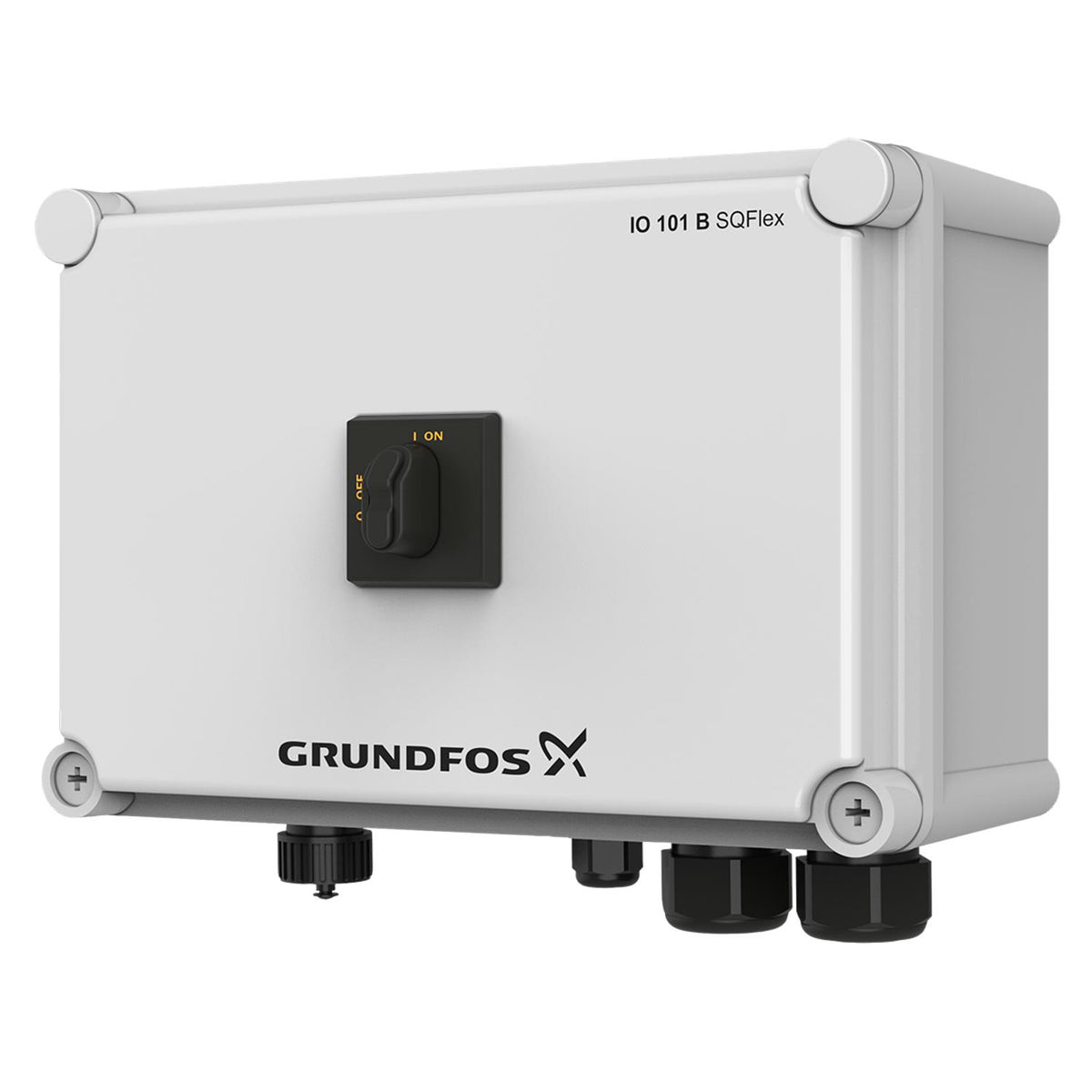

Grundfos 92622786 - IO 101 B

GrundfosSKU: 92622786

Price:
Sale price$1,825.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
IO 101 B · Grundfos Accessory / Spare Part / Control
ACC230 VAC - 15%/+10%V1-Phase50, 60 HzIP55

The Grundfos 92622786 (IO 101 B) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 230 VAC - 15%/+10%V, 1-Phase, 50, 60 Hz. Applications include Rotor & spray irrigation, Livestock & Wildlife Watering, Solar boosting and water supply solutions and more.

Voltage
230 VAC - 15%/+10%V
Phase
1-Phase
Frequency
50, 60 Hz
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — IO 101 B
Series: ACC
Model Code: IO 101 B
Technical Specifications
Model Number 92622786
Product Series ACC
Series Description Grundfos Accessory / Spare Part / Control
Voltage 230 VAC - 15%/+10%V
Phase 1-Phase
Frequency 50, 60 Hz
Protection Class (IP) IP55
Max Ambient Temperature 113°F
Min Ambient Temperature -22°F
Approvals / Certifications CE, EAC, RCM
Applications
Rotor & spray irrigation
Livestock & Wildlife Watering
Solar boosting and water supply solutions
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230 VAC - 15%/+10%V, 1-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature per nameplate or max ambient temperature 113°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — IO 101 B
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715117220740
Approvals CE
Enclosure class (IEC 34-5) IP55
Gross weight 8.51 lb
Mains frequency 50 / 60 Hz
Material Pricing Group 17
Net weight 4.86 lb
Product family IO 101, IO 102
Range of ambient temperature -22 .. 113 °F
Rated voltage 1 x 230 VAC - 15%/+10% V
Real Time 1 Available on 10/12/2023 Plant: Allentown  Update with real time availability and Net price

Motor Curves

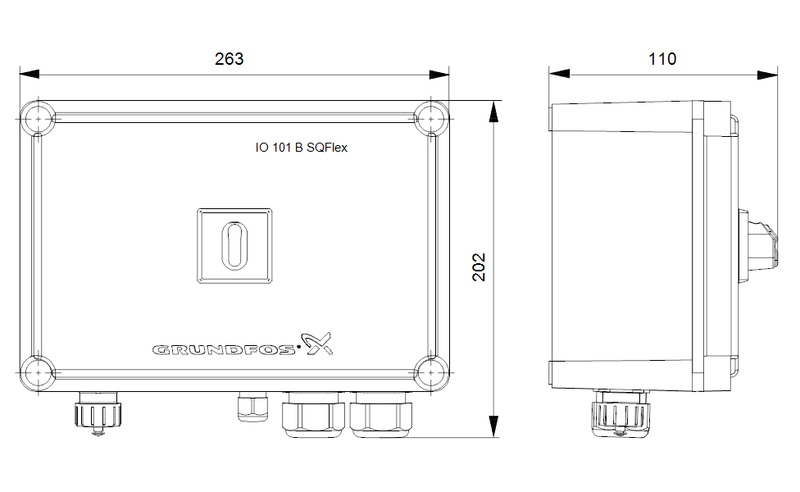

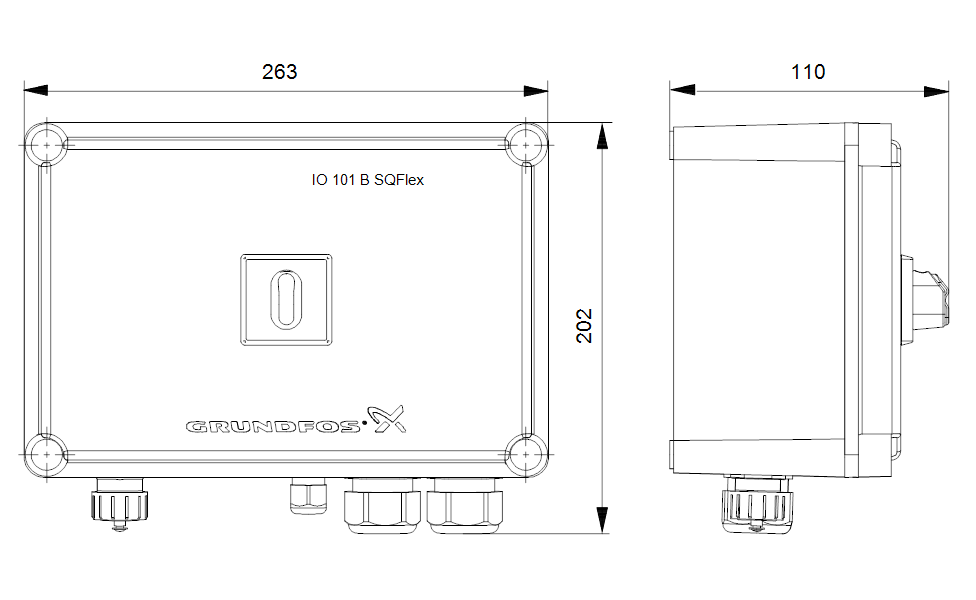

Dimensional Drawing

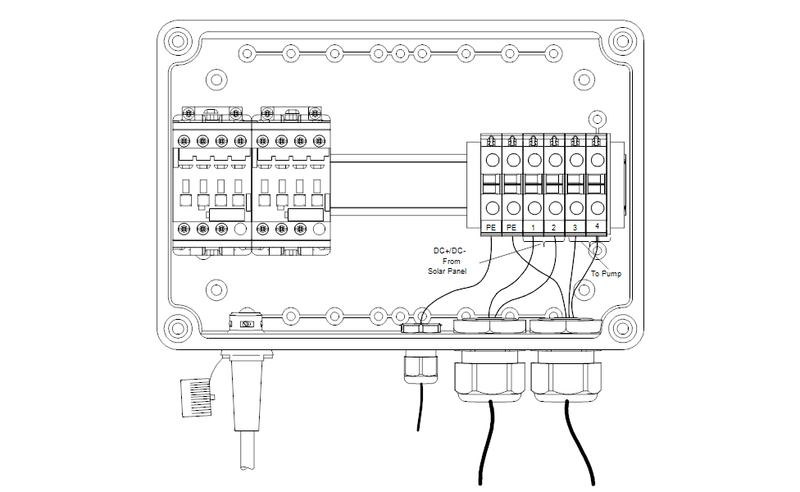

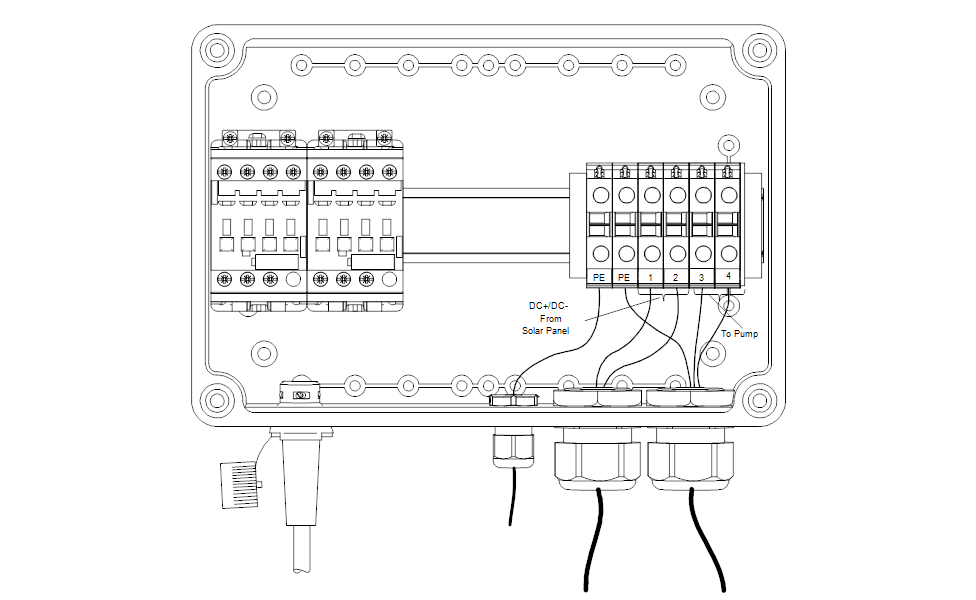

DWiring Diagram
