Grundfos 95730976 - Injection unit
Grundfos 95730976 - Injection unit
Grundfos 95730976 - Injection unit
Grundfos 95730976 - Injection unit

Grundfos 95730976 - Injection unit

This item ships free!
GRUNDFOSSKU: 95730976
Price:
$997.22
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Injection unit | Injection units connect the dosing line with the processline. They ensure a minimum counterpressure of0. 7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal springHot-injection units with ball valve can be used for directinjection of dosing liquid into processes with atemperature of up to 120 °C. In addition to standard injection units they include: Injection pipe in stainless steel.
Ball valve in stainless steel installed between the injection pipe andthe cooling pipe Bendable cooling pipe, stainless steel, length 1 m.

EAN 5710626525553
Applications Accessories
Applicat. typ Injection to hot water stream
Capacity 60 l/h
Connection 45081
Gasket PTFE
Housing PVDF
Material Pricing Group 67
Max. capacity 1 60 l/h
Maximum operating pressure 16 bar
Opening pressur 0.8 bar
Pipework connection 45081
Product family Injection units
Pump connection G5/8
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Valve ball Ceramic
Version Hot injection valve

Motor Curves

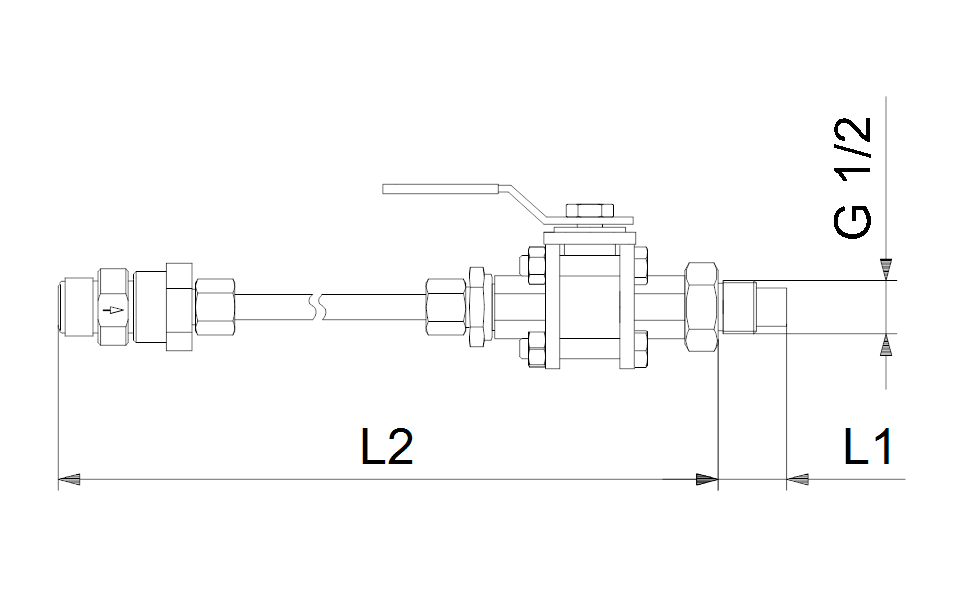

Dimensional Drawing
