Grundfos 95730964 - Injection unit
Grundfos 95730964 - Injection unit
Grundfos 95730964 - Injection unit
Grundfos 95730964 - Injection unit

Grundfos 95730964 - Injection unit

This item ships free!
GRUNDFOSSKU: 95730964
Price:
$277.78
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Injection unit | Injection units connect the dosing line with the processline. They ensure a minimum counterpressure of0. 7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal spring. Injection units with lip valve are typically used to addsodium hypochlorite solution to water with a highcarbonate content. The FKM lip preventscrystallization and blocking caused by alkali carbonatereactions at the point of injection.

EAN 5710626528141
Applications Accessories
Applicat. typ Hypochloride injection
Capacity 60 l/h
Connection 45081
Gasket FKM
Housing PVC
Material Pricing Group 67
Max. capacity 1 60 l/h
Maximum operating pressure 16 bar
Opening pressur 0.8 bar
Pipework connection 45081
Product family Injection units
Pump connection G5/8
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Valve ball Ceramic
Version Lip valve

Motor Curves

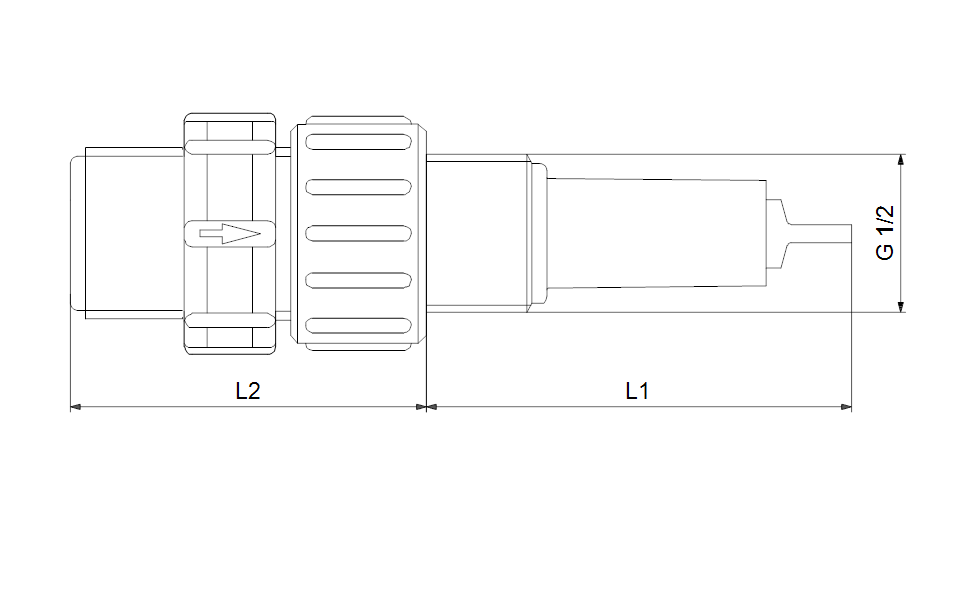

Dimensional Drawing
