Grundfos 95730932 - Injection unit
Grundfos 95730932 - Injection unit
Grundfos 95730932 - Injection unit
Grundfos 95730932 - Injection unit

Grundfos 95730932 - Injection unit

This item ships free!
GRUNDFOSSKU: 95730932
Price:
$283.33
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Injection unit | Injection units connect the dosing line with the processline. They ensure a minimum counterpressure of0. 7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal spring. The injection pipe of PP, PVC and PVDF versions can be shortened.

EAN 5710626523788
Applications Accessories
Applicat. typ General use
Capacity 60 l/h
Connection 45081
Gasket PTFE
Housing PVDF
Material Pricing Group 67
Max. capacity 1 60 l/h
Maximum operating pressure 16 bar
Opening pressur 0.8 bar
Pipework connection 45081
Product family Injection units
Pump connection G5/8
Real Time 1 Available on 10/13/2023 Plant: Fresno  Update with real time availability and Net price
Valve ball Ceramic
Version Standard version

Motor Curves

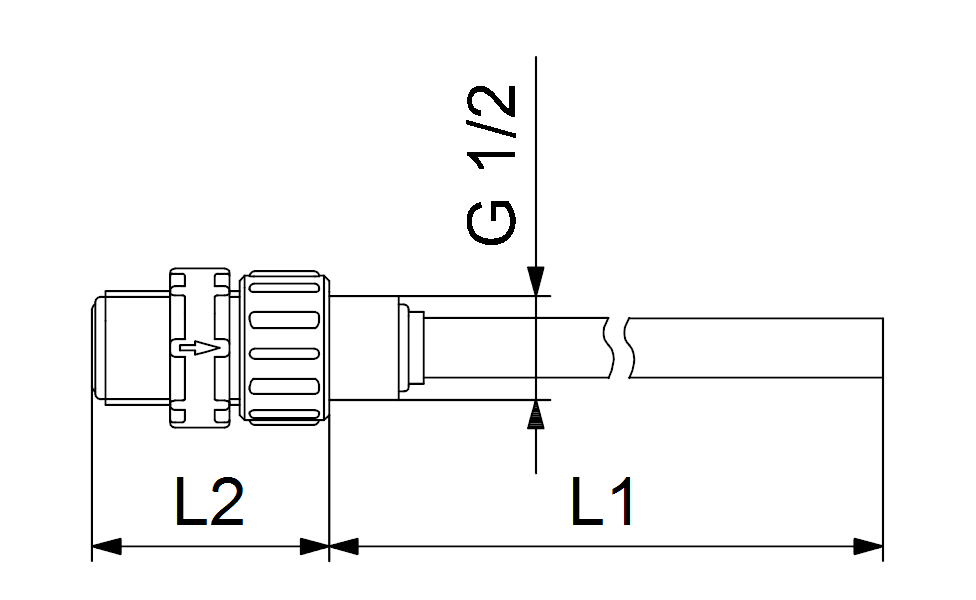

Dimensional Drawing
