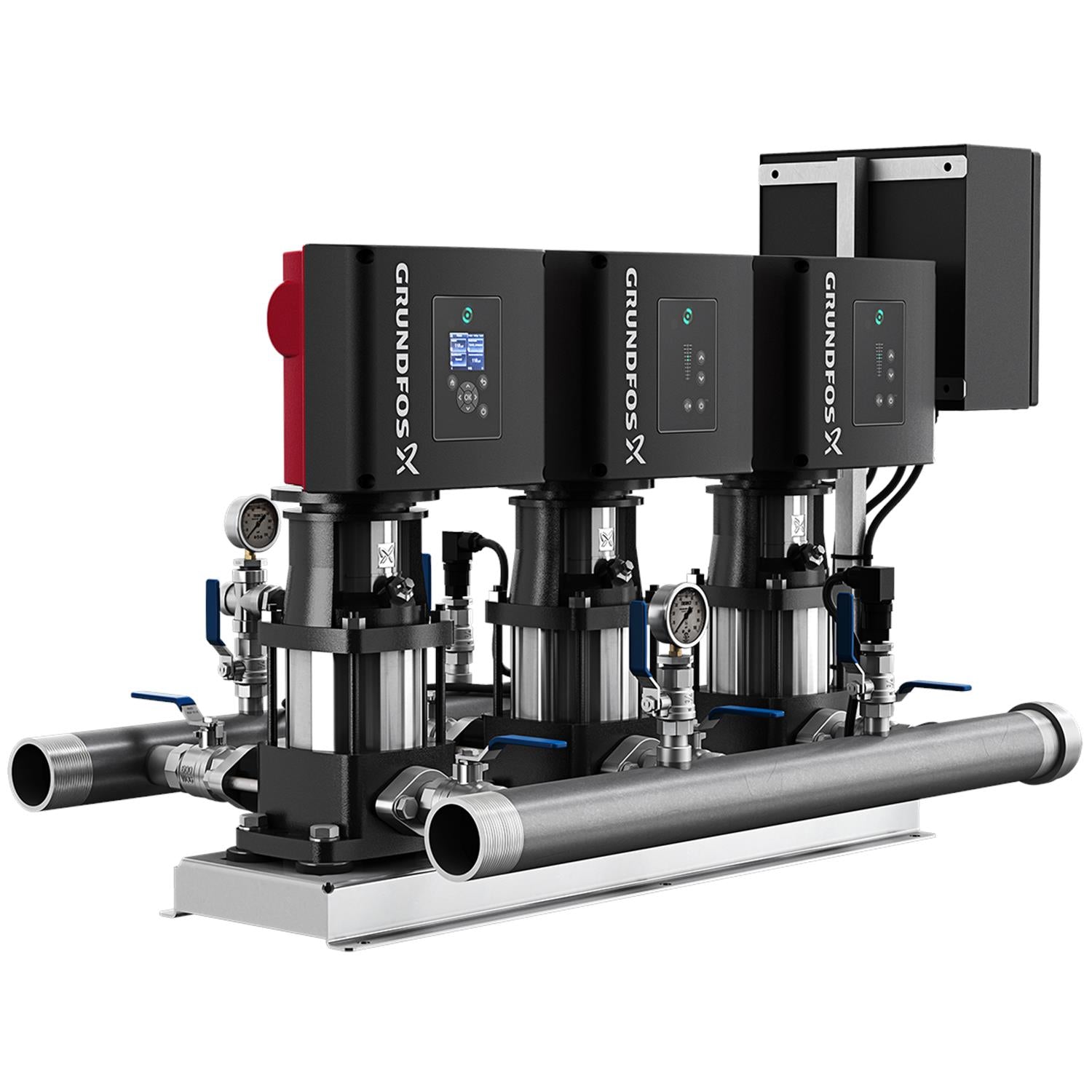

Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A

Grundfos 99334685 - Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A

Save $2,130.48
GRUNDFOSSKU: 99334685
Price:
$15,623.52 $17,754.00
Build to order – stocked components, typically available in 21 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A | A GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 speed controlled CR pumps (CRE pumps). Each CRE pump is equipped with an integrated variable frequency drive motor (MLE motor).

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 140 °F
Net weight 277.0 lb
Gross weight 500.0 lb
Rated current 20.1 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 3 CRE 3-9 UJ A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 46.2 US gpm
Number of pumps 3
Maximum head 280.9 ft
Housing Cast iron
Number of phases of main pump 1
Rated head 206.7 ft
Type CRE 3-9
Pump housing Cast iron
Pump 1
Maximum permissible inlet pressure 145.04 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
