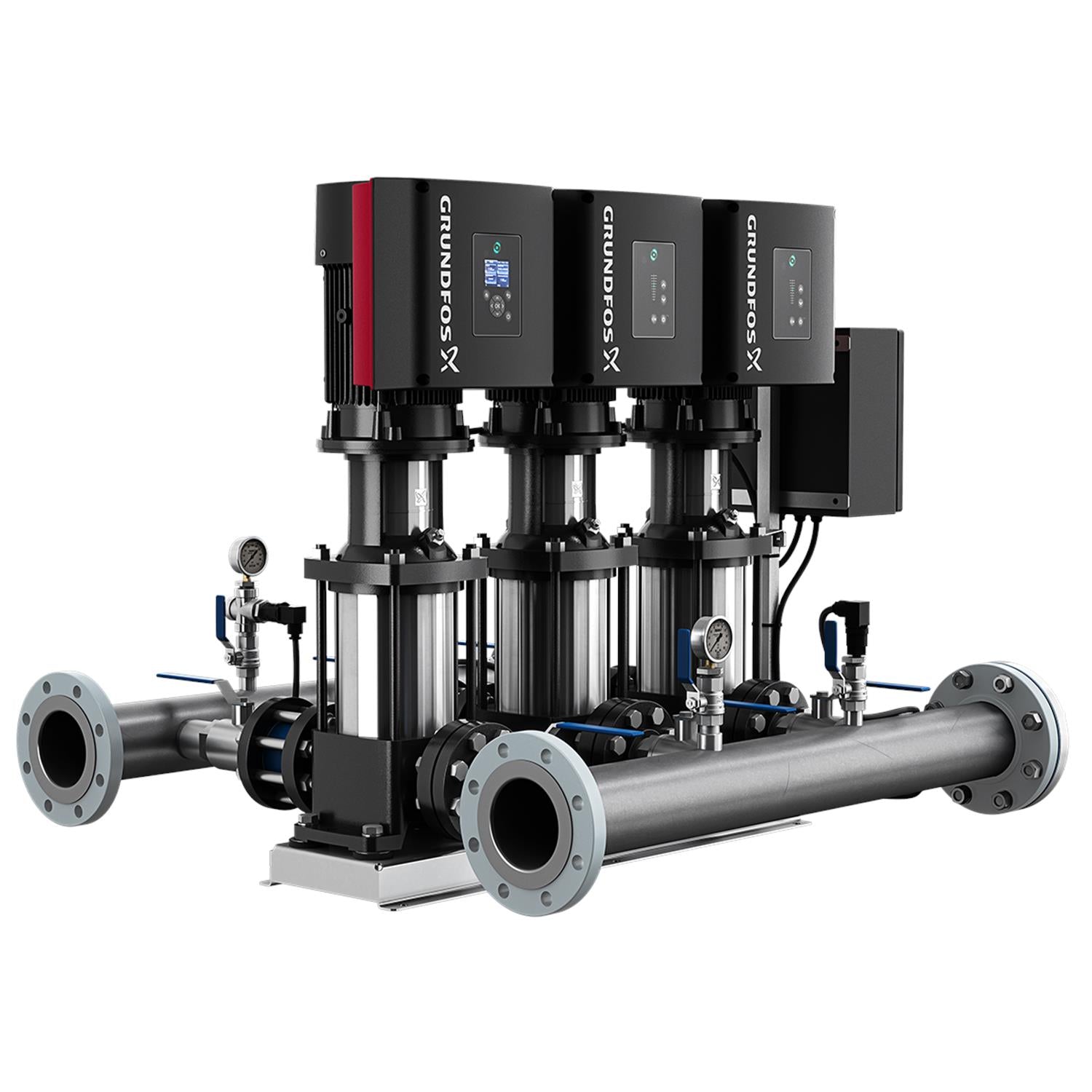

Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A

Grundfos 99334052 - Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A

Save $4,058.40
GRUNDFOSSKU: 99334052
Price:
$29,761.60 $33,820.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A | A GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 speed controlled CR pumps (CRE pumps). Each CRE pump is equipped with an integrated variable frequency drive motor (MLE motor).

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 756.0 lb
Gross weight 1040.0 lb
Rated current 26.7 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 3 CRE 15-3 UL A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 271 US gpm
Number of pumps 3
Maximum head 201.1 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 152.9 ft
Type CRE 15-3
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 145.04 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
