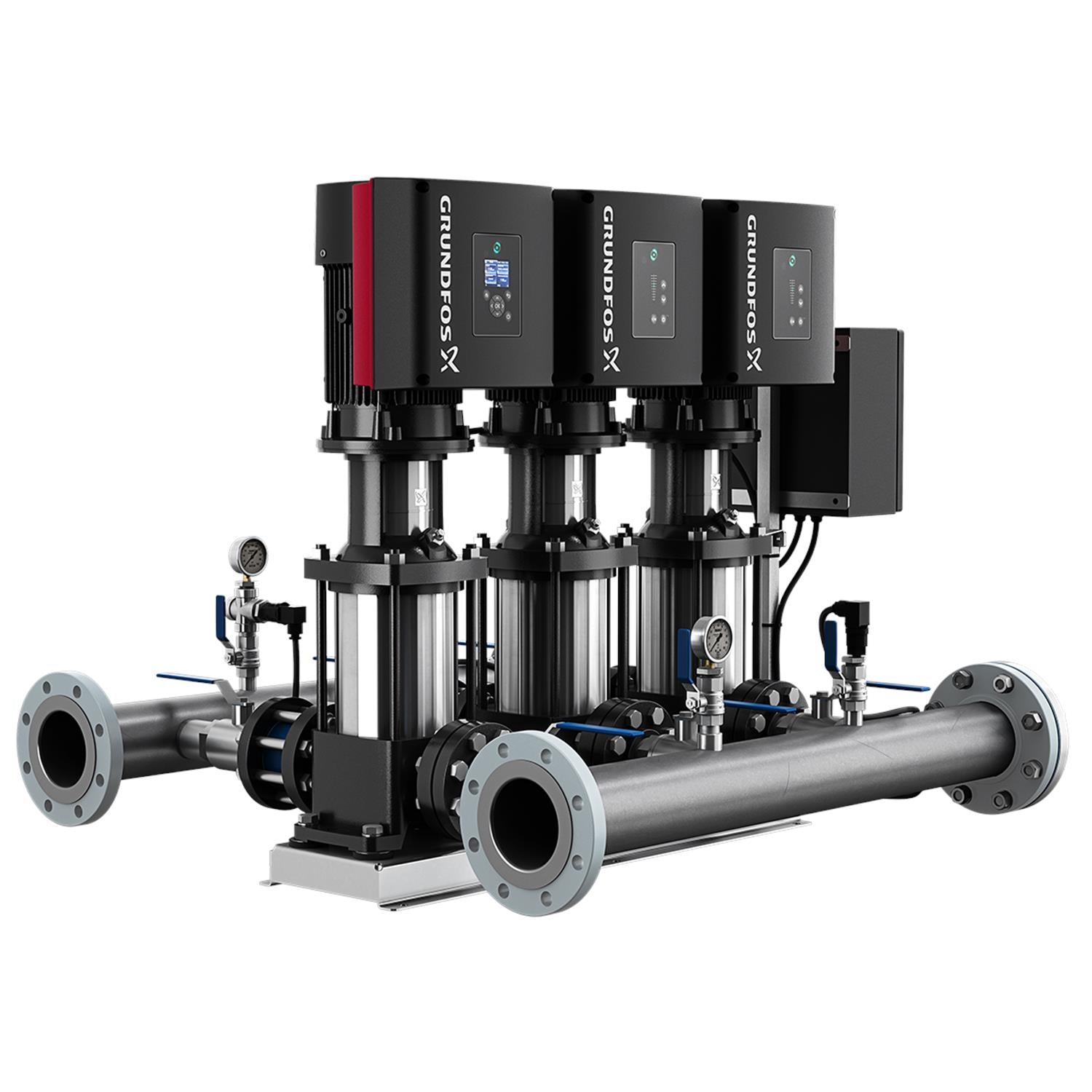

Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A

Grundfos 99445659 - Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A

Save $3,664.20
GRUNDFOSSKU: 99445659
Price:
$26,870.80 $30,535.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A | A GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 speed controlled CR pumps (CRE pumps). Each CRE pump is equipped with an integrated variable frequency drive motor (MLE motor).

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 769.0 lb
Gross weight 1050.0 lb
Rated current 41.4 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 3 CRE 15-2 UK A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 271 US gpm
Number of pumps 3
Maximum head 136.2 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 103.7 ft
Type CRE 15-2
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 116.03 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
