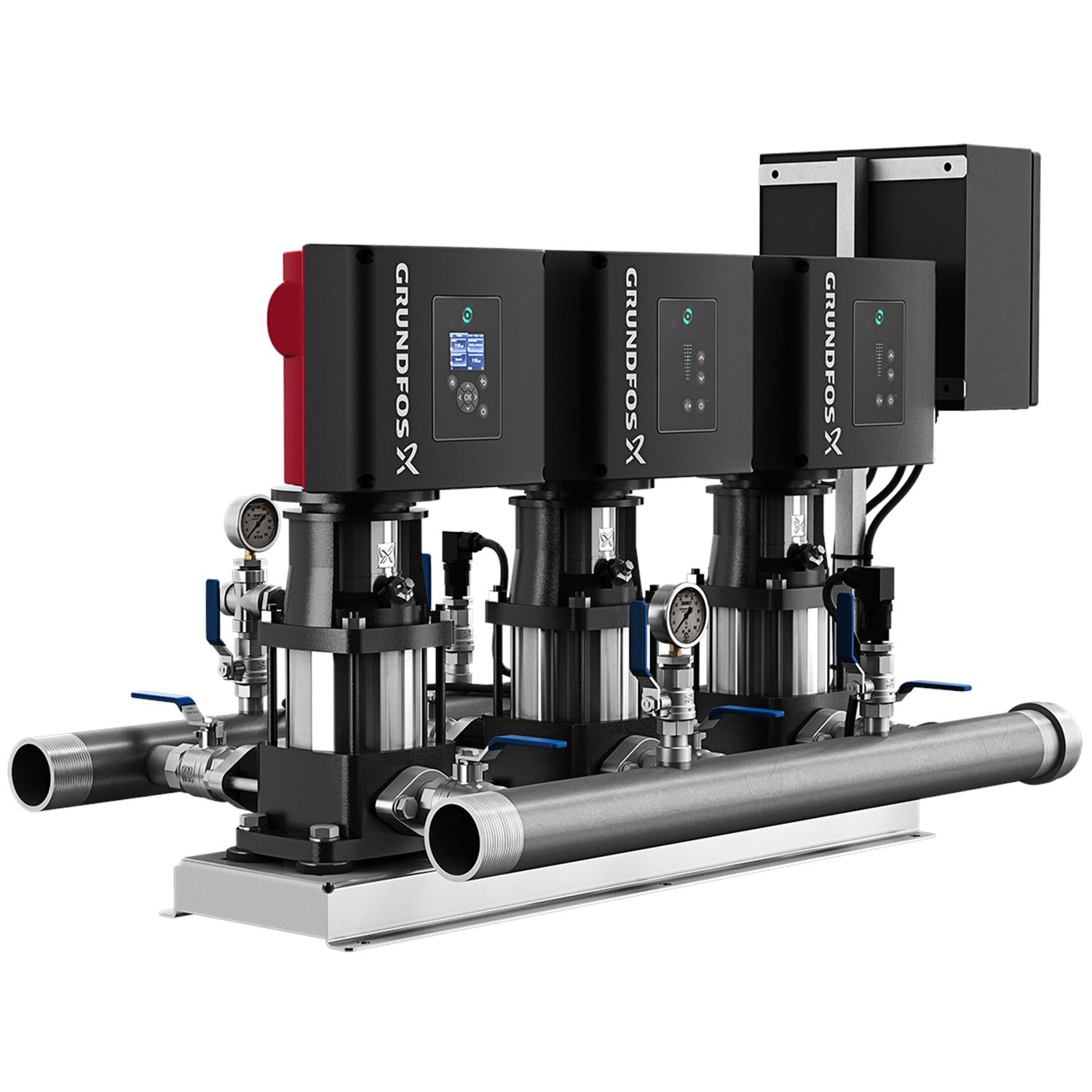

Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A

Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A

Save $3,358.56
GRUNDFOSSKU: 99334045
Price:
$24,629.44 $27,988.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99334045 - Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 622.0 lb
Gross weight 845.0 lb
Rated current 11.4 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 3 CRE 10-4 UL A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 160 US gpm
Number of pumps 3
Maximum head 192.9 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 150.3 ft
Type CRE 10-4
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 116.03 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
