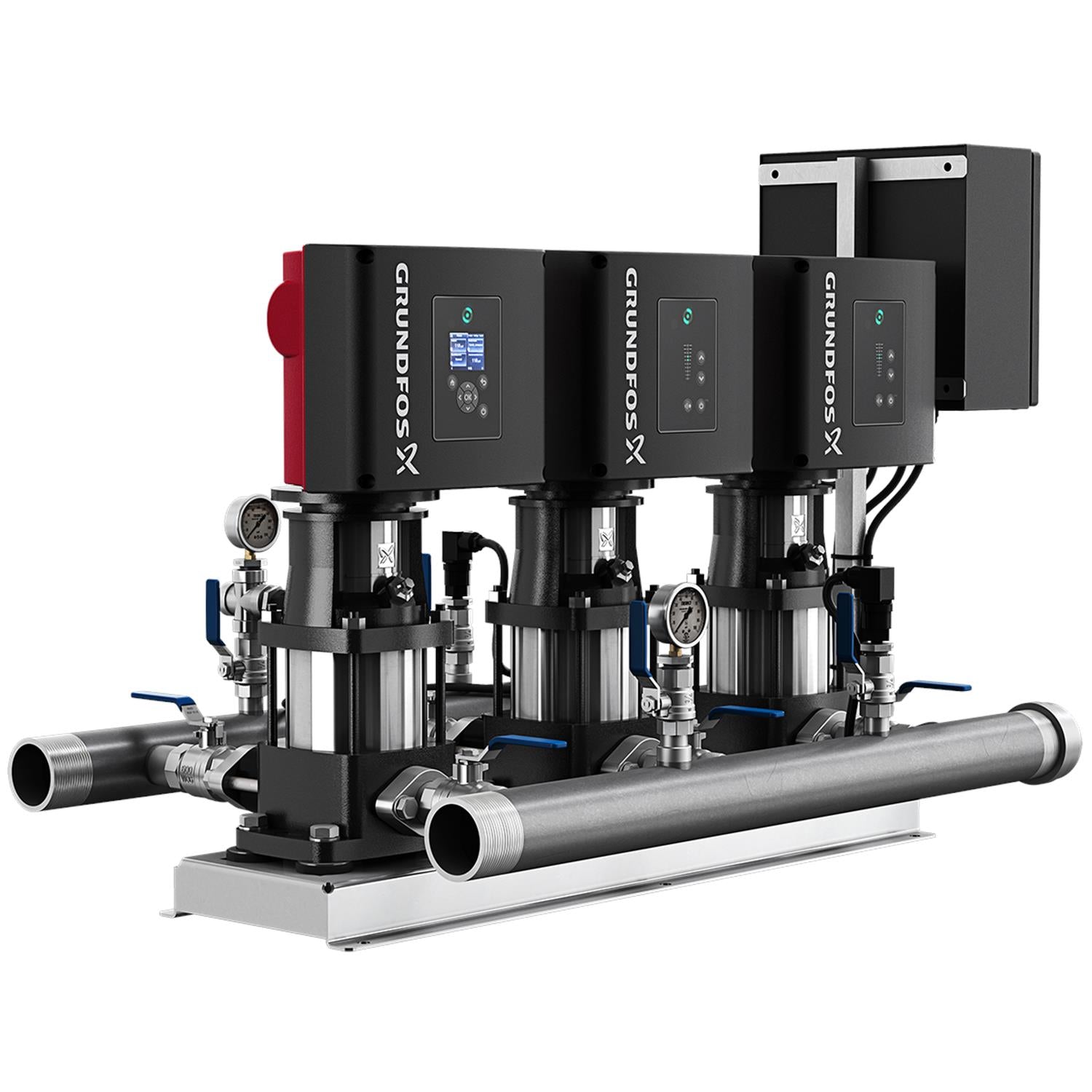

Grundfos 99334689 - Hydro Multi-E 3 CRE 10-2 UJ A-A-A-U-A
Grundfos 99334689 - Hydro Multi-E 3 CRE 10-2 UJ A-A-A-U-A

Grundfos 99334689 - Hydro Multi-E 3 CRE 10-2 UJ A-A-A-U-A

Save $2,493.36
GRUNDFOSSKU: 99334689
Price:
$18,284.64 $20,778.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Hydro Multi-E 3 CRE 10-2 UJ A-A-A-U-A | A GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 speed controlled CR pumps (CRE pumps). Each CRE pump is equipped with an integrated variable frequency drive motor (MLE motor).

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 496.0 lb
Gross weight 719.0 lb
Rated current 20.1 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 3 CRE 10-2 UJ A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 160 US gpm
Number of pumps 3
Maximum head 95.15 ft
Housing Cast iron
Number of phases of main pump 1
Rated head 70.9 ft
Type CRE 10-2
Pump housing Cast iron
Pump 1
Maximum permissible inlet pressure 116.03 psi

Motor Curves
