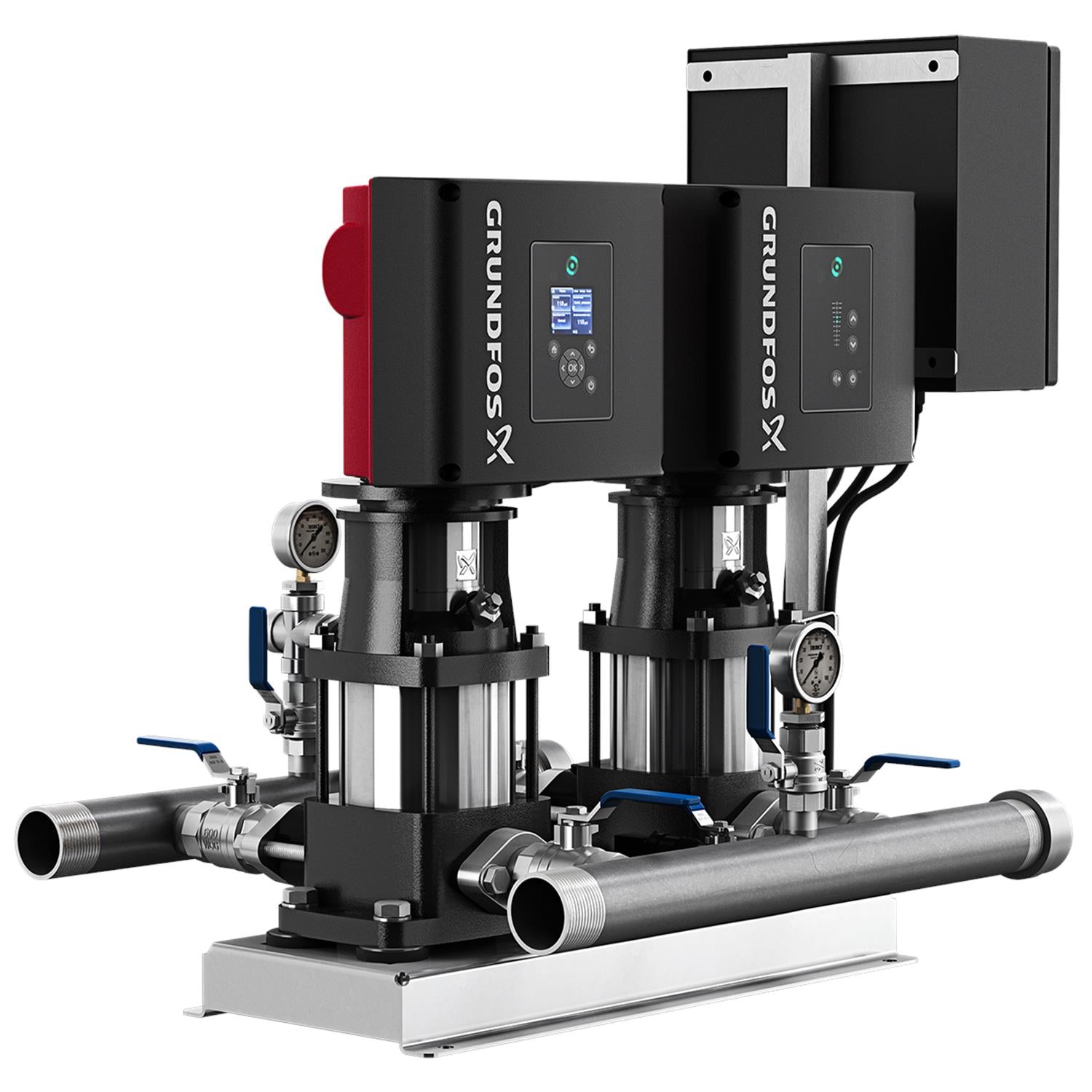

Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A

Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A

Save $1,751.88
GRUNDFOSSKU: 99334063
Price:
$12,847.12 $14,599.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99334063 - Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 1 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 140 °F
Net weight 205.0 lb
Gross weight 297.0 lb
Rated current 18.2 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 2 CRE 5-6 UJ A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 60.8 US gpm
Number of pumps 2
Maximum head 209 ft
Housing Cast iron
Number of phases of main pump 1
Rated head 153.2 ft
Type CRE 5-6
Pump housing Cast iron
Pump 1
Maximum permissible inlet pressure 145.04 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
