Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A

Grundfos 99334027 - Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A

Save $2,542.56
GRUNDFOSSKU: 99334027
Price:
$18,645.44 $21,188.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

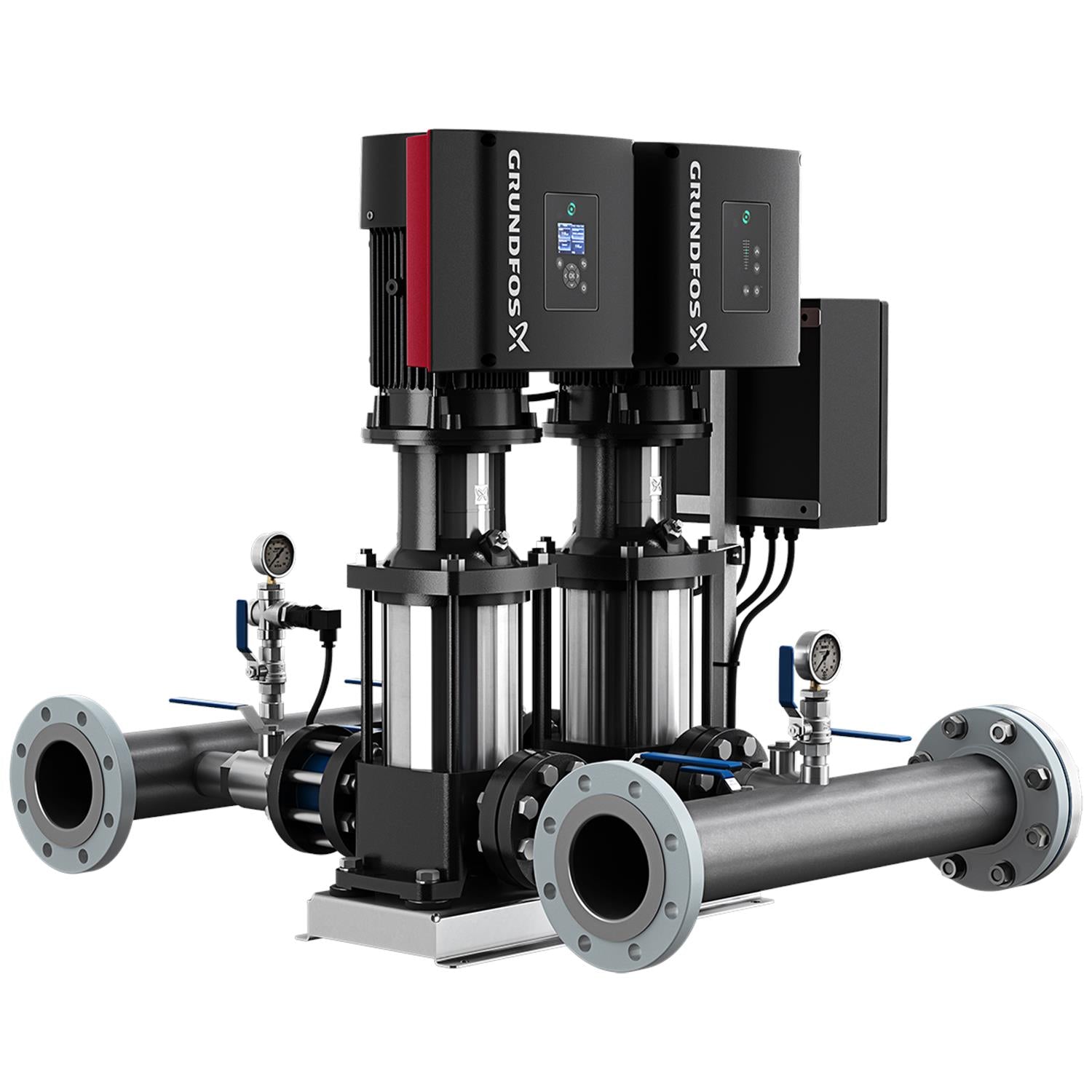

Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A | A GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 speed controlled CR pumps (CRE pumps). Each CRE pump is equipped with an integrated variable frequency drive motor (MLE motor).

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 479.0 lb
Gross weight 702.0 lb
Rated current 12.2 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 2 CRE 15-2 UL A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 181 US gpm
Number of pumps 2
Maximum head 136.2 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 103.7 ft
Type CRE 15-2
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 116.03 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
