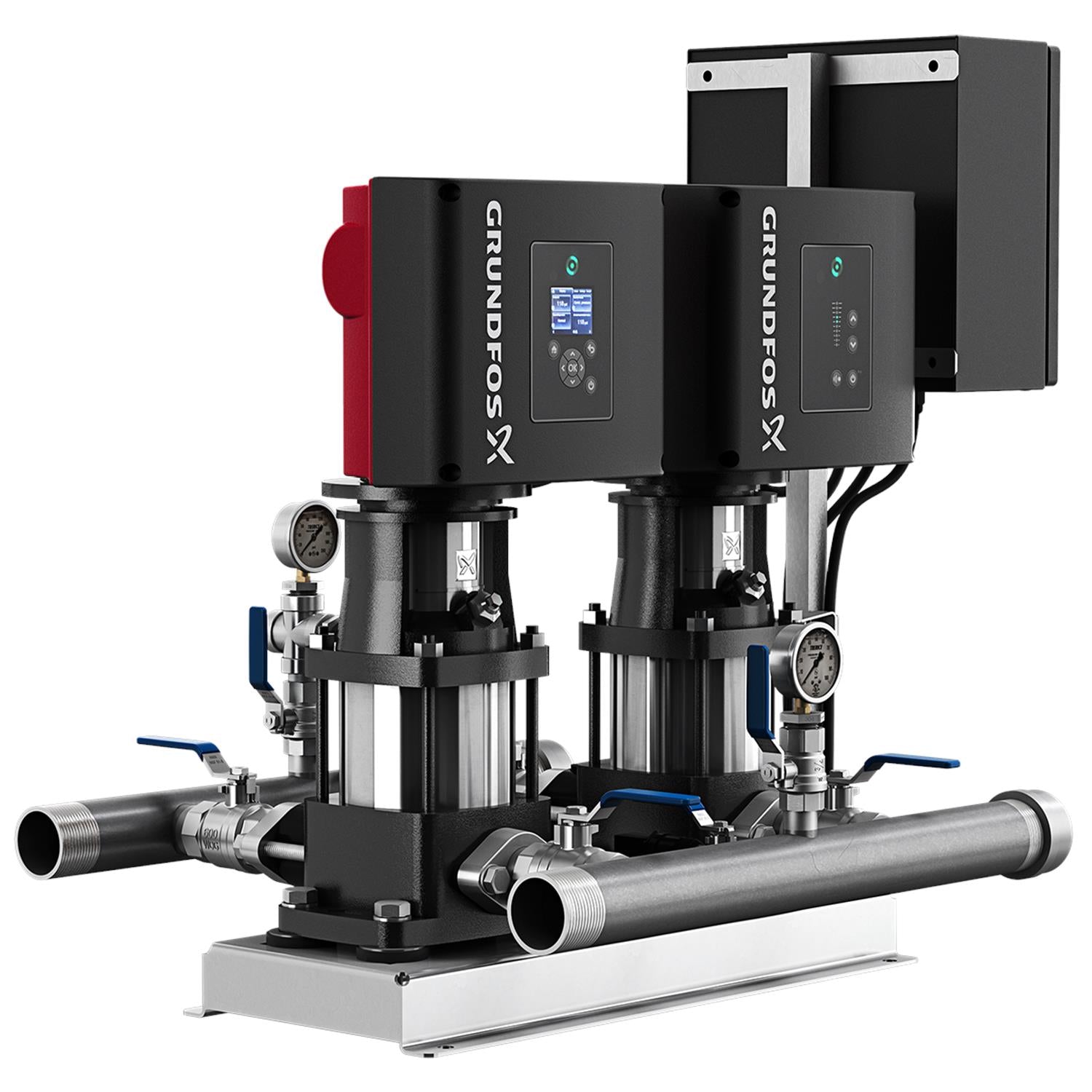

Image shown may not be actual product
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A

Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A

Save $2,456.16
GRUNDFOSSKU: 99334022
Price:
$18,011.84 $20,468.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99334022 - Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 460 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 494.0 lb
Gross weight 718.0 lb
Rated current 12.2 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 2 CRE 10-5 UL A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 107 US gpm
Number of pumps 2
Maximum head 242.1 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 191.3 ft
Type CRE 10-5
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 116.03 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
