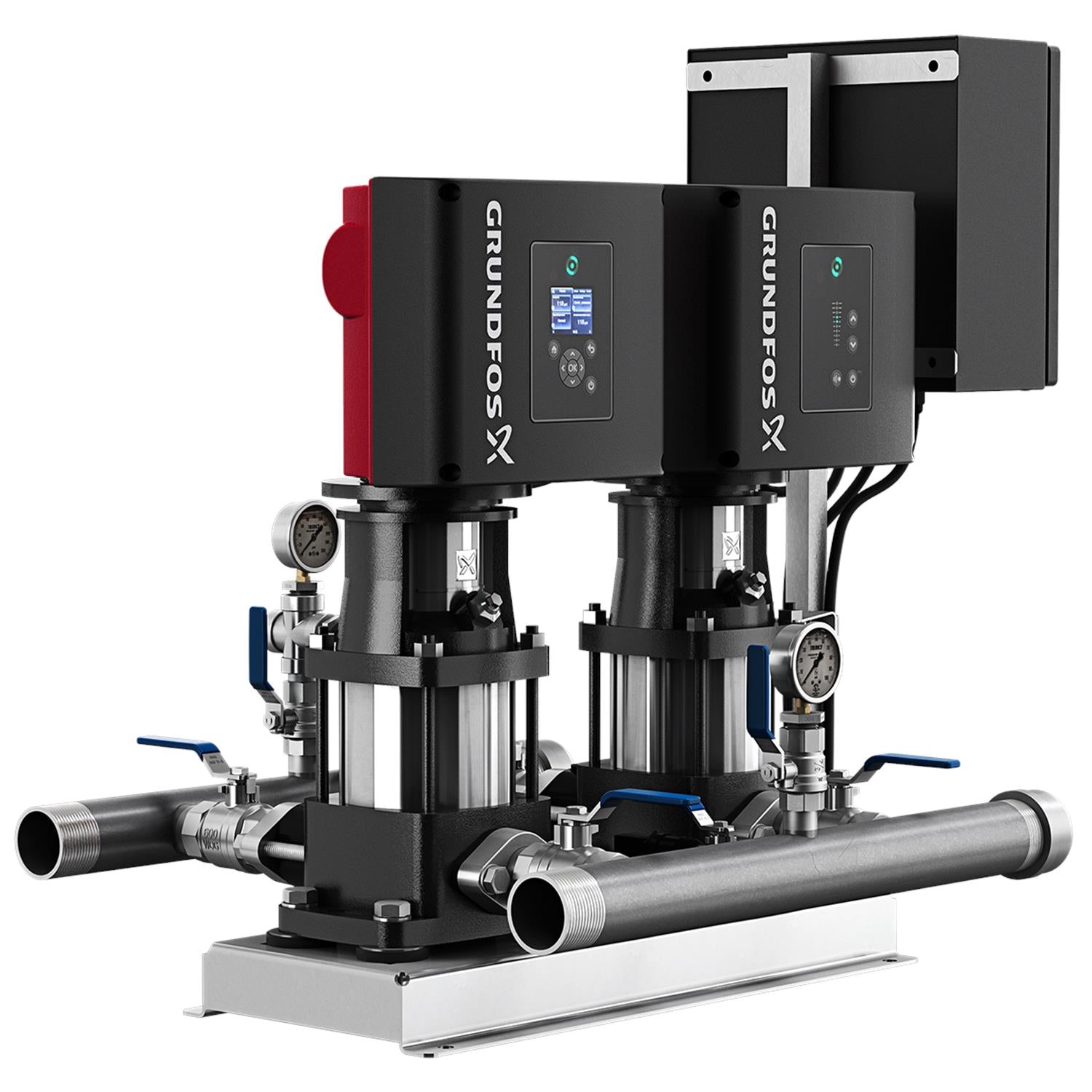

Image shown may not be actual product
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A

Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A

Save $2,792.28
GRUNDFOSSKU: 99445635
Price:
$20,476.72 $23,269.00
Build to order – stocked components,typically available in 21 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99445635 - Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 62.29 lb/ft³
Maximum operating pressure 232.06 psi
Selected liquid temperature 68 °F
Rated voltage 3 x 208-230 V
Pumped liquid Water
Liquid temperature range 32 .. 176 °F
Net weight 595.0 lb
Gross weight 880.0 lb
Rated current 40 A
Sales region Namreg
Max flow Product name:Hydro Multi-E 2 CRE 10-10 UK A-A-A-U-A
Radio interference supression IEC/CISPR 11-1B
Rated flow 107 US gpm
Number of pumps 2
Maximum head 482 ft
Housing Cast iron
Number of phases of main pump 3
Rated head 376.3 ft
Type CRE 10-10
Pump housing Cast iron
Pump 3
Maximum permissible inlet pressure 145.04 psi

Motor Curves

Dimensional Drawing

DWiring Diagram
